SM 28 Surface Mount Speaker • Installation 5
Installing the Speaker Mounting Plate
The SM 28 speaker comes with a flat mounting plate and an adapter for positioning the
speaker 10° up, down, left, or right.
• 0° mounting plate — The flat (0°) mounting plate allows the speaker to be mounted flat
on a suitable surface.
• 10° mounting adapter — The 10° mounting adapter allows the speaker to be installed
at a 10 degree angle so that the speaker can be pointed up, down, left, or right from an
elevated position by rotating the adapter.

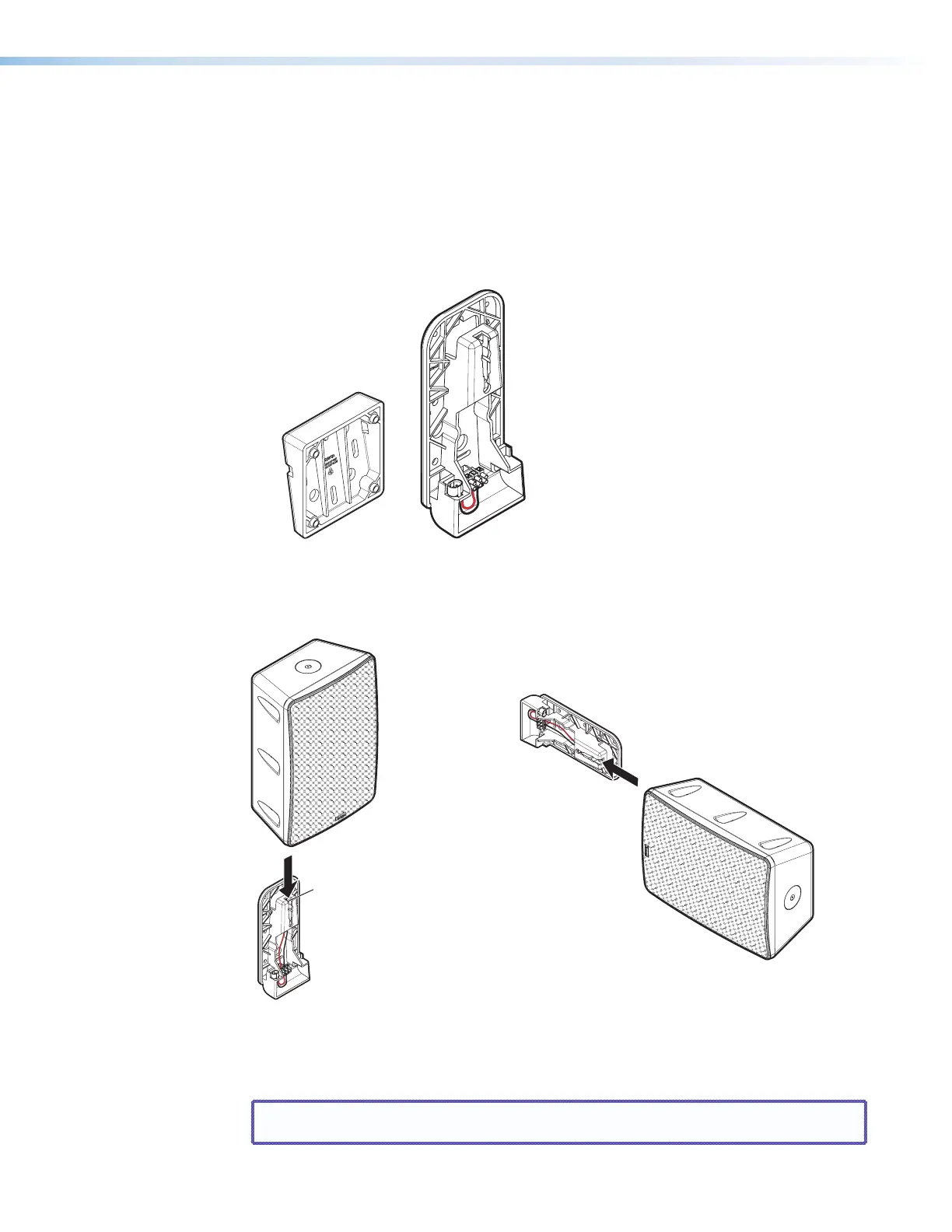

0° Mounting Plate
10° Mounting Adapter
Figure 2. Mounting Adapter and Mounting Plate
The mounting plate can be installed vertically or horizontally, as shown below.
Catch Tab
Vertical Mounting
Figure 3. Positioning the Mounting Plate
NOTE: Observe all applicable building codes and local ordinances when installing the
speaker.
Horizontal Mounting
