Network Button Panels • Hardware Features and Installation — NBP 1200C 33
Step 3: Assemble AAP, Pass-through, and Power Modules
A variety of modules allow you to populate the Cable Cubby enclosure with a combination of AAPs, cable pass-
through plates, retractors, or power modules. The NBP 1200C accommodates your choice of any two modules,
allowing you to customize the device to meet your needs.
Assemble Connectivity Modules
The NBP 1200C ships with a single connectivity bracket that can be used with either the AAP frame plate or
the cable grommet plate. Follow the steps below to assemble the connectivity modules of your choice before
mounting them into the NBP 1200C.
NOTE: After assembling the modules, proceed to Step 5: Install Modules and a Retractor Bracket on
page 35.
AAP module
The AAP plate accommodates up to three single-space AAPs. Assembly procedures are shown in the gure
below.
Secure up to three
single-space AAPs
in the AAP plate.
Secure the
AAP plate on
the connectivity
brackets using
four of the
provided #4-40
module screws.
#4-40 Nut with
Captive Washer
Insert cables through
the bottom of the
connectivity bracket.
Connect cables
to the AAPs.
1
3
2

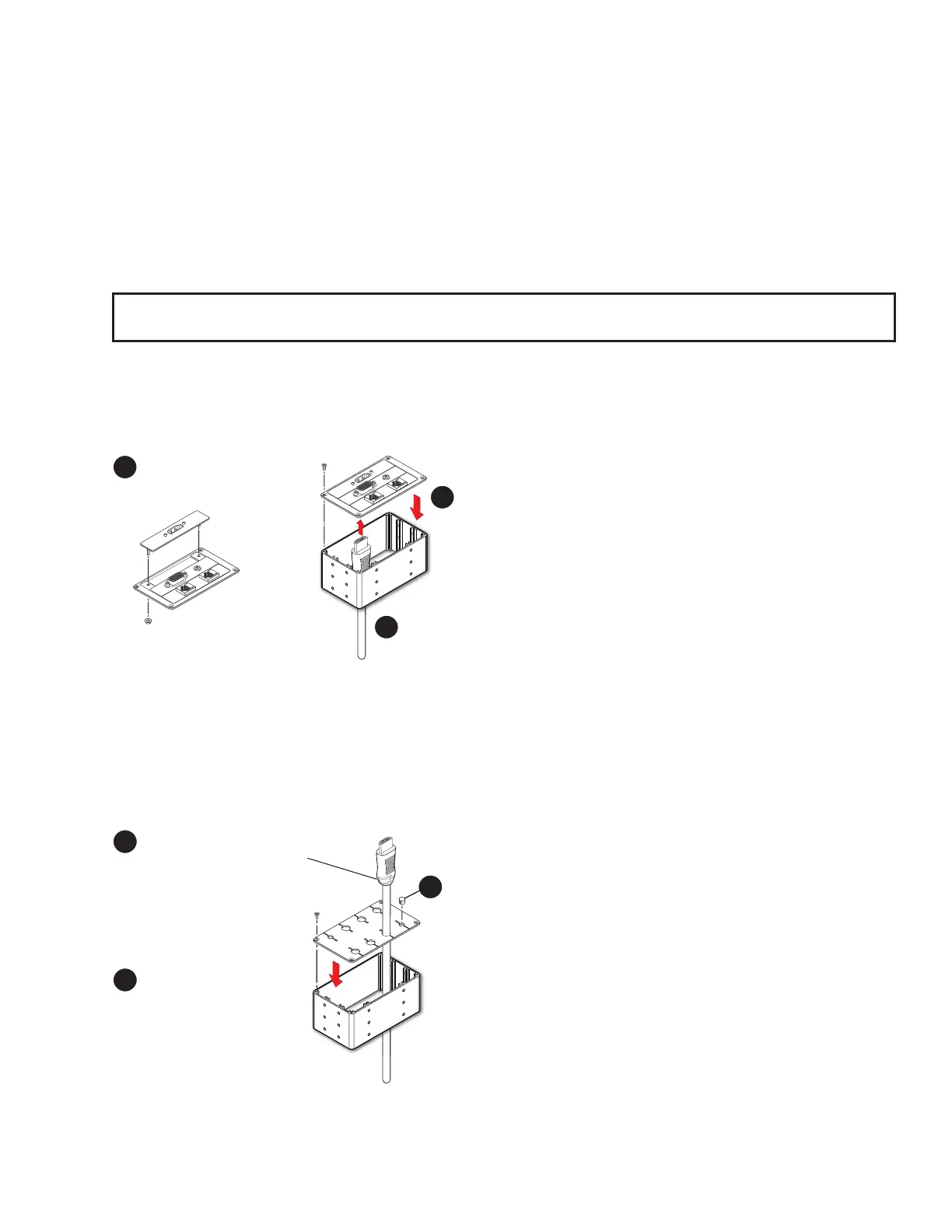

Figure 37. Assembling the AAP Module
Cable pass-through module
The cable pass-through module accommodates up to eight AV cables. Assemble the cable grommet plate, and
plugs in the module as shown in the gure below.
Secure the grommet plate
on the connectivity
bracket using four of
the provided #4-40
module screws.
2
Insert cables through the bottom
of the connectivity bracket
and into the holes
of the grommet plate.
You may need to bend
the plate gently to slide
the cable past the
slot opening.
Snap the included
hole plugs into any
unused holes.
1
3
Figure 38. Assembling the Cable Pass-through Module
Rev. E: Replaced image
with updated version
from the NBP 1200C
setup guide.
37
38
