Network Button Panels • Hardware Features and Installation — NBP 1200C 31
Included Parts
11 22 3
3 44
5
5 66 77 88 99
e
21-525-01LF
e
ON
OFF
PC
LAPTOP
MUTE
MEDIA PLAYER
HDMI 1
HDMI 2

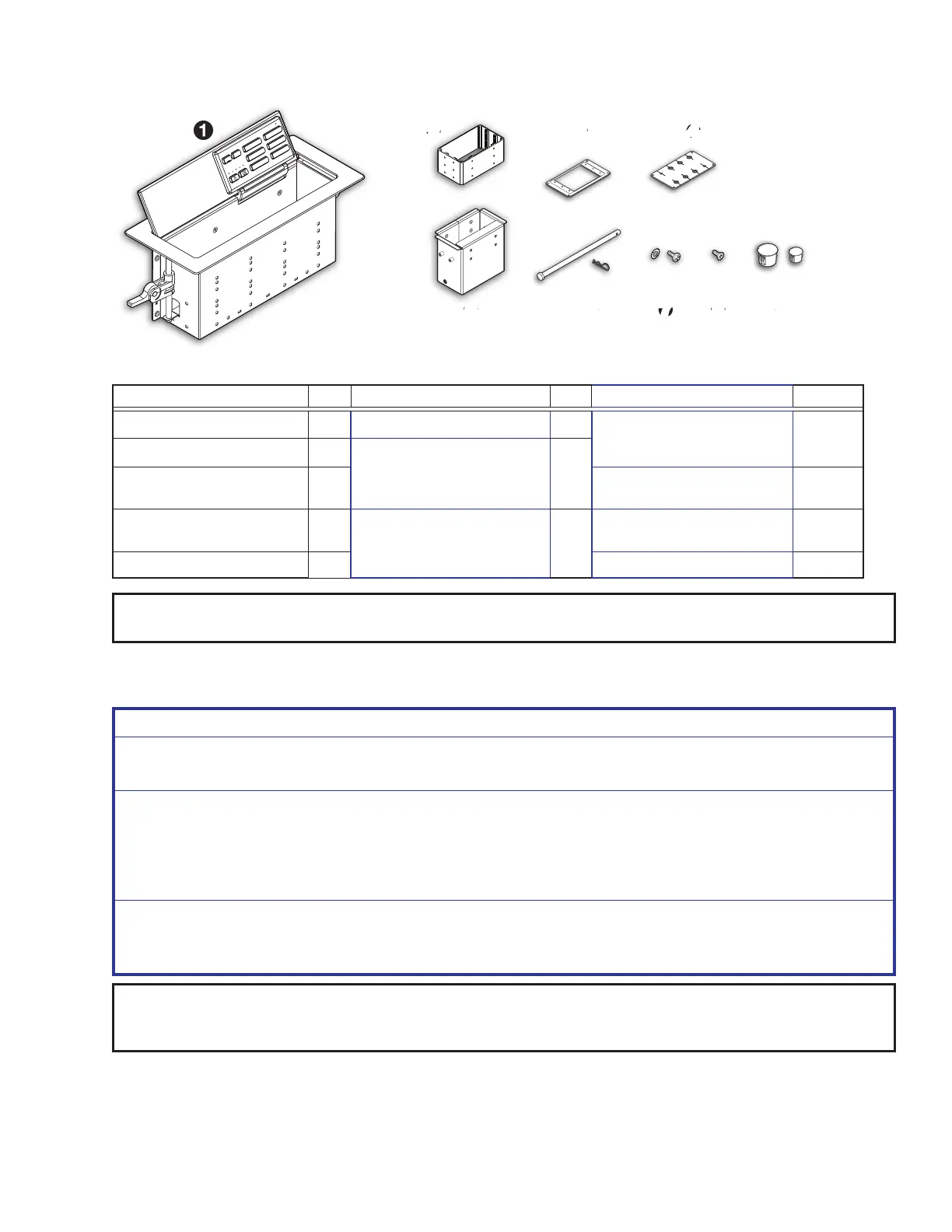

Figure 36. NBP 1200C Included Parts
Item Qty Item Qty Item Qty
1
NBP 1200C
1
6
Retractor pin and clip
1
9
Grommet hole plugs
6 (3/8")
2 (1/4")
2
Connectivity bracket
1*
7
#6-32 pan-head
mounting screws
and star washers
8
3
AAP frame plate
1 Extron removal tool (not
shown)
1
4
Cable grommet plate
1
8
#4-40 module screws
8 Extron Tweeker (small
screwdriver) (not shown)
1
5
Retractor bracket
1 Blank buttons (not shown) 1
NOTE: *A single connectivity bracket is provided. It can be used with either the AAP frame plate or the cable
grommet plate.
Step 2: Prepare the Installation Site, Cut the Table or Furniture
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié.
• If the NBP will be installed into fine furniture, it is best to hire a licensed, bonded craftsperson to cut the
access hole and perform the physical installation so the surface will not be damaged.
• S’il est prévu d’installer le NBP dans du beau mobilier, il est préférable de faire appel à un artisan autorisé
et qualifié pour couper le trou d’accès et réaliser l’installation de telle façon que la surface ne soit pas
endommagée.
• Follow all national and local building and electrical codes that apply to the installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de
l’installation.
NOTE: Extron recommends connecting the unit to an earth ground to protect the unit from electrostatic
discharge. Use the provided #6-32 star washers and mounting screws to connect the ground wire to the
CableCubby enclosure.
Select and prepare the site before cabling the NBP. This includes cutting a hole in the installation surface, running
the cables to that site, and installing the Cable Cubby enclosure and its components (connectivity brackets, AAP
modules, and optional retractors). It may also require installing a cabling raceway and pulling cables through it.
36
