MLC Plus 84 Series • Hardware Features and Installation 10
Accessibility and Americans with Disabilities Act (ADA) Compliance
When planning where to install the MLCPlus84, consider factors affecting accessibility of
the controller such as height from the floor, distance from obstructions, and how far a user
must reach to press the buttons. For guidelines, see sections 307(“Protruding Objects”)
and 308(“ReachRanges”) of the 2010 ADA Standards for Accessible Design available at
http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.
MLCPlus84D Site Preparation
The MLCPlus84D fits a standard US two-gang junction box or mud ring and
decorator-style wallplate. Optional mud rings, ULListed junction boxes, external junction
boxes, and surface mounting boxes are available for use with the MLCPlus84. Read any
installation instructions and UL guidelines that come with the mounting devices, then install
the box or mud ring in the opening at the installation site. To prepare the site:
1. Using the size of the junction box or mud ring for reference, cut the hole in the mounting
surface. Protect the surface prior to and during cutting so the surface is not damaged.
NOTES:
• The approximate cutout dimensions for an Extron-supplied mud ring are
4.1" W x 3.75" H (104 mm W x 95 mm H).
• If mounting the MLCPlus 84D directly to the mounting surface, cut a hole of
approximately 3.6” W x 2.9” H (91 mm W x 74 mm H).
2. Run cables to the mounting location, leaving
enough slack for device installation.
3. Install the junction box or mud ring
(see figure 6) into the wall or
furniture.
4. Secure the cables with
a clamp for strain relief
and so they do not slip
back down into the wall
or furniture.
Wall
Mud Ring

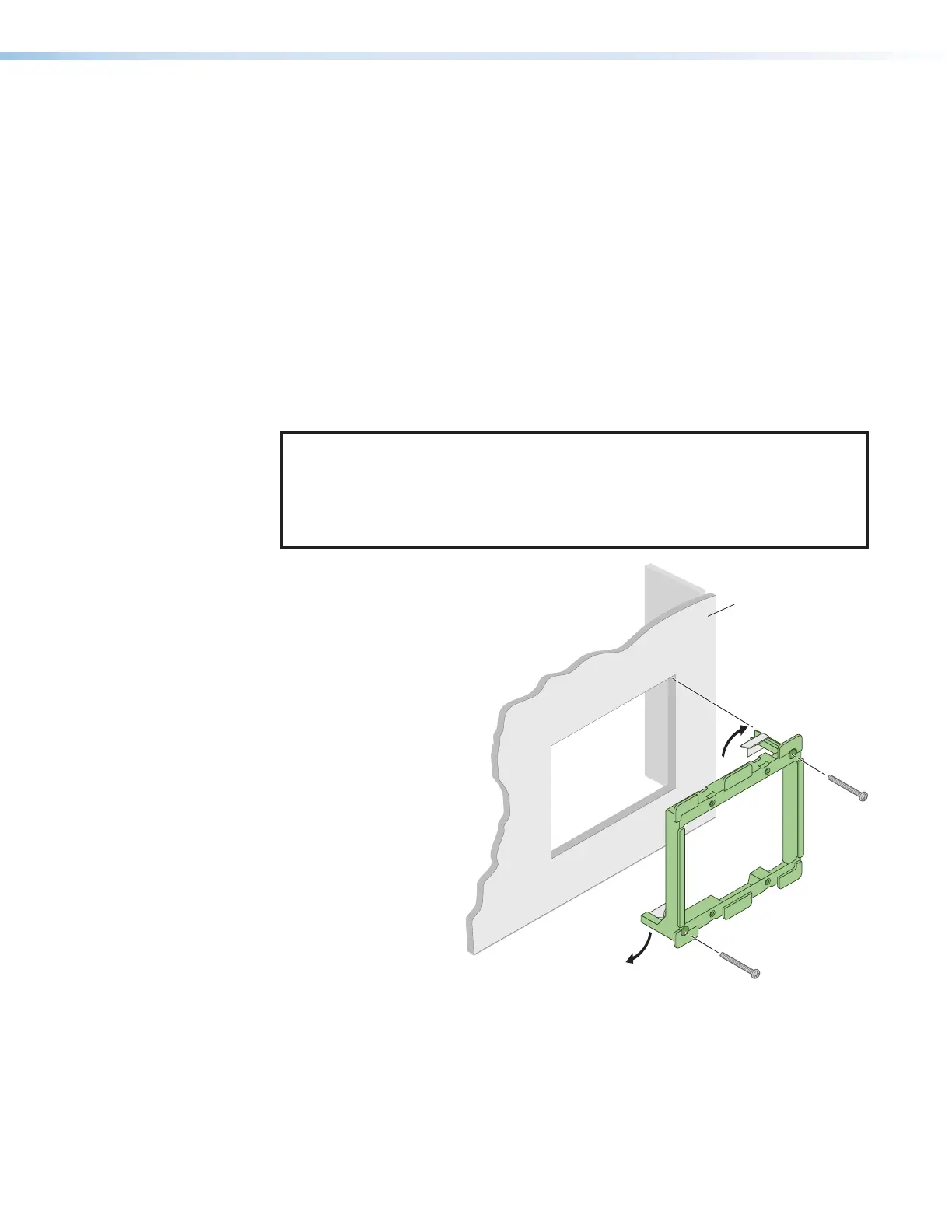

Figure 6. Installing a Mud Ring
