IPCP Pro Series • Hardware Features and Installation
18
Rear Panel Features of DIN Rail Models
Rear ViewSide View
Mounting
Clip
Mounting
Clip
Mounting
Slot

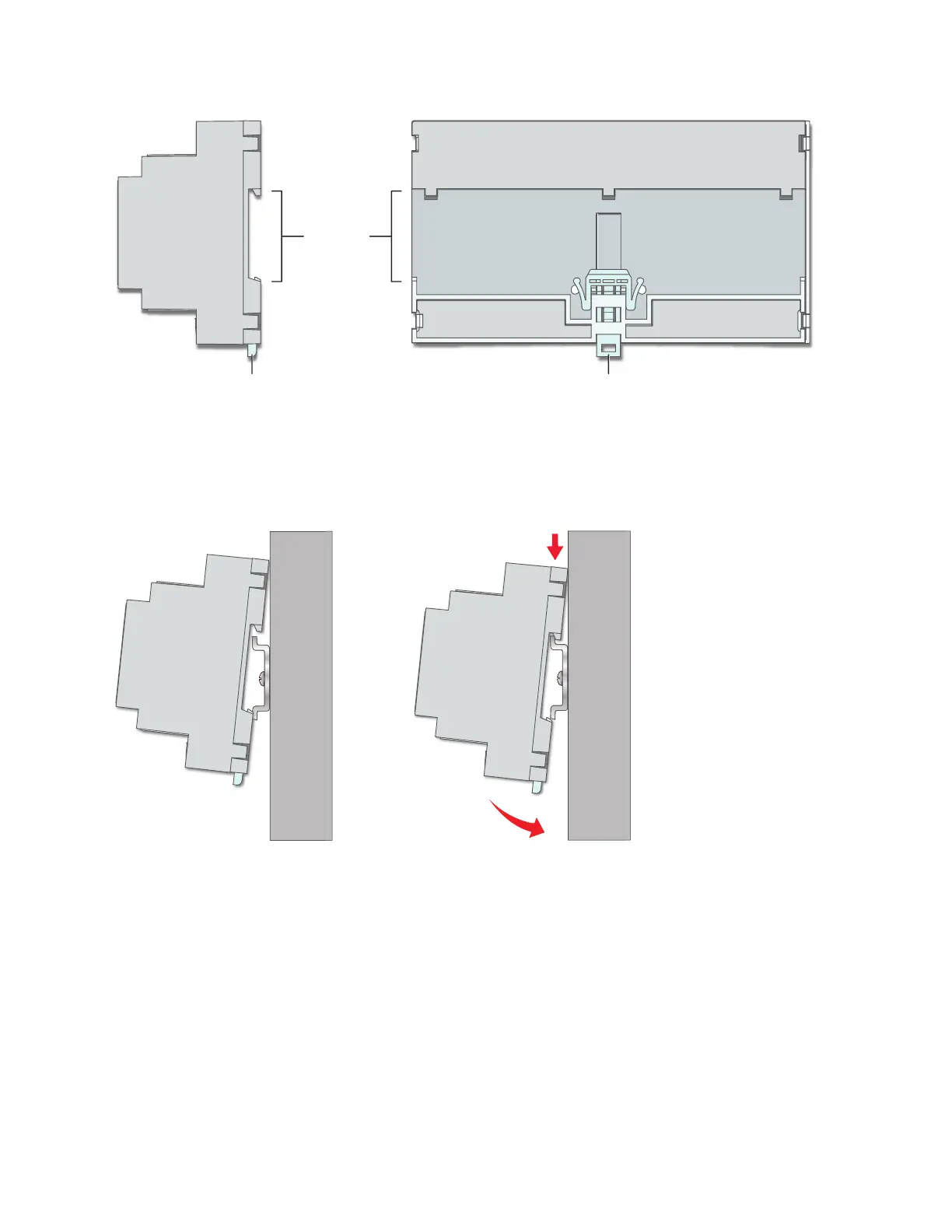

Figure 13. IPCP Pro DIN Rail Series Rear Panel Features
Mounting an IPCP DIN Rail Unit to a DIN Rail
To fasten the IPCP Pro 355DR to a DIN rail:
12
3
Side View
Figure 14. Mounting the IPCP Pro 355DR to a DIN Rail
1. Place the unit in front of the rail, with the top rear against the wall or furniture (see gure 14,
1
).
2. Slide the IPCP Pro down so that the upper part of the mounting slot seats onto the top of the DIN rail
(see
2
).
3. Tilt the base of the IPCP Pro toward the rail and press until the unit snaps into place on the rail (see
3
).
Figure 15 shows how the IPCP Pro looks after it is mounted, before cables are connected.
Rev. L: Removed reference to
the discontinued IPCP Pro
350DR.
