IPCP Pro Q xi and xi Series • Hardware Features and Installation 25
Rear Panel — IPCP Pro FOX3 Matrix Q xi
LAN
RS-232
Tx Rx G
AV LAN
RESET
CONFIG
RESET
FOX3 MATRIX CONTROL
IPCP PRO Q xi CONTROL
REMOTE
MAC: 00-05-A6-XX-XX-XX IPCP LAN
S/N: ####### E######
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX MATRIX
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX IPCP AV LAN
S/N: ####### E######
00-05-A6-XX-XX-XX
MMMM
MMMM
L
LLLNNNNRRRR
Q
QQQQQQQ
PPPP
IPCP Pro FOX3 Matrix Q xi
IPCP
Reset LED and
Reset Button
(recessed)
IPCP
LAN
MAC
MMMM
Matrix
MAC
IPCP
AV LAN
MAC
FOX3
Reset LED and
Reset Button
(recessed)

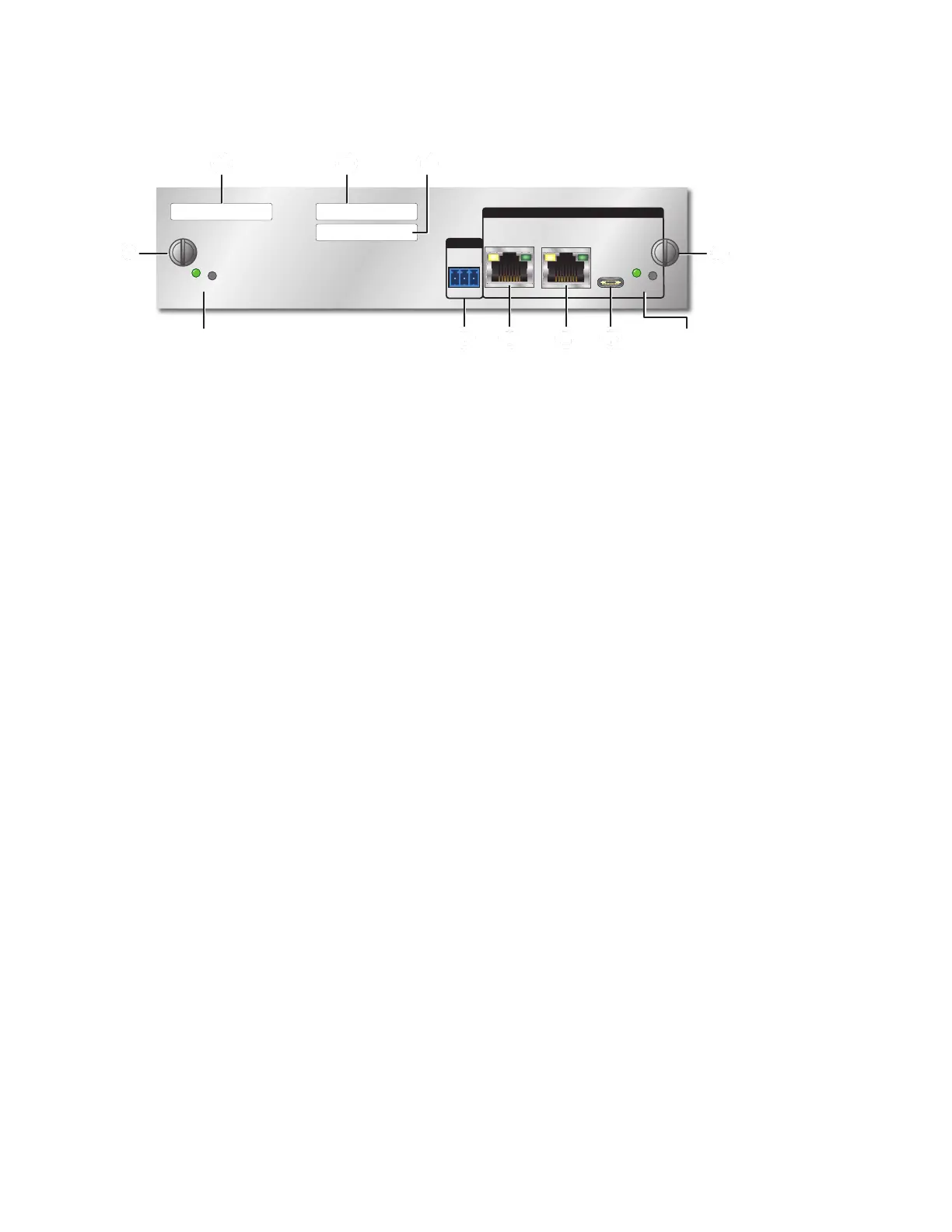

Figure 19. IPCP Pro FOX3 Matrix Q xi Panel
L
LAN connectors and LEDs (Ethernet)
Q
Captive panel (mounting) screws (2)
M
MAC address (or addresses)
R
Remote RS-232 port — For direct SIS control
of the matrix switcher. See the user guide for the
FOX3 matrix switcher for details.
N
AV LAN connector and LEDs (Ethernet)
P
USB C configuration port — For future use.
19
