HAE 100 4K Plus • Panels and Cabling 3
Panels and
Cabling
This section covers the following:
• Front Panel Features
• Rear Panel Features and Cabling
Front Panel Features
SIGNAL
IN OUT
CONFIG
HDCP
AUDIO IN
2-CH LPCM
BITSTREAM
HAE 100 4K PLUS
HAE 100 4K PLUS
12V
0.6A MAX
POWER
INPUT OUTPUT AUDIO OUTPUTS
S/PDIF
ANALOG
LR
BB
EE
CC
AA
DD
AA
BB
DD
CC

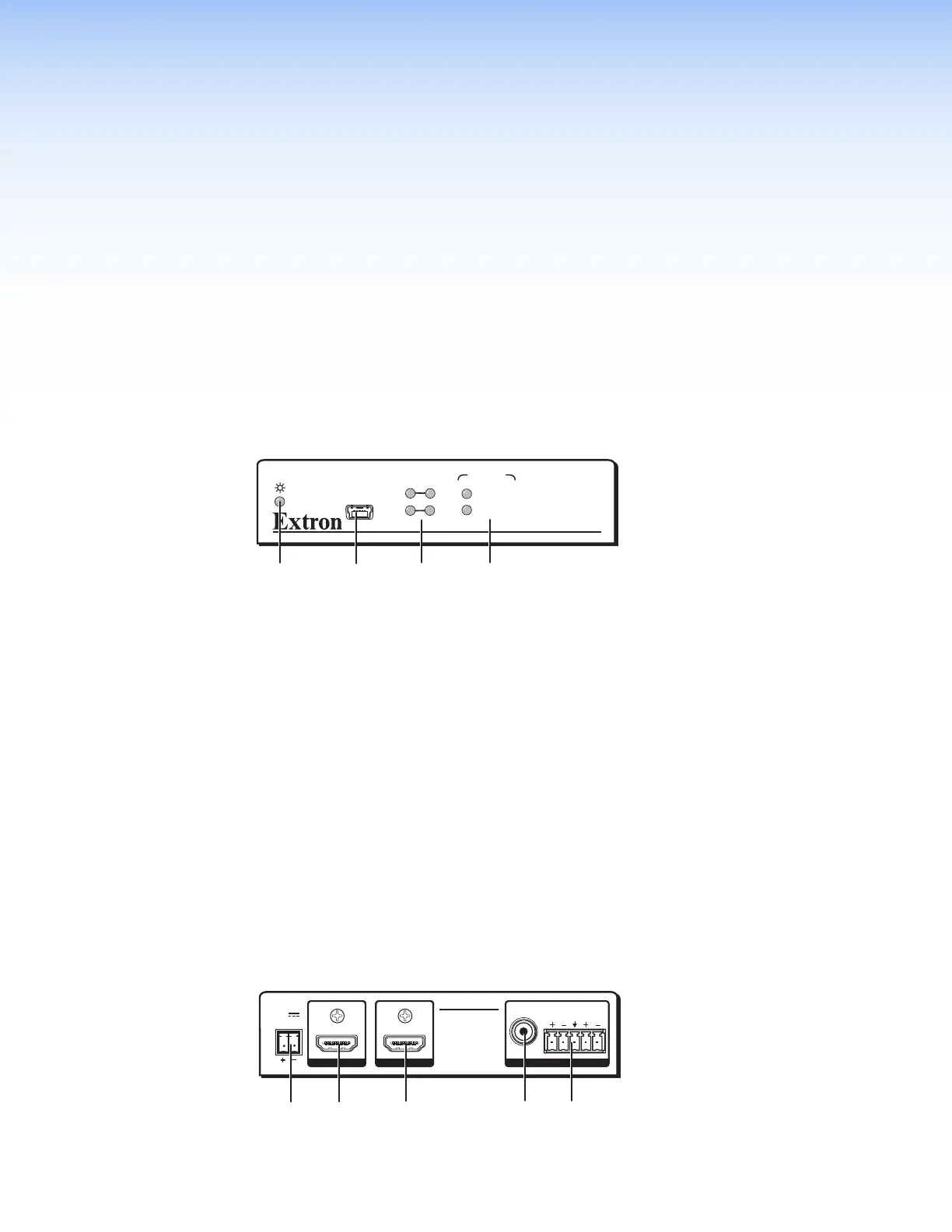

Figure 2. HAE 100 4K Plus Front Panel
A
Power LED — The LED indicator lights when the unit is receiving power.
B
Config port — Use this female type B mini USB to update the firmware, configure
various functions of the unit, and view the current status of the unit.
C
Input and Output LEDs — These four LEDs provide the status of the HDMI input:
• Signal — This LED lights when the unit is receiving a signal on the HDMI input.
• HDCP — This LED lights when the input signal is HDCP encrypted.
D
Audio input LEDs — These two LEDs provide the status of the various HDMI and
audio input functions:
• 2-CH PCM — This LED lights when the incoming embedded audio signal is a
2-channel Digital LPCM audio format.
• Bitstream — This LED lights when the incoming embedded audio signal is a Dolby
Digital or DTS audio format.
Rear Panel Features and Cabling
SIGNAL
IN OUT
CONFIG
HDCP
AUDIO IN
2-CH LPCM
BITSTREAM
HAE 100 4K PLUS
HAE 100 4K PLUS
12V
0.6A MAX
POWER
INPUT OUTPUT AUDIO OUTPUTS
S/PDIF
ANALOG
LR
BB
EE
CC
AA
DD
AA
BB
DD
CC
Figure 3. HAE 100 4K Plus Rear Panel
A
Power input (see the next page)
B
HDMI input (see page 5)
C
HDMI output (see page 5)
D
S/PDIF output (see page 5)
E
Analog output (see page 5)
