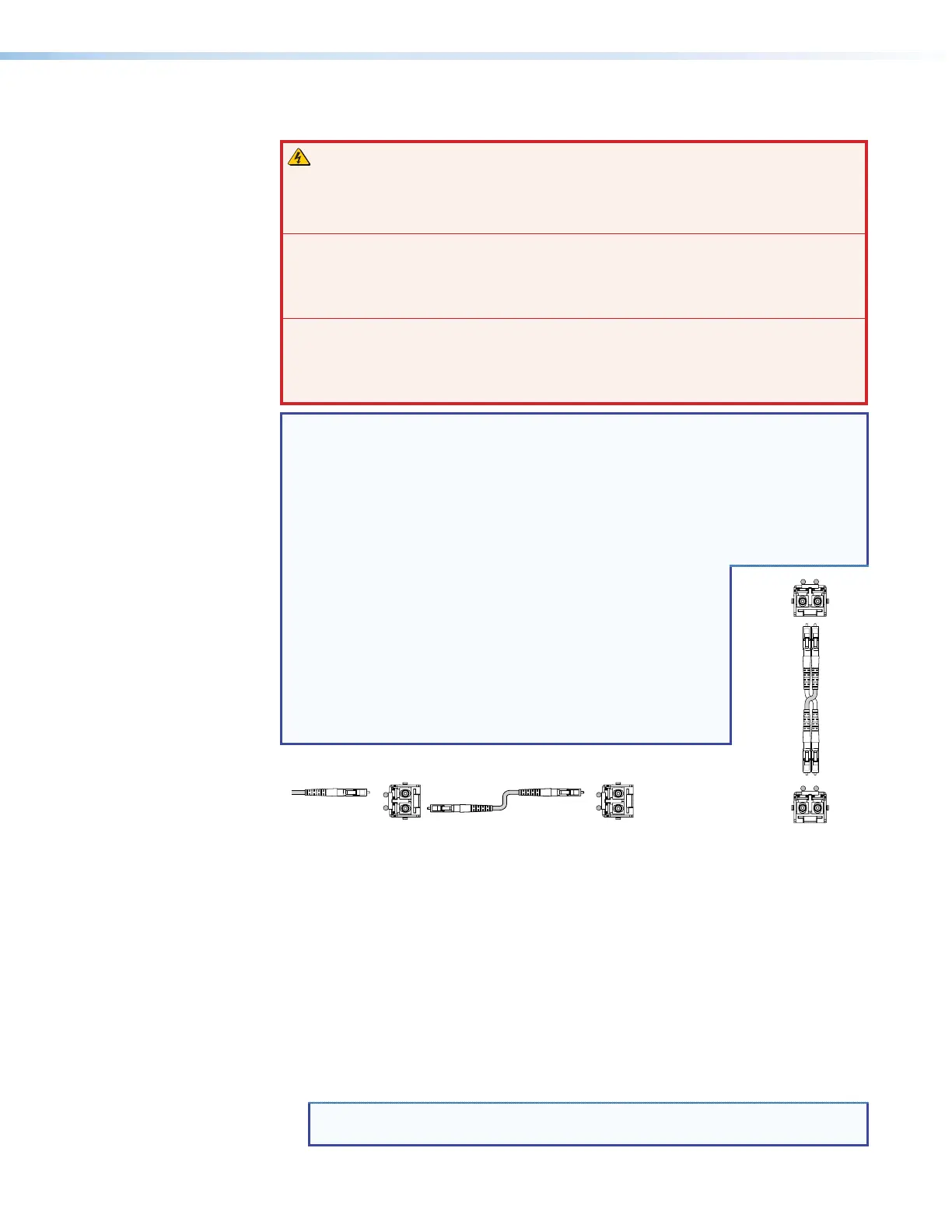

FOXBOX Tx/Rx HDMI • Installation 10
Q
Fiber optic connectors and LEDs (see figure 4 on the previous page) —
WARNING: The FOXBOX Tx/Rx HDMI outputs continuous invisible light,
which may be harmful to the eyes; use with caution.
AVERTISSEMENT : Le FOXBOX Tx/Rx HDMI émet une lumière invisible en
continu qui peut être dangereux pour les yeux, à utiliser avec précaution.
• Do not look into the rear panel fiber optic cable connectors or into the fiber
optic cables themselves.
• Ne regardez pas dans les connecteurs de câble fibre optique sur le panneau
arrière ou dans les câbles fibre optique eux-mêmes.
• Plug the attached dust caps into the optical transceivers when the fiber cable is
unplugged.
• Branchez les protections contre la poussière dans l’ensemble émetteur/
récepteur lorsque le câble fibre optique est débranché.
NOTES:
• You can connect the transmitter to one or more receivers in one of three ways:
• One way (transmitter-Tx-to-receiver-Rx) only — Connect fiber cable
3
(from transmitter connector
1
) only.
• Two way (transmitter to receiver and return) — Connect fiber cable
3
(from transmitter connector
1
) and fiber cable
4
back to the transmitter
(connector
2
). See figure 5.
• One way (transmitter to receiver) with daisy
chain (receiver to receiver) — Connect fiber
cable
3
from a fiber optic source and cable
4
to
the next receiver in the daisy chain. See figure 6. Set
each receiver in the daisy chain to daisy chain mode Up
to 10 properly-configured receivers can be connected
in a daisy chain to a single transmitter.
• See the transmitter fiber connector NOTES on page 7,
which also apply to these connectors.
Fr
om Transmitter
or Daisy-Chained
Receiver
Receiver
Receiver
Tx Rx
Tx Rx
3
33
3
44
Figure 6. Daisy Chain Configuration
1
Rx (required) — For all one-way video, audio, and serial communications from the
transmitter to the receiver, connect a fiber optic cable to the Rx LC connector.
Connect the free end of this fiber optic cable to the Tx connector on the FOXBOX Tx
transmitter (item
F
on page 7) or to any other compatible Extron FOXBOX device.
2
Tx (optional) — Connect a fiber optic cable to the Tx LC connector for either of
the following functions:
Normal configuration — For all one-way return serial communications from the
receiver to the Rx connector on the transmitter. See figure 5.
Daisy chain configuration — For daisy-chained video, audio, and serial
communications to the Rx connector on another receiver. See figure 6.
NOTE: The Tx connector emits light in either case and the Rx port receives
light.
Figure 5. Two Way
Configuration
Tr
ansmitter
( on
page 7)
(
on
page 7)
Receiver
Tx Rx
Tx Rx
33
44
44
33
1
12
2
