SIS Commands
Introduction to SIS
SIS commands consist of a string (one or more characters per command field). Commands do
not require any special characters to begin or end the command string. Each response from
the unit ends with a carriage return and a line feed (CR/LF =
]
), which signals the end of the
response character string.
When the FOX Tx/Rx AV unit is first switched on, depending on the model, it sends one of the
following messages:
(c) Copyright 2008, Extron Electronics, FOX 2G Tx AV, Vx.xx, 60-941-11
]
or
(c) Copyright 2008, Extron Electronics, FOX 2G Tx AV, Vx.xx, 60-941-12
]
or
(c) Copyright 2008, Extron Electronics, FOX 2G Rx AV, Vx.xx, 60-941-21
]
or
(c) Copyright 2008, Extron Electronics, FOX 2G Rx AV, Vx.xx, 60-941-22
]
where V x.xx is the firmware version number and 60-941-xx is the catalog number.
Symbols Used in This Guide
When programming in the field, certain characters are most conveniently represented by the
hexadecimal equivalent of their ASCII value. For convenience, the table below shows the
hexadecimal equivalent of each ASCII command:

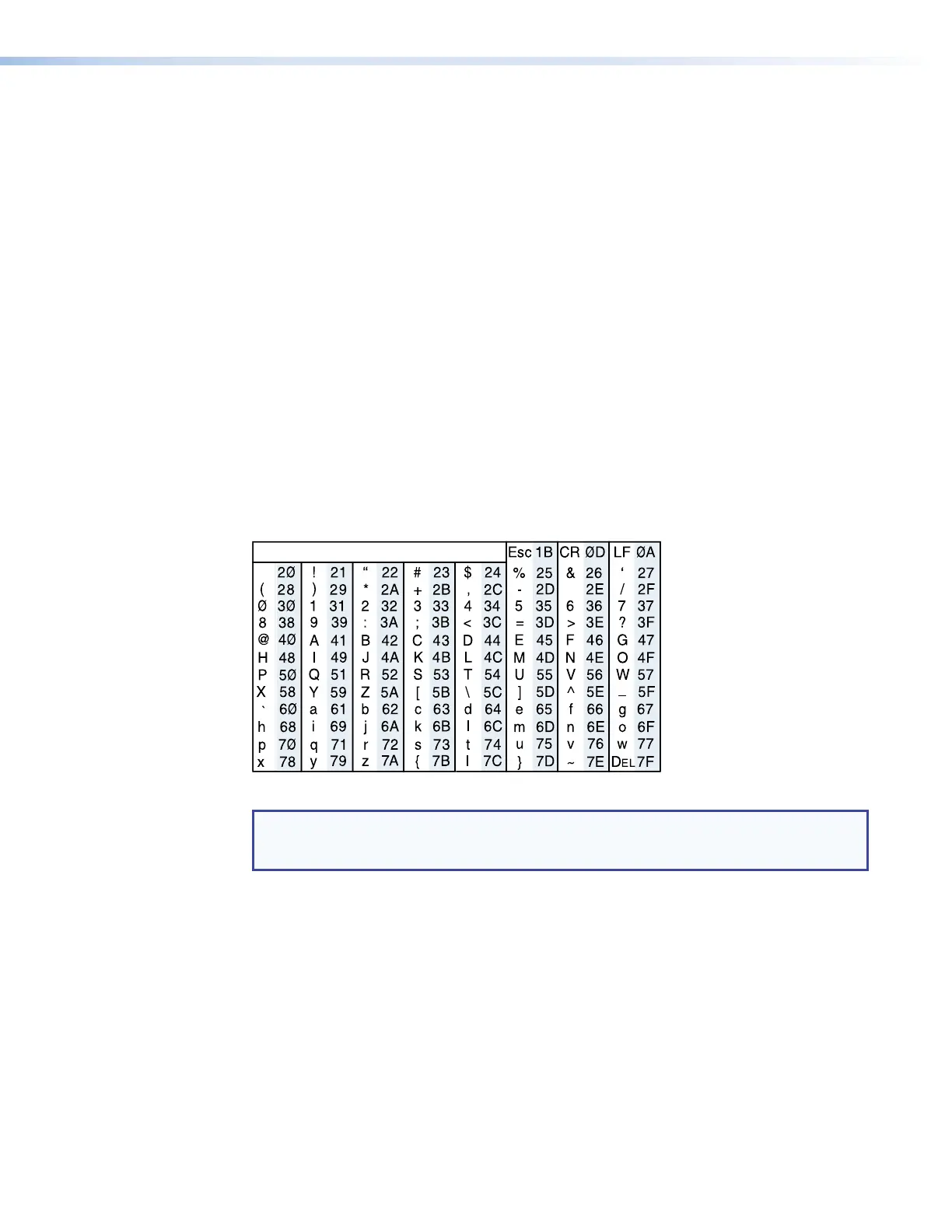

ASCII to HEX Conversion Table
S
pace
.
Figure 11. ASCII to Hex Conversion Table
NOTE: Apart from G (gain) and g (attenuation), upper and lower case characters can be used
interchangeably in SIS commands for this product. For example, either “C” or “c” can be
used to (see Adjust color on page 16).
The symbols (
X/
values) defined in this section are the variables used in the fields of the
Command and Response Table for SIS Commands (see page 16).
]
— carriage return with line feed
}
— carriage return (no line feed)
• — space character
E
— Escape key
X!
— Input video type
0 = Auto
4 = Component
5 = S-video
6 = Composite
FOX Tx/Rx AV • Configuration 14
