FOX II T HD 4K Transmitter • Remote Control 23
Using the Software

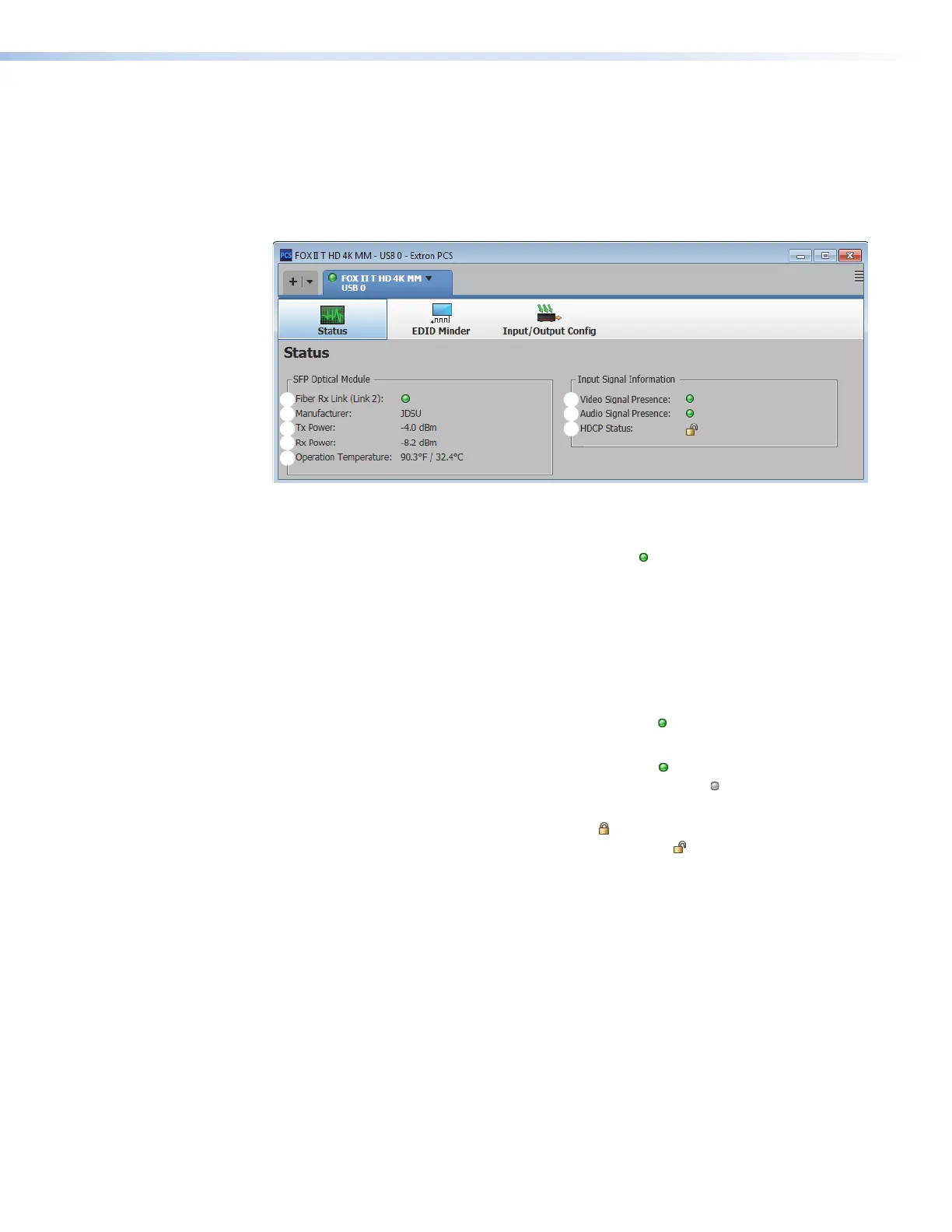

Once you have connected to a device, the Status window (see figure 14) is the default
start-up window for the Product Configuration Software. The window provides indications of
the connection status.
Status window
11
55
44
33
22
66
88
77
Figure 14. Status Window
1
Fiber Rx Link (Link 2) indicator — Indicates green ( ) when the transmitter detects
light on the fiber optic cable connected to the Rx port.
2
Manufacturer fields — Indicates the manufacturer of the SFP module.
3
Tx Power fields — Indicates the power on the Tx optical module of the unit in dBm.
4
Rx Power fields — Indicates the power on the Rx optical module of the unit in dBm.
5
Operating Temperature — Indicates the temperature in degrees Fahrenheit and
degrees Celsius.
6
Video Signal Presence indicators — Indicates green ( ) when the transmitter detects
a sync signal on its HDMI video input.
7
Audio Signal Presence indicators — Indicates green ( ) when the analog audio or
PCM digital audio signal remains above -35 dBV. Indicates gray ( ) if the audio signal
level drops below the threshold for 10 seconds or longer.
8
HDCP Signal indicator — Shows a lock icon ( ) when the digital video signal has
copyright encryption applied and shows an unlocked icon ( ) when the signal is not
copyright protected.
