DTP T USW 333 • Remote Control 16
Error responses
When the switcher receives a valid SIS command, it executes the command and sends a response to the host
device. If the switcher is unable to execute the command because the command is invalid or it contains invalid
parameters, the switcher returns an error response to the host. The error response codes are:
E01 — Invalid input channel number (out of range)
E06 — Invalid channel change
E10 — Invalid command
E13 — Invalid parameter
Timeout
Pauses of 10 seconds or longer between command ASCII characters result in a timeout. The command operation
is aborted with no other indication.
Using the Command and Response Table
The Command and Response Table for SIS Commands starts on page 18. Symbols are used throughout the
table to represent variables in the command and response fields. Command and response examples are shown
throughout the table. The SIS commands are not case sensitive. The ASCII to HEX conversion table below is for
use with the command and response table.

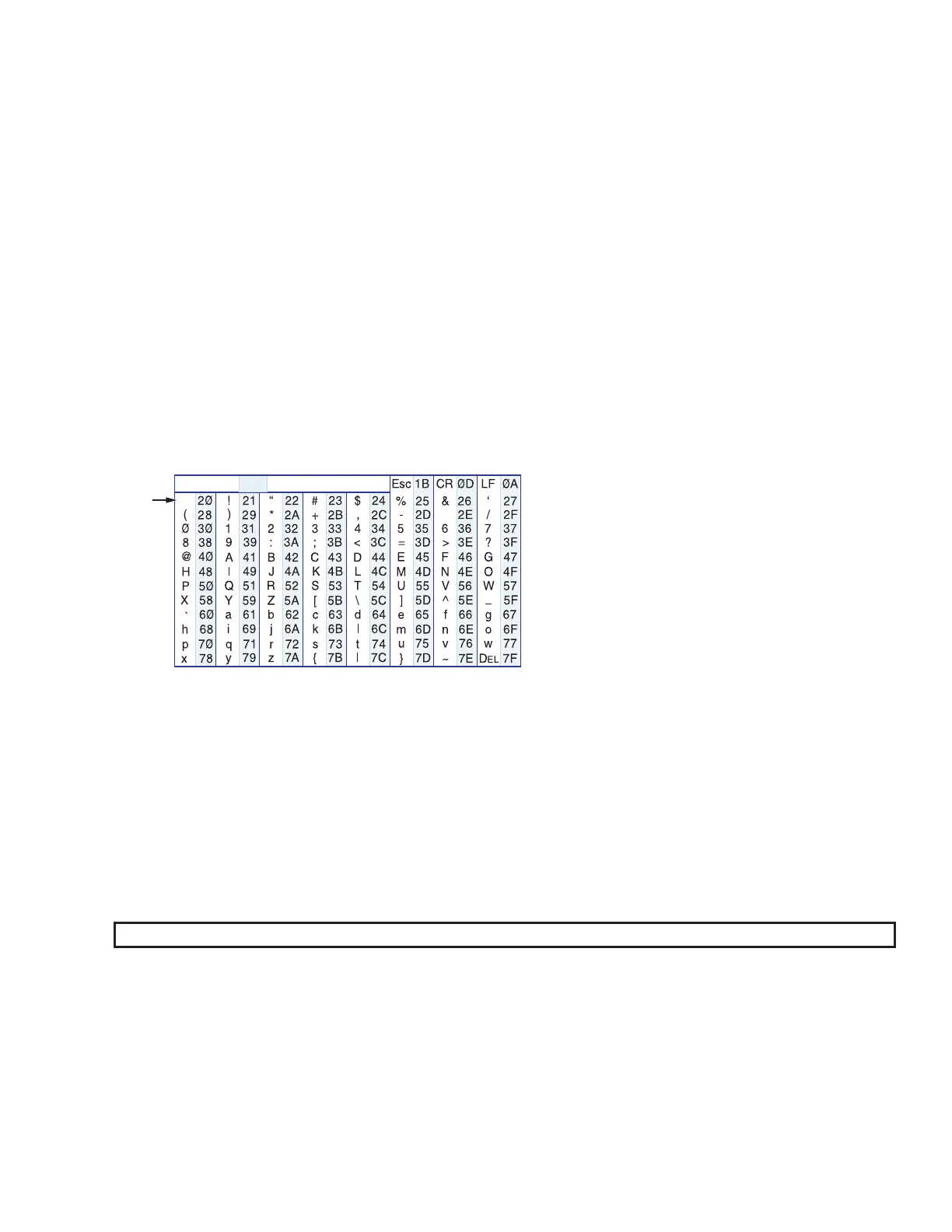

ASCII to Hex Conversion Table
•
Space
Figure 12. ASCII to Hexadecimal Conversion
Symbol Definitions
] = Carriage return/line feed
} = Carriage return (no line feed)
| = Pipe (can be used interchangeably with the } character)
• = Space
E
or W = Can be used interchangeably with the Escape key character
X!
= Input number 0 or 1 through 3 (0 = no input for switching command or always output for audio
assignment)
X@
= Switch mode 0 = Manual (default) 2 = Auto-input switching low
1 = Auto-input switching high
NOTE: Auto-input switch low (X@ = 2) is not available from the front panel.
X#
= Status 0 = O, disabled, or not detected 1 = On, enable, or detected
X$
= HDMI input 2 or 3
X%
= Input HDCP status 0 = No source is detected 2 = Source detected without HDCP
1 = Source is detected with HDCP
X^
= Output HDCP status 0 = No sink is detected 2 = Sink is detected without HDCP
1 = Sink is detected with HDCP
X&
= EDID See the EDID Values table on page 21.
X*
= User EDID location 66, 67, or 68
X(
= Raw EDID data 128 or 256 bytes of hexadecimal data
X1)
= Resolution and rate in plain text Example: 1920x1200•@60Hz
12
