Extron DTP T HD2 4K 230/330 • SIS Commands 11
Symbols Used in this Guide
When programming in the field, certain characters are most conveniently represented by
their hexadecimal rather than their ASCII values. The table below shows the hexadecimal
equivalent of each ASCII character:

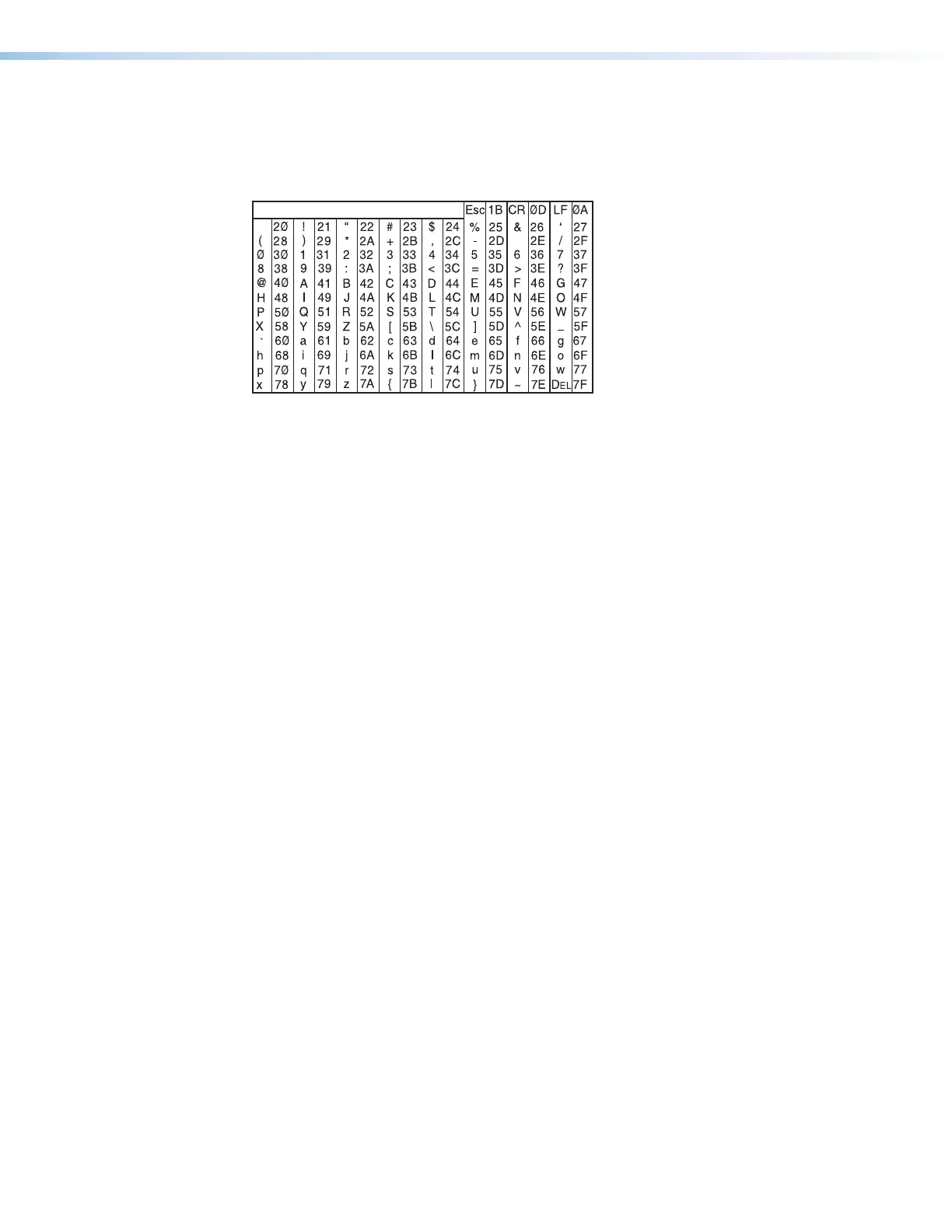

ASCII to HEX Conversion Table
Space
.
Table 1. ASCII to HEX Conversion Table
Symbol Definitions
•
= Space
]
= Carriage return with line feed
| or }
= Carriage return with no line feed
E or
W
= Escape
X!
= Output selection
1 through maximum number of outputs
X@
= Output status
0 = disabled/off/undetected
1 = enabled/on/detected
X#
= Video color bit depth
0 = auto (based on EDID of sink)
1 = force 8-bit
X$
= EDID memory location 1-16 (default is 9)
See the DTP T HD2 4K EDID Memory
Locations table on page 14.
X%
= EDID data as 256 bytes of hex
data (text representation)
X^
= Native resolution and refresh rate
(translated from hex)
Example: 1600x1200 @60Hz
X&
= Controller firmware version to the
second decimal place
X*
= Unit name: Up to 24
alphanumeric characters
(including hyphen [-])
No spaces allowed
No distinction between upper and lower case
letters
First character must be a letter
Last character cannot be a hyphen (-)
Default is model name
X(
= Video mute
0 = video mute disabled
1 = video mute (TMDS)
2 = video and sync mute
