Extron DTP T HD2 4K 230/330 • Installation and Operation 5

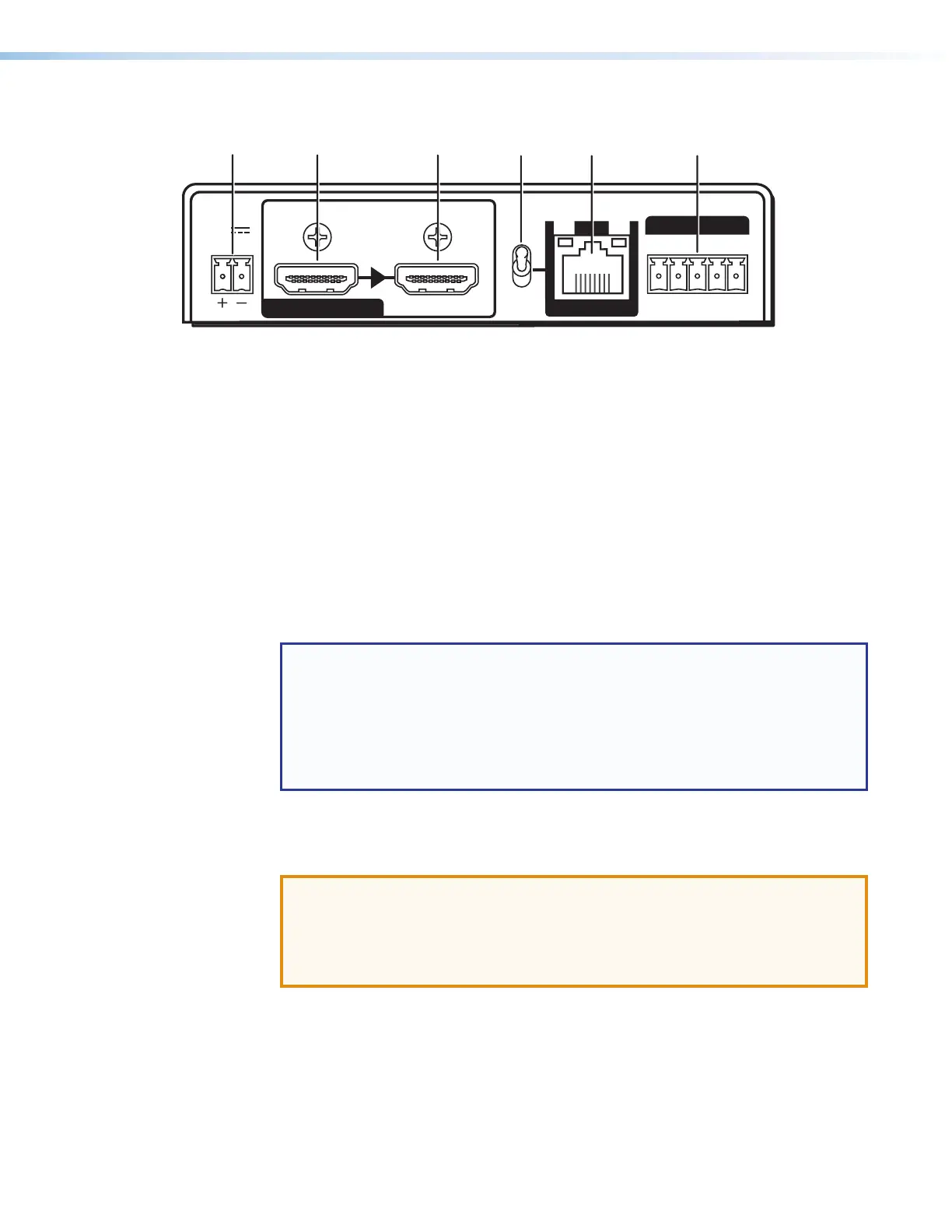

Rear Panel Features
POWER
12V
1.0A MAX
RS-232 IR
RxTx RxTxG
OVER TP
INPUT
LOOP THRU
DTP
HDBT
SIG
OUT
LINK
A
B C
D E F
A
DC power input connector — Wire and plug the included external 12 VDC power
supply into either this 2-pole connector or the power input connector on the receiver
(see page 8 for wiring information).
B
HDMI input — Connect a source device to this female HDMI type A connector.
C
HDMI Loop Thru — Connect a display to this female HDMI type A connector for local
loop-through monitoring of the source signal.
D
DTP/HDBaseT configuration switch — Set this 2-position, recessed switch to
configure the output between DTP and HDBaseT modes. When configured for DTP, use
a DTP-compatible receiver. When configured for HDBaseT, use an HDBaseT-compatible
receiver.
NOTES:
• When the switch is set to DTP mode, only one power supply is required. A
single power supply connected to either a transmitter or compatible receiver
can power both units.
• When the switch is set to HDBaseT mode, remote power is disabled and
power supplies are required for both transmitter and receiver. Analog audio is
enabled, but incompatible with third-party HDBaseT devices.
E
DTP/HDBaseT output — Use an STP cable to connect this output to the input of a
compatible receiver (see Twisted Pair Recommendations for DTP Communication
on page 7 for more information).
ATTENTION:
• Do not connect these outputs to a telecommunications or computer data
network.
• Ne connectez pas ces appareils à des données informatiques ou à un réseau
de télécommunications.
A
DC power input connector
D
DTP/HDBaseT configuration switch
B
HDMI input
E
DTP/HDBaseT output
C
HDMI Loop Thru
F
Over DTP RS-232/IR connector
