Step 8: Mounting the ACP 106 EU/MK
Prior to mounting:
1. Feed all device cables through the wall or furniture.
NOTE: If the unit is not installed in a mud ring, the plastic spacer must be installed. The spacer positions the unit to allow
the plastic faceplate to attach properly and securely.
2. Ensure the cables are connected to the ACP 106 EU/MK rear panel.
Mounting ACP 106 EU or ACP 106 MK Units to an Electrical Wall Box
The ACP 106 EU can be mounted in any standard 1-gang EU electrical junction box. The ACP 106 MK can be mounted in any
standard 1-gang MK electrical junction box.
NOTES:
• The electrical wall box is not provided and must be purchased separately.
• Install the electrical wall box by following the instructions provided by the manufacturer.
• Use the metal mounting bracket provided with ACP unit.
To mount an ACP 106 EU/MK:
1. Decide where the panel will be located. Take into consideration
the position of wall studs and windows that could obstruct cable
runs.

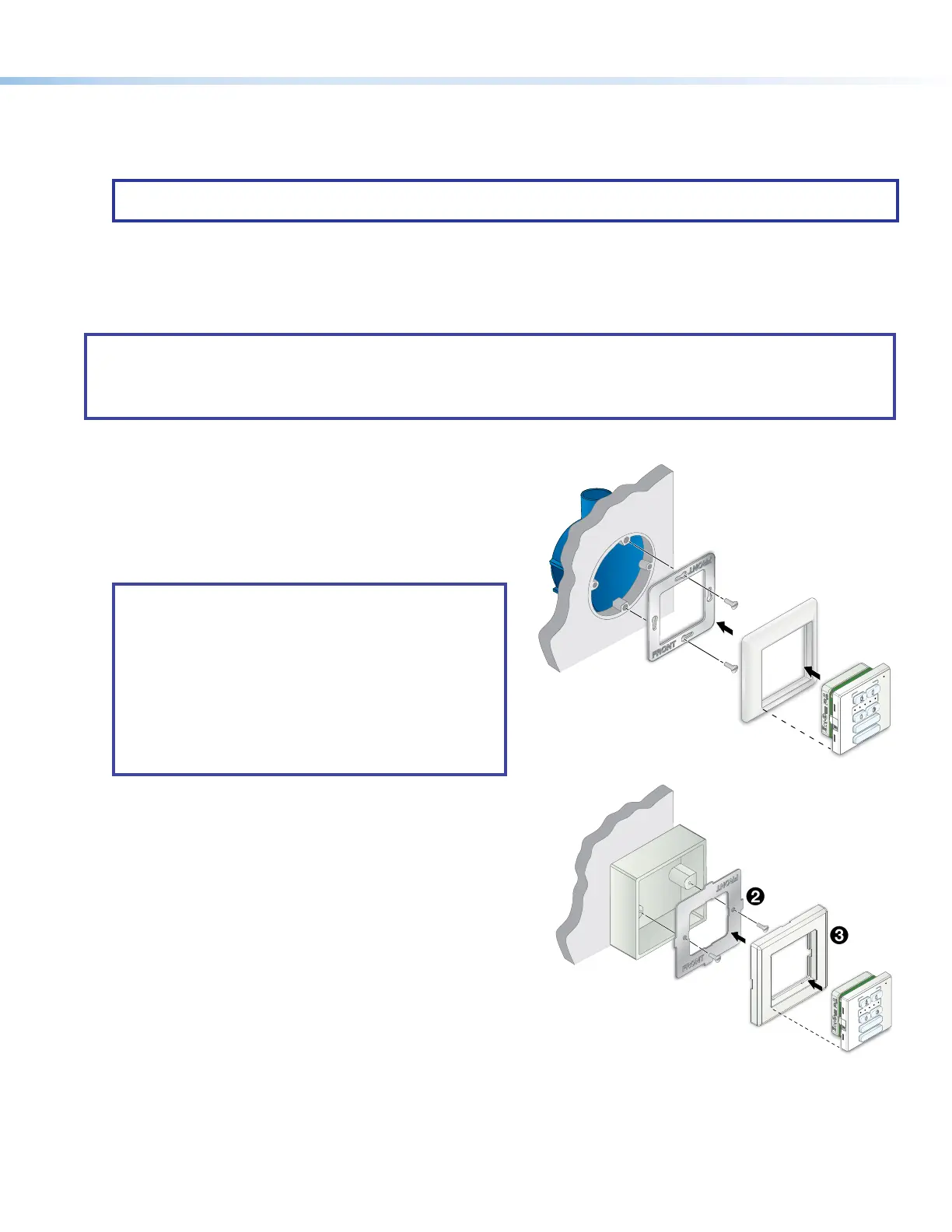

2. Install the electrical wall box (see
1
in the gure to the right) by
following the instructions provided by the manufacturer. Attach
the provided metal mounting bracket (
2
) using the two provided
screws.
NOTES:
• The metal mounting brackets provided with the
EU and MK models are different and are not
interchangeable.
• Ensure the bracket is in the correct orientation (with
the side marked “Front” facing away from the wall.
• The EU model is attached with screws at the top and
bottom.
• The MK model is attached with screws on both the
sides.
3. Disconnect power from all devices at the source and run cables
through the hole in the wall. Pass them through the metal mounting
bracket and plastic faceplate and connect them to the rear panel
captive screw connectors (see Step 5: Cable All Devices on
page4).
4. Set the DIP switches to give the panel a unique ID number (see
Step 4: Set Bus ID Addresses on page3).
5. Insert the ACP 106 EU/MK into the plastic faceplate (
3
) and press
the entire assembly into the metal mounting bracket (
2
). The device
is secured to the metal mounting bracket by two catches (one on each
side) and holds the wallplate in place.
