8S RS232/422/485 PCI/PCIe Expansion Module
10

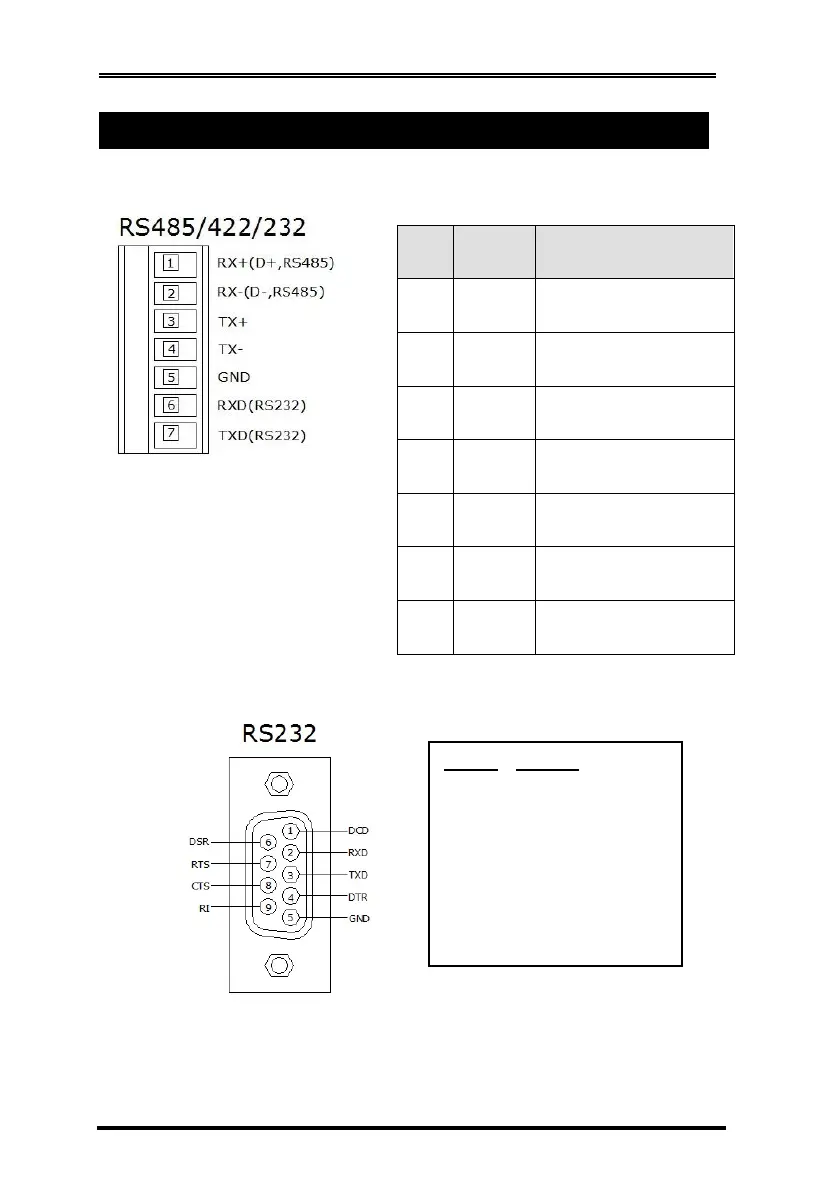

7-pin Terminal Blocks:
DB9 male Connector:
⚫ *Note: The pin 9 of each DB9 male connector supports DC5V or DC12V option
depends on the internal jumper settings in the module box and the AC/DC power
adapter connected, the default factory settings disabled the power and
connected it to RI signal
Pin
No.
Signal
Name
Support Modes
1
RX+
(DATA+)
RS485 2-wire, RS485
4-wire, RS422
2
RX-
(DATA-)
RS485 2-wire, RS485
4-wire, RS422
3
TX+
RS485 4-wire, RS422
4
TX-
RS485 4-wire, RS422
5
GND
RS485 2-wire, RS485
4-wire, RS422,RS232
6
RXD
RS232
7
TXD
RS232
7. Connector Pin Assignments
9 Pins Signal
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI(Power)*
