RS232/TTL(CMOS) to USB2.0 Adapter, w/ Isolation and Surge Protection
2
Features:
✓ Provides 1 RS232/TTL(CMOS) Serial Port over USB2.0 Port
✓ Supports USB 2.0 High Speed (480Mbps) and Full Speed (12Mbps)
✓ Provides a DSUB-9 Connector for RS232 Serial Port
✓ Provides a 5-pin Terminal Blocks for TTL(CMOS) Serial Port
✓ Supports 2,500Vrms Isolation and Surge Protection
✓ USB Screw Lock Mechanism Enhances the Reliability
✓ Baud Rate up to 921.6Kbps
✓ Supports 7,8 Data Bits
✓ Odd, Even, Mark, Space, or None parity mode
✓ Supports 1, or 2 Stop Bits
✓ Powered by USB Bus Power, no AC Adapter is Required
✓ Supports Wall Kit and Optional DIN RAIL Mounting Kit
✓ Supports Win98, Me, XP, CE, 2000, 2003, 2008, Vista, Win7, Linux and Mac
OS
Note:
In general case, this product does not need any external AC
power adapter since it is powered by the USB port. The built-in
DC jack is used to inject 5V DC only if your USB host could not
provide enough power.
1. Connect the Product to PC’s Host USB port with the standard A-to-B USB
cable. Once the USB port supplies power, the LED will light up.
2. The serial port provides 2 connectors. The DB9 male is for RS232 signal
applications. The 5-pin terminal blocks is used for TTL/CMOS level (RS232
protocol, but different voltage level) serial applications. These 2
connectors CANNOT be used simultaneously.
⚫ DB9 male RS232 connection:
⚫ TB-5 TTL(CMOS) connection:

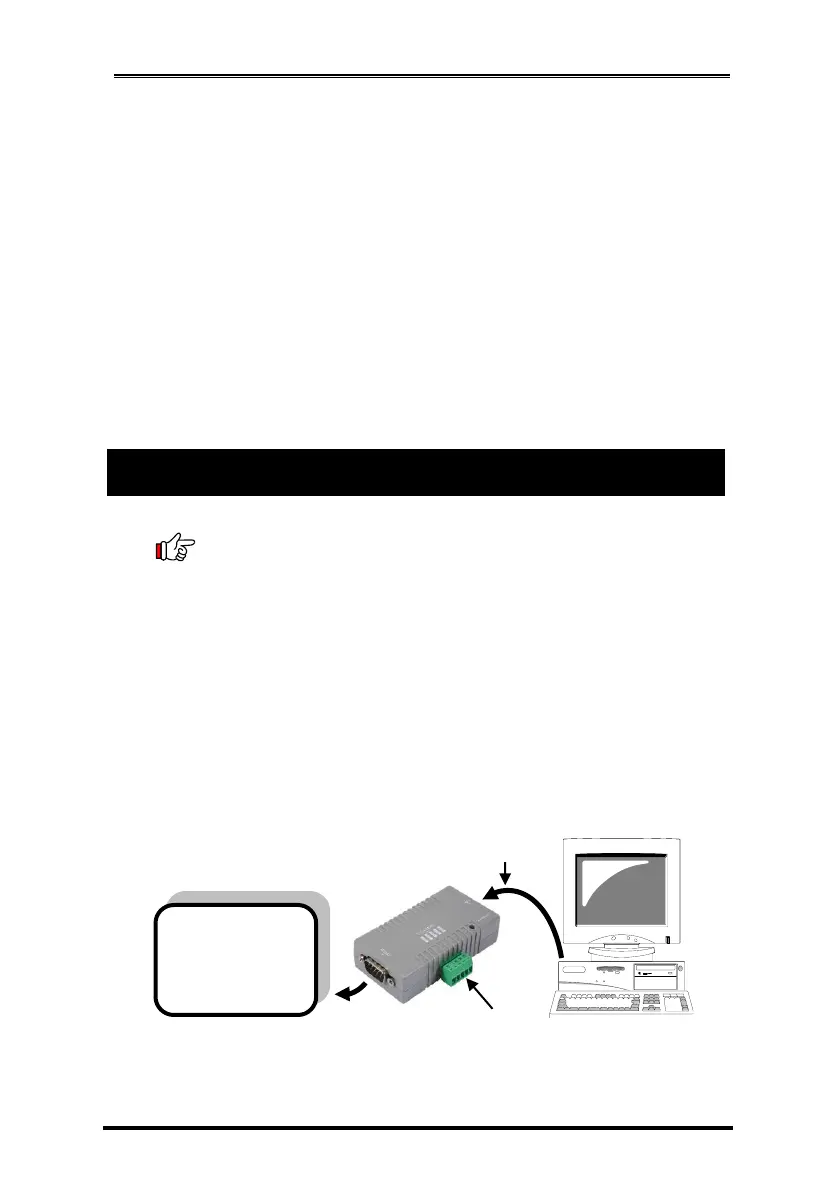

3. Installing the Adapter
RS232 Device:
Modem,
Barcode
reader, …
USB cable
Leave TB-5
unconnected
