Installation
Page 34 of 48
DESCRIPTION

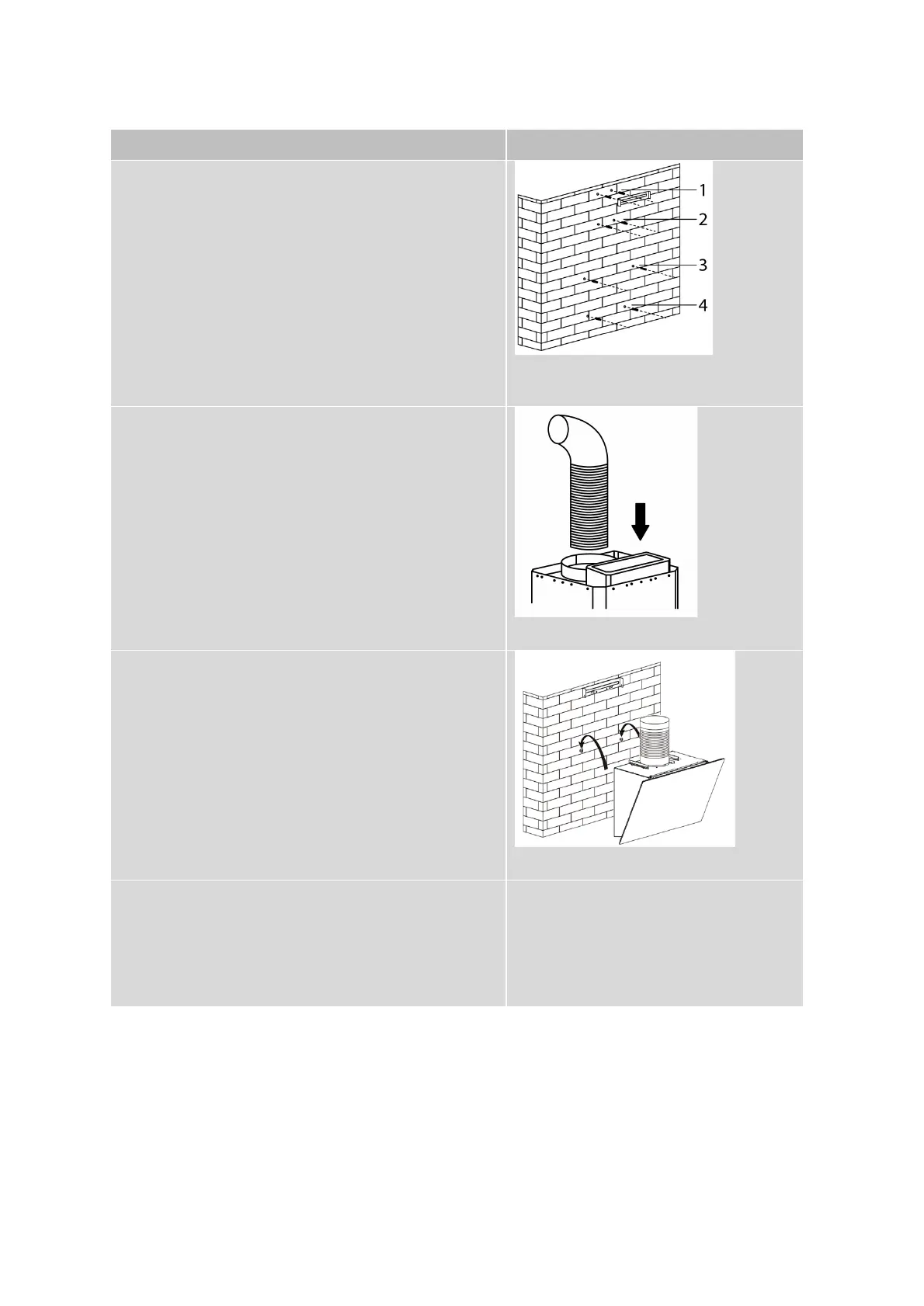

PICTURE / ILLUSTRATIONS
Set height for the device
1. Bohrschablone to the wall and drill holes
for the bonnet.
2. 2 fixing screws
ST 4x30 mm with wall plugs into the
wall. The screws should
protrude 3-5 mm from the wall in order
to be able to hang the appliance.
Figure 9
3. Fit the exhaust air hose to the exhaust
air fitting.
Figure 10
4. Mount the appliance on the wall using
the fixing screws, see Fig. 3.
5. Fix the appliance to the wall with 2
safety screws
ST 4x30 mm to the wall.
Figure 11
6. To install the upper and lower flue panel,
draw a vertical line upwards.
7. Insert the upper flue panel into the
lower flue panel.
8. Place the flue panels on the hood.
