3. Close right side.
As under disassembly of camera A.2, but in reverse order. Check for correct functioning.
4. Check and adjust the distance between the lens mount and the film plane.
Check along the film-path with a Meßuhr [means dial-gauge - should be depth-gauge, surely?].
The distance between the lens-mount and the film-guides must be 44.72 ± 0.01mm. The film-
path should be set accordingly [presumably by means of shims under the mount. There is no
way of setting the film-path itself].
5. Check and adjust the mirror position.
(Collimator is set to infinity).
a) Example 1:
The greatest sharpness lies before the infinity stop of the lens: hold the mirror retaining

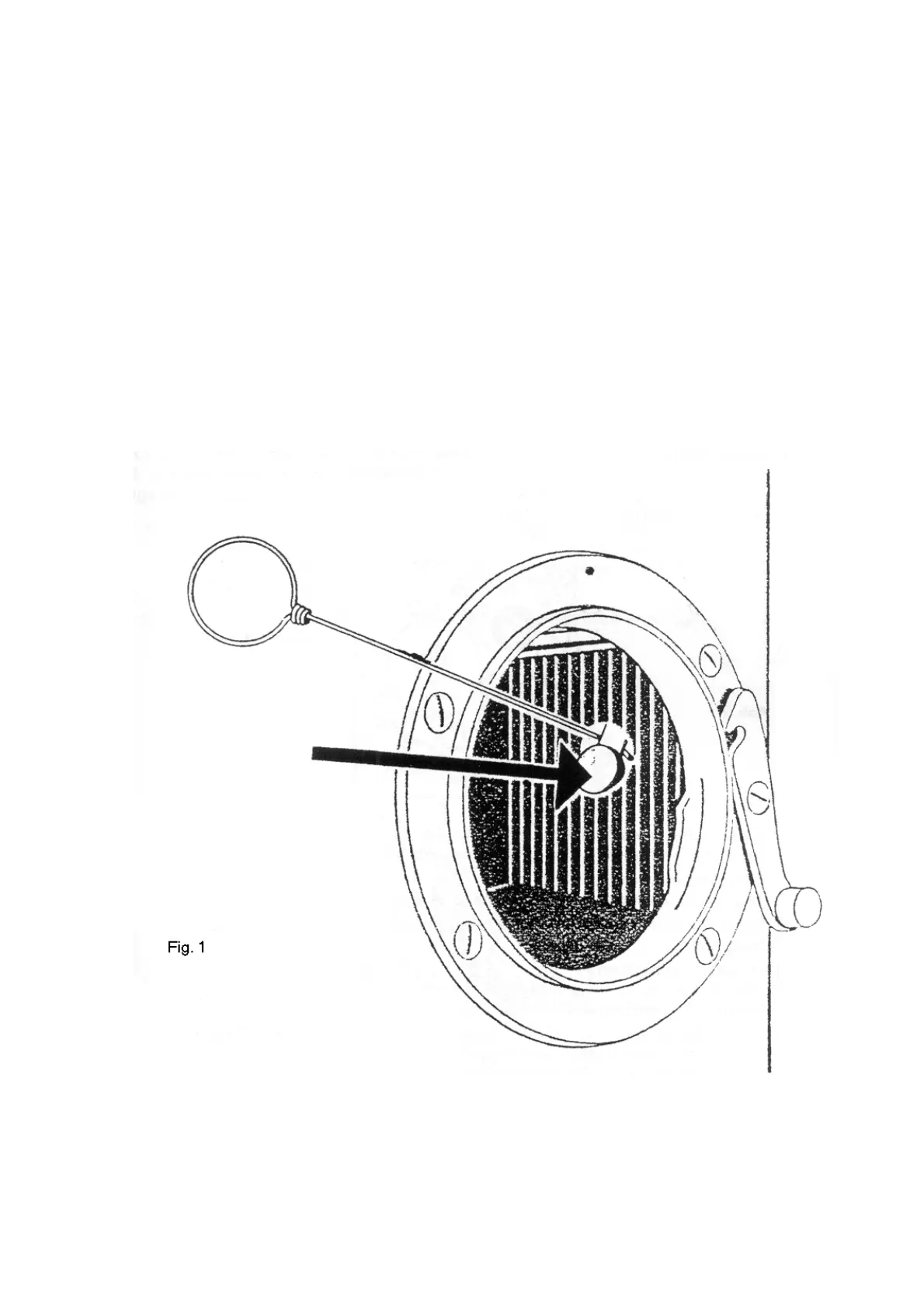

spring 300.23 U 5 with the mirror hook (see diagram Fig. 1). Bend the chamfered rivet on
the mirror retaining spring downwards, until the greatest sharpness is obtained at the infinity
mark of the lens.
b) Example 2:
The greatest sharpness is not yet obtained at the infinity stop of the lens (i.e. the point of
sharpest focus would lie beyond the infinity stop): hook the mirror retaining spring (with a
screwdriver or knife) behind the chamfered rivet and bend it into the mirror chamber until
the greatest sharpness is obtained at the infinity mark on the lens.
