10 | PENTAIR EZ-RO INSTALLATION AND OPERATION GUIDE FOODSERVICE.PENTAIR.COM

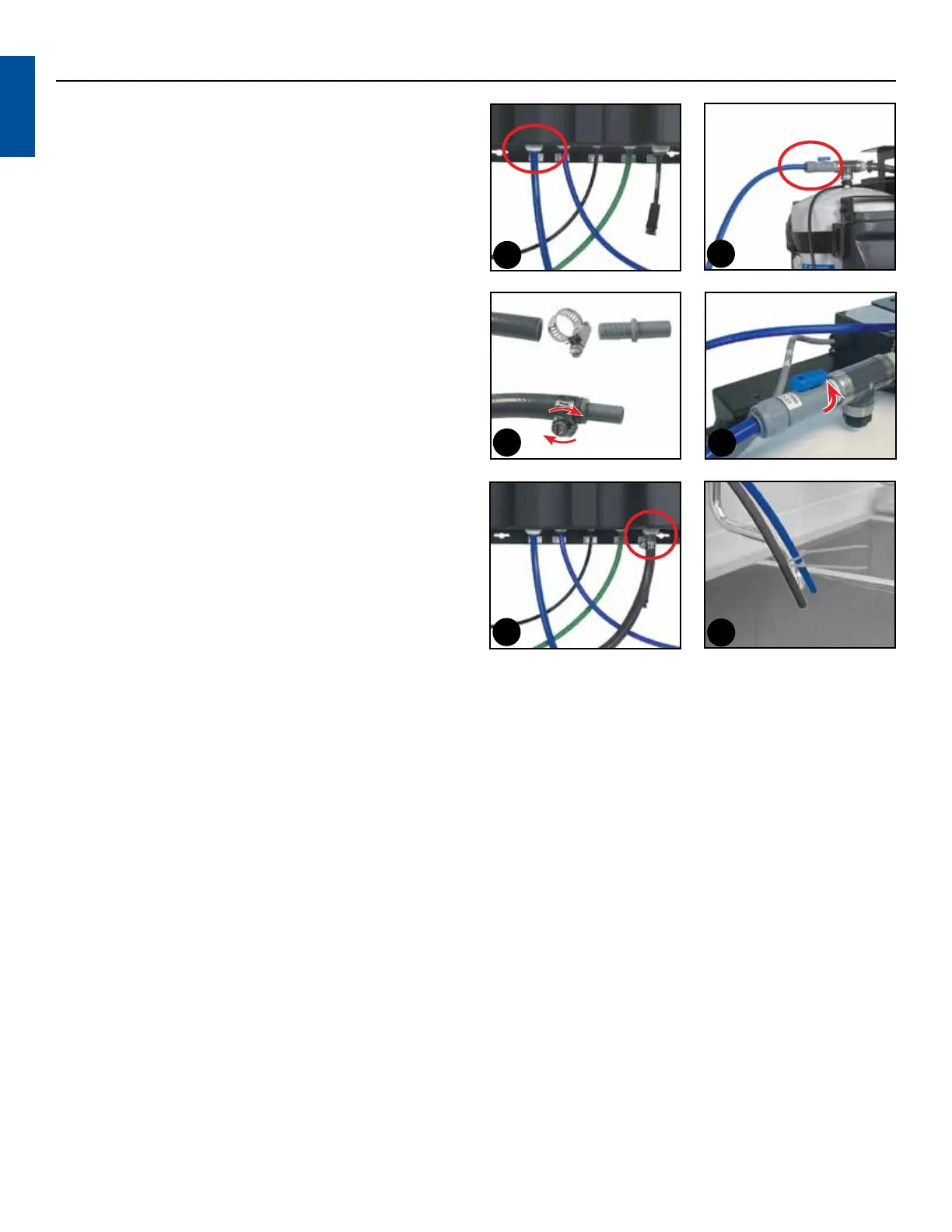

CONNECT TUBING (CONTINUED)
Return from ATM Tank Tubing Connections
(1/2" Blue Tubing)
9. Install 1/2" blue tubing to the RETURN FROM ATM
TANK port on the RO processor.
10. Cut tubing to length, to make connection to tank,
allowing some slack for maintenance of system and
tank. Install other end of 1/2" blue tubing into ATM
TANK OUTLET valve on tank. Make sure tubing is
inserted past second o-ring in tting.
NOTE: Cut tubing with a proper tube cutter for a clean,
round cut.
If using the Outlet Tubing Connection
(1/2" Gray Hose)
11. Slide band clamp onto the 1/2" gray tubing. Insert
1/2" hose barb adapter into the tube. Slide band
clamp close to end of tube and rmly tighten screw.
12. Make sure ATM TANK OUTLET valve is open.
13. Connect 1/2" adapter and hose assembly into
OPTIMIZED WATER OUT port on RO processor.
14. Run other end of the gray optimized outlet tube to a
clean sink or drain.
IMPORTANT: Do not connect tube to equipment yet.
Connection to equipment will follow ushing process.
