Water Treatment

Appliance - E359339

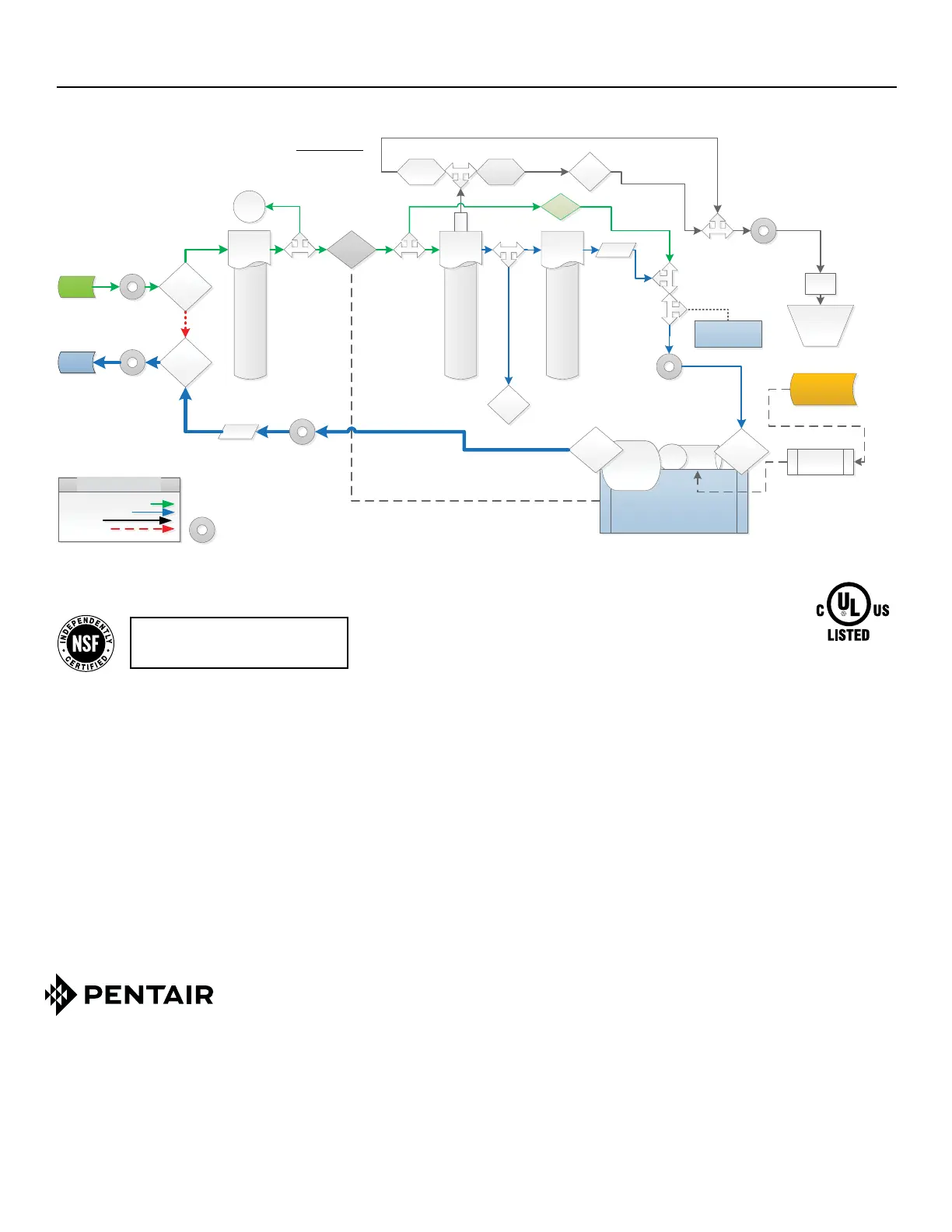

PLUMBING FLOW

PRE-FILTER

MINERAL ADDITION

RO MODULE

Stem

adpt

EZ-RO 375/650 ATM BLEND SYSTEM

PLUMBING

INLET

VALVE

Feed

Water

Equip

Posi�on 1

Posi�on 3

Pressure

Gauge

DRAIN

Check

V <0

OUTLET

VALVE

TEE

¼” Ball

Valve

¼” Ball

Valve

DRAIN Flow Restrictor:

Installed – (GREY) 1555 mL/M

Flow

Restrictor

Posi�on 2

Flow

Restrictor

AIR

GAP

REJECT

OUTLET

TANK

FEED

WATER IN

OPTIMIZED

WATER OUT

SAMPLE

PORT/VALVE

REJECT FLUSH

VALVE

DRAIN FLOW

RESTRICTOR

FLUSH FLOW

RESTRICTOR

Blend

Valve

TDS MONITOR

OPTIMIZED WATER

SOLENOID

VALVE

TEE

24 VDC

PUMP

ATM TANK

BUFFER TANK

2 GAL / 20PSI

24 VDC

PUMP

ATM TANK

BUFFER TANK

2 GAL / 20PSI

Electrical Outlet

120 / 220 V

Input

TANK INLET

3/8 VALVE

24VDC (10

Amp) Power

Supply

LINE COLOR CODELINE COLOR CODE

Non RO Treated Water

RO Treated Water

Drain Line

Bypass Line

Non RO Treated Water

RO Treated Water

Drain Line

Bypass Line

LINE COLOR CODE

Non RO Treated Water

RO Treated Water

Drain Line

Bypass Line

RETURN FROM

ATM TANK

TANK OUTLET

½ Valve

Check

V 0>

ATM Tank Size Op� ons:

16 / 30 / 50 Gallon Tanks

EXTERNAL RO

PORT CONNECTIONS

Daily Production Rate: 268.39 gpd

Eciency Rating: 45.01%

Recovery Rating: 41.54%

Min/Max Working Pressure: 50 - 100 psi (3.5 - 6.9 bar), non-shock

Min/Max Operating Temperature: 40 - 100°F (4.4 - 37.8°C)

Recovery rating means the percentage of the inuent water to the

membrane portion of the system that is available to the user as RO treated

water when the system is operated without a storage tank or when the

storage tank is bypassed.

Eciency Rating means the percentage of the inuent water to the system

that is available to the user as RO treated water under operating conditions

that approximate typical daily use.

System is Tested and Certied by NSF International

against NSF/ANSI 58 and CSA B483.1 for the

reduction of Total Dissolved Solids (TDS).

For Pentair Everpure product warranties visit:

https://www.pentair.com/assets/foodservice-warranty

Numerous patents pending on technology and other aspects of the product design.

For Pentair patent information visit:

http://pentair.com/patents
