EFN Series Fisheye IP Camera
12

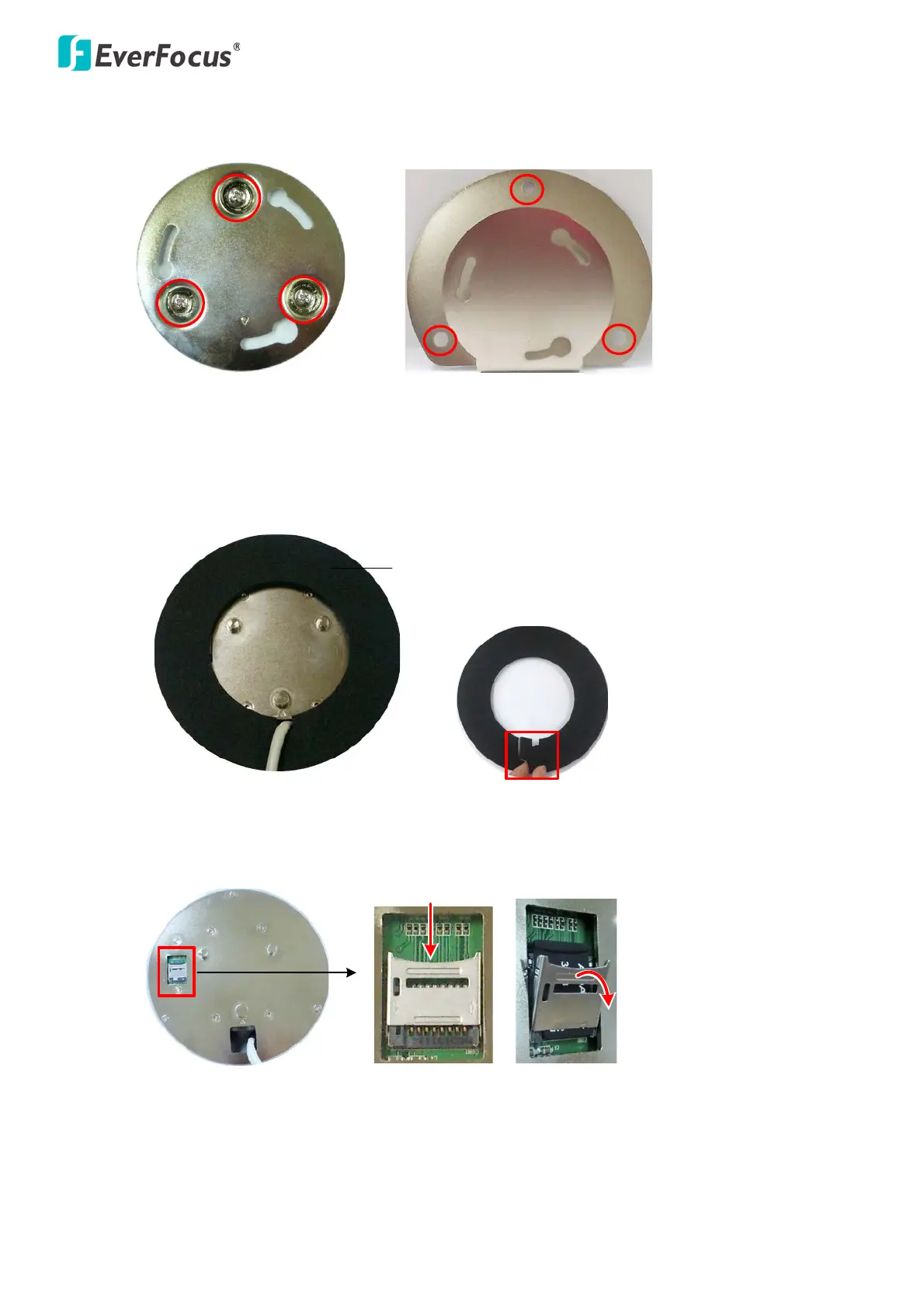

2. Insert the supplied three Anchors into the three holes and then screw the Base Plate / Tilting Wall
Mount Bracket to the wall using the supplied three Screws.
Base Plate
Tilting Wall Mount Bracket
3. If you are using the Base Plate, place the Spacer onto the rear side of the camera. This step is only for
the Base Plate mounting. Remove the cut-out from the Spacer only if you want to run the cables
along the wall.
Spacer
4. Optionally insert the micro SDHC / SDXC card to the push-pull type SD card slot on the rear side of the
camera. For the tested card brands, please refer to Appendix.
Push
Pull
Rear side of the camera
