5. Cables
The cables provide connections for network, power, audio input / output, and
alarm input / output.
Alarm Input / Output
LAN / PoE Cable
12VDC Power Input
Audio Output
Audio Input
LAN / PoE Cable
Power Cable (12VDC)

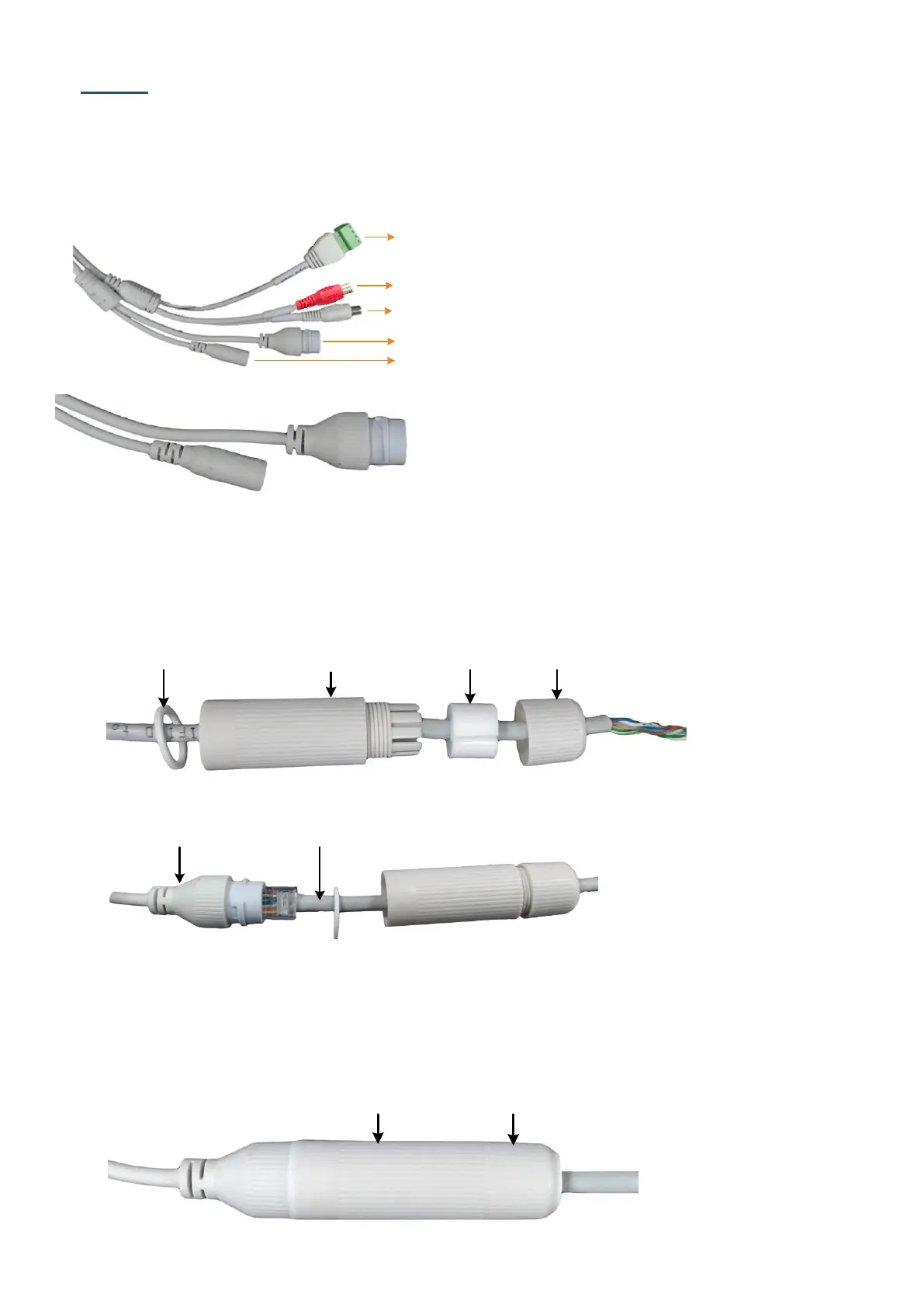

Connect the camera to the network using the supplied Cable Gland Kit.
a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)
through the supplied Waterproof Ring, Cable Gland, Stopper and Screw
Cap accordingly.
Waterproof Ring Cable Gland
Stopper Screw Cap
b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.
RJ-45 Cable
LAN/PoE Cable
c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45
Connector Cable.
Screw Cap
Cable Gland
