2.1.9. Analog References

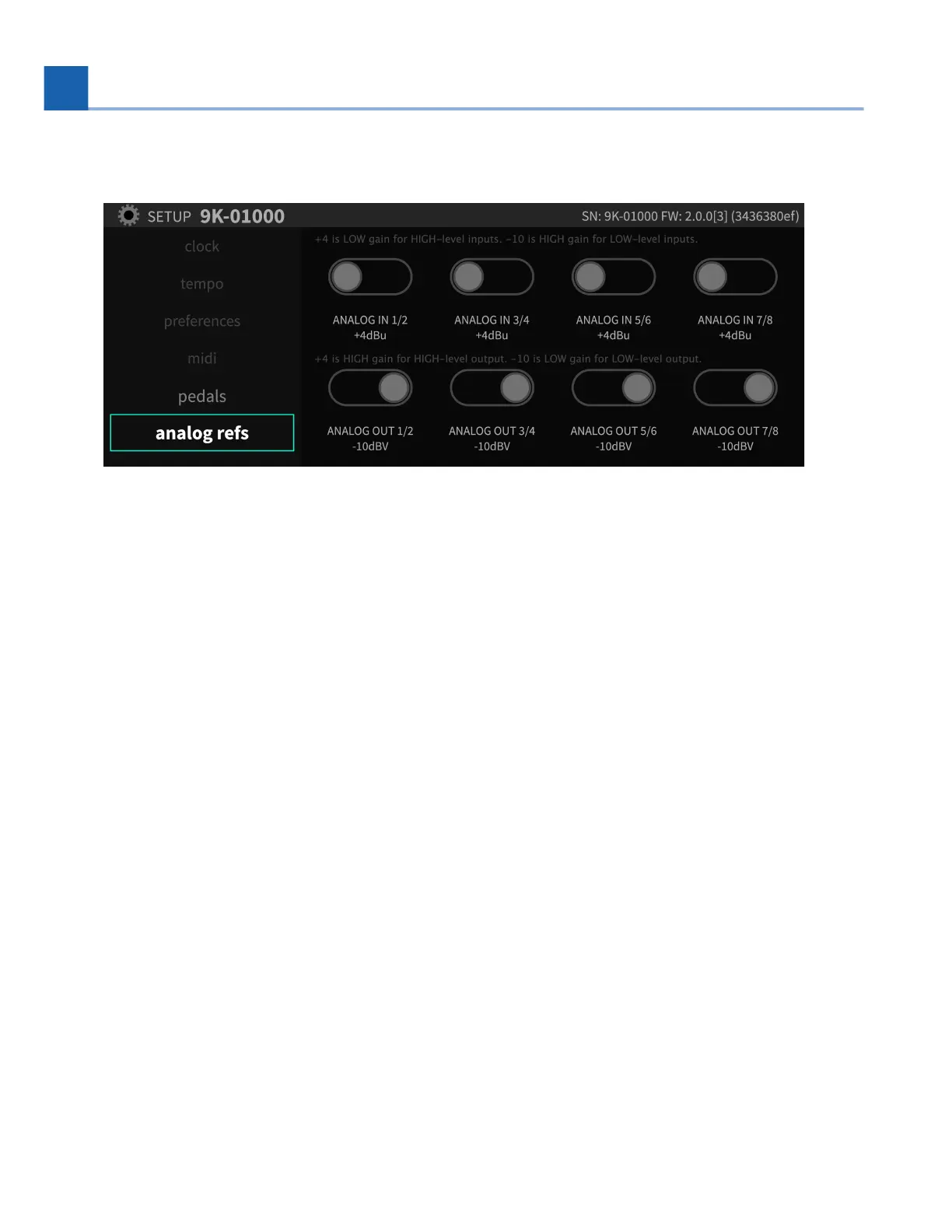

The Analog Reference Levels screen allows you to set the levels for the eight analog inputs and outputs
present on the DB-25 connectors. This allows the H9000 to be installed in a wide variety of
environments, and interface at an opmum level with professional and some consumer equipment.
Each pair of analog inputs and outputs on the DB-25 connectors can be separately selected between
-10 dBV and +4 dBu.
Use the cursor buons to highlight the specific pair of inputs or outputs you wish to adjust. Opons
include:
Analog In 1/2
Analog In 3/4
Analog In 5/6
Analog In 7/8
Analog Out 1/2
Analog Out 3/4
Analog Out 5/6
Analog Out 7/8
Once you have highlighted the appropriate pair of inputs or outputs, press the Enter buon to switch to
the alternate operang level.
Note that the rear panel XLR analog connectors are a duplicate “mult” of channels 1-2 of the eight-
channel analog DB-25 connectors. As a result, any reference level changes made to analog input or
output 1-2 of the DB-25 connector will also affect the XLR inputs and outputs.
•
•
•
•
•
•
•
•
26
2. SETUP
