SC307

SC305

EVE Audio product manual

Volume Mode Low Filter

8 9

OPERATION

OPERATION

3.5. Volume Mode

• Level adjustment

The maximum input level for balanced (XLR) and unbalanced signals (RCA)

is 8dBu. Higher levels produce distortion due to the overloading of the

analog to digital converter.

Given that many professional studio devices can produce in excess of 8 dBu,

the LED ring will start blinking whenever the AD converter is overloading.

If that is the case, the output level of the source should be reduced.

• Volume adjustment

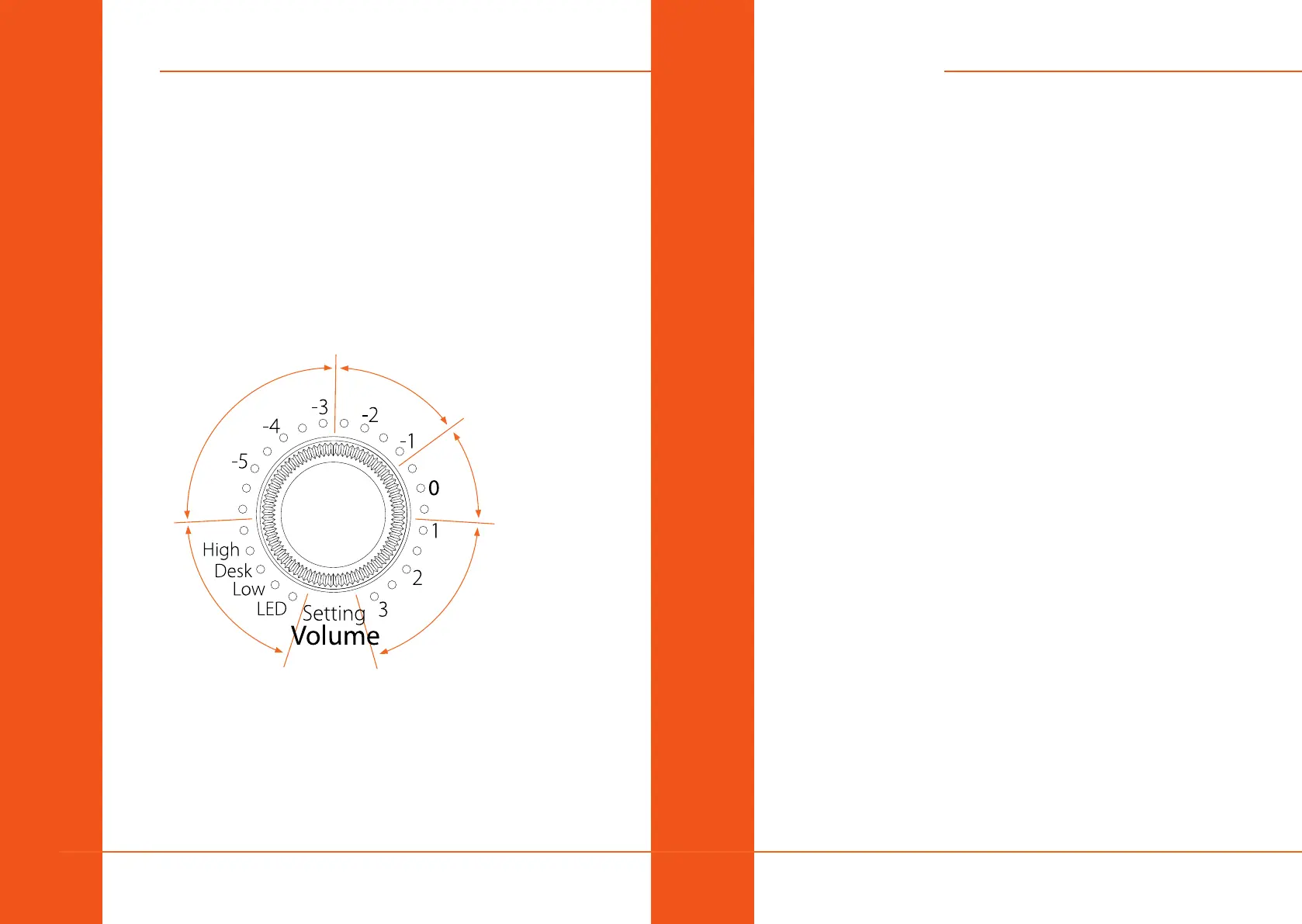

Turn the Volume control to adjust the volume. Depending on the LED

mode selected (see LED Mode), the volume will be displayed as a dim/

bright circle or as a dim/bright point.

1 Step = 2 dB

(1 LED = 4 Steps)

1 Step = 1 dB

(1 LED = 4 steps)

1 Step = 0.5 dB

(1 LED = 4 Steps)

1 Step = 0.5 dB

(1 LED = 4 Steps)

1 Step = 0.5 dB

(1 LED = 2 Steps)

-80 dB

-48 dB

-20 dB

-12 dB

-8 dB

0 dB

The control’s response curve is not linear. The increments become ner as

the volume increases:

-80dB (minimum) to -48dB: 2dB

-48dB to -20dB: 1dB

-20dB to 0dB (maximum): 0.5dB

• Mute

To put the monitor in Mute Mode, turn the Volume control counter

clockwise until you reach the minimum level. When the LED on the left

end lights up dimly the Mute Mode is activated.

! To exit the Mute Mode simply turn the control clockwise.

3.6. Settings Menu

Press the control once to enter the Settings menu. Here you can set three

dierent lters (Low, Desk, High) as well as the LED ring’s behavior. The LED

of the currently active function blinks.

Turn the control to choose the lter or LED mode desired. The blinking

LED indicates the function selected while the steady-on LED indicates the

value assigned to that function.

Press the control to conrm your selection. The blinking will stop once the

selection is conrmed.

Turn the control to adjust the lter or the LED behavior.

When you are satised with the setting press the control again to go back

to the Settings menu. You can then select and edit another function.

! To exit the Settings menu press and hold the control for three seconds or

simply wait 10 seconds. The loudspeaker will then return automatically to

the Volume Mode.

3.7. Filters

The lters of the EVE Audio monitors were specially developed to oer you

the possibility of adjusting your monitoring system to the characteristics

of your room. These lters help correct the alterations to the frequency

response produced by the room acoustics and listening distance. Do note

that the corrections of bad room acoustics with lters will only deliver

average results. In any case, you should try to use the lters as little as

possible.

3.8. Low Filter

The Low-Shelf Filter allows you to boost or attenuate frequencies below

300Hz in 0.5dB steps. Use this lter whenever the acoustics of your room

cause problems in the low frequency range.
