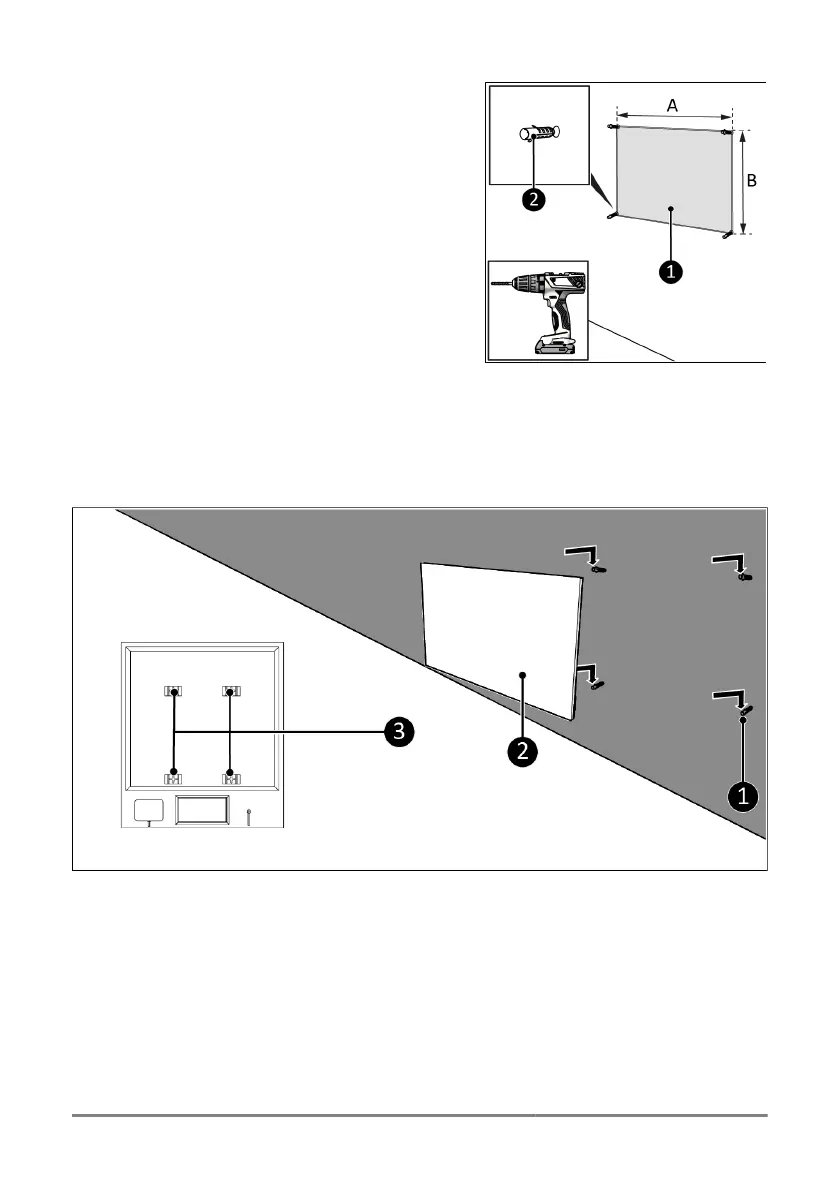

4. Place the included assembly drawing

(Figure 18,pos.1) against the wall and

mark the four holes.

Sani Mirror Led Wi-Fi 400W:

• A=500mm; B=380mm.

Sani Mirror Led Wi-Fi 600W:

• A=700mm; B=380mm.

5. Drill four holes (8mm) at the marked

spots.

Figure 18.

6. Make sure the screws sck out 5mm.

7. Place the brackets (Figure 19,pos.3) on the back of the device over the screws in the wall

(Figure 19,pos.1).

Figure 19.

23
