The device is packed in one box. Remove all packaging material and check that the device is not

damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the

packaging for safe storage and transport.

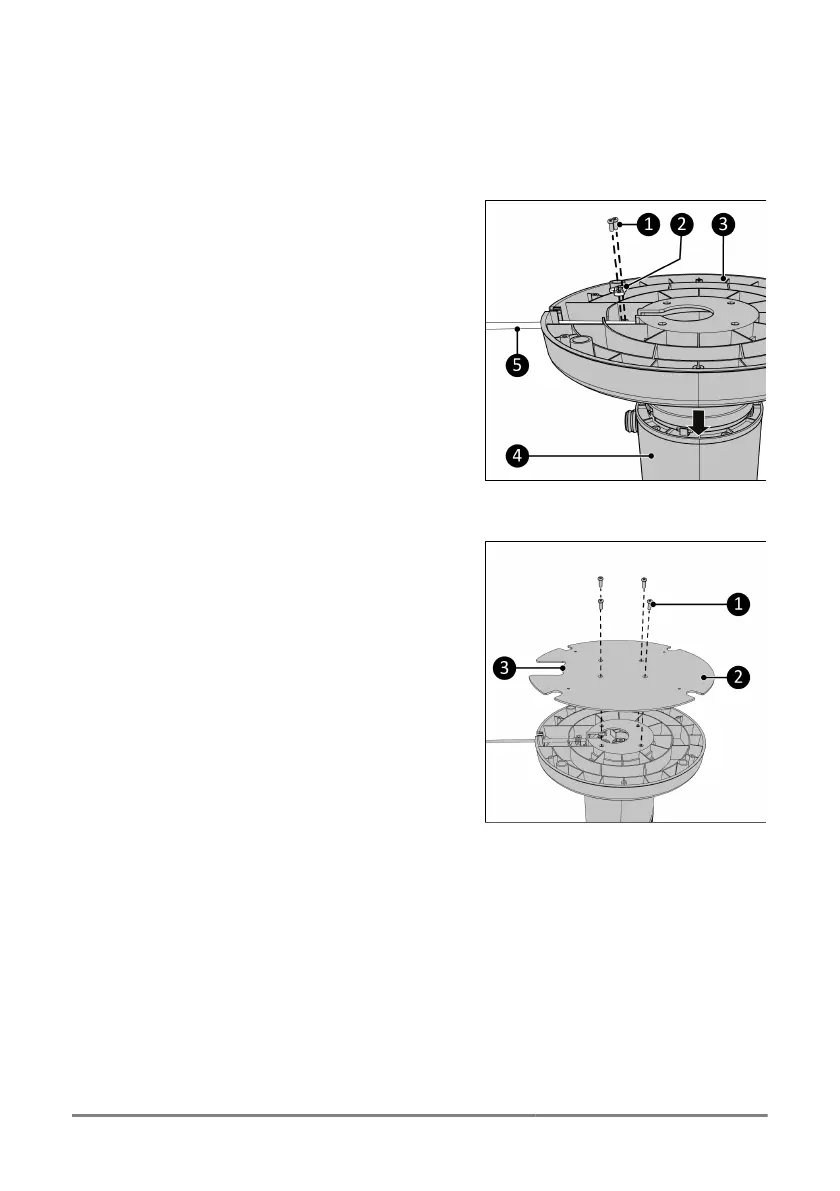

Installing the base

1. Remove the two screws (Figure 15,pos.1)

from the cable holder (Figure 15,pos.2).

2. Pass the cable holder through the middle

of the device base (Figure 15,pos.3) and

through the opening in the side of the

base.

3. Reaach the cable holder with the two

screws.

4. Place the base onto the main unit

(Figure 15,pos.4).

Figure 15.

5. Place the boom plate (Figure 16,pos.2)

onto the base. Make sure the opening

(Figure 16,pos.3) is posioned above the

power cable.

6. Secure the boom plate with the 4

boom plate screws (Figure 16,pos.1).

Figure 16.
