DMX operation

Setting the number of DMX channels and the DMX starting address

For operation with a controller with DMX512 protocol, the device is equipped with 24 control channels.

However, it can also be switched to a mode with 3, 4, 5, 6, 8, 9 or 16 channels if different functions are

required. To be able to operate the device with a DMX controller, the DMX starting address must be set. The

starting address depends upon which DMX controller is being used. Please refer to the controller’s

documentation.

1 Press the MENU button so many times until Addr is indicated in the display. Confirm with the ENTER

button.

2 The display indicates 3 CH (3 DMX channels), 4 CH (4 DMX channels), 5 CH (5 DMX channels), 6 CH (6

DMX channels), 8 CH (8 DMX channels), 9 CH (9 DMX channels), 16 CH (16 DMX channels) or 24 CH

(24 DMX channels). Use the buttons UP and DOWN to select the desired DMX channel mode. Confirm

with the ENTER button.

3 Now the display indicates the menu item for the DMX start address d***. Use the buttons UP and DOWN

to set the address. Confirm with the ENTER button.

4 A dot will flash when DMX signals are being received. If no control signals are available, the display will

flash.

Note: Please make sure that you do not have any overlapping channels in order to control each device

correctly and independently from any other fixture on the DMX chain. If several devices are addressed to the

same address, they will work synchronously.

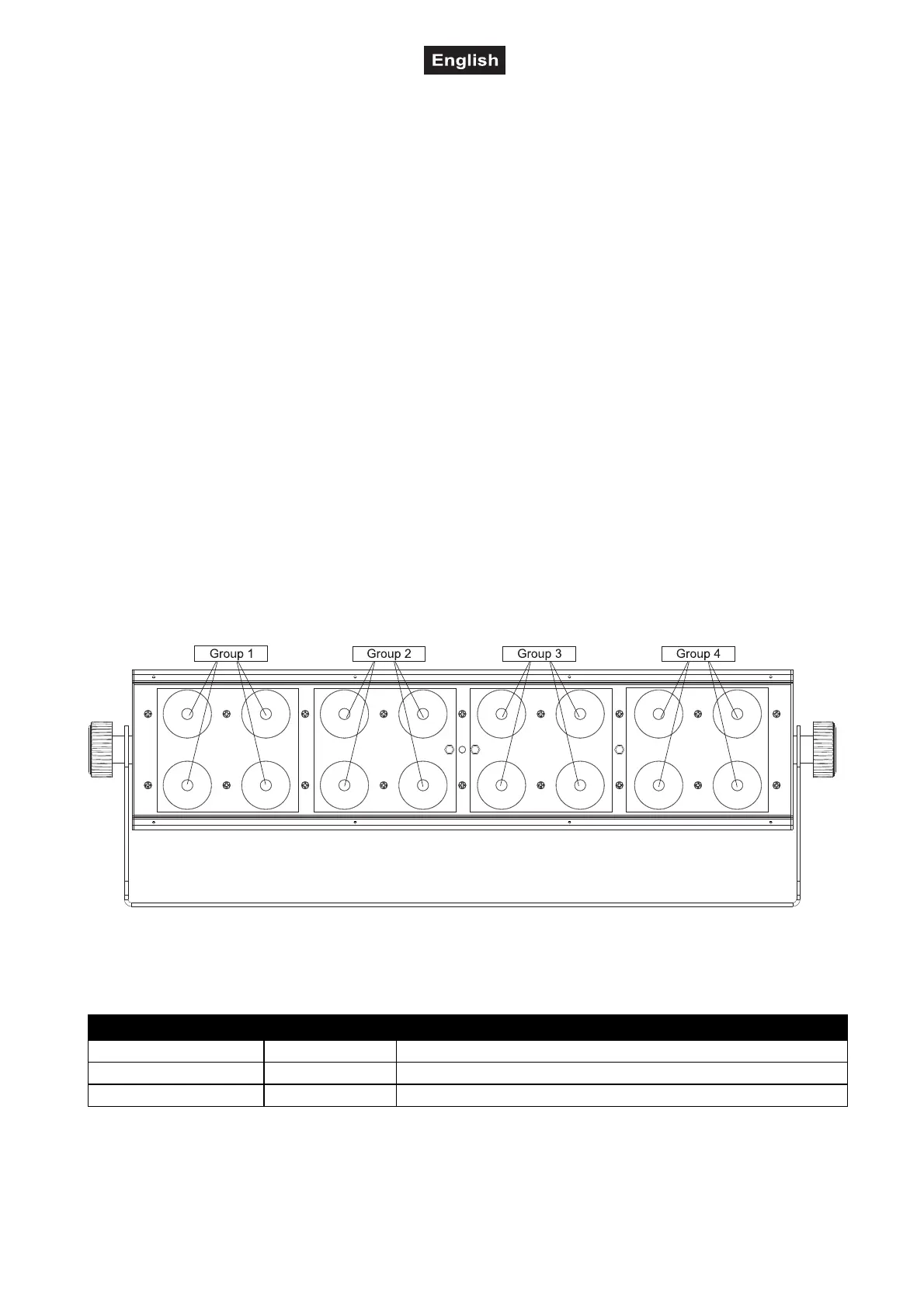

The LEDs of the device are separated into 4 pixel groups of 4 pixels each, which can be individually

controlled with the following DMX protocol.

Functions in DMX mode

3-channel mode

Channel Value Function

000 – 255

Red, increasing intensity 0 – 100%

000 – 255 Green, increasing intensity 0 – 100%

000 – 255

Blue, increasing intensity 0 – 100%
