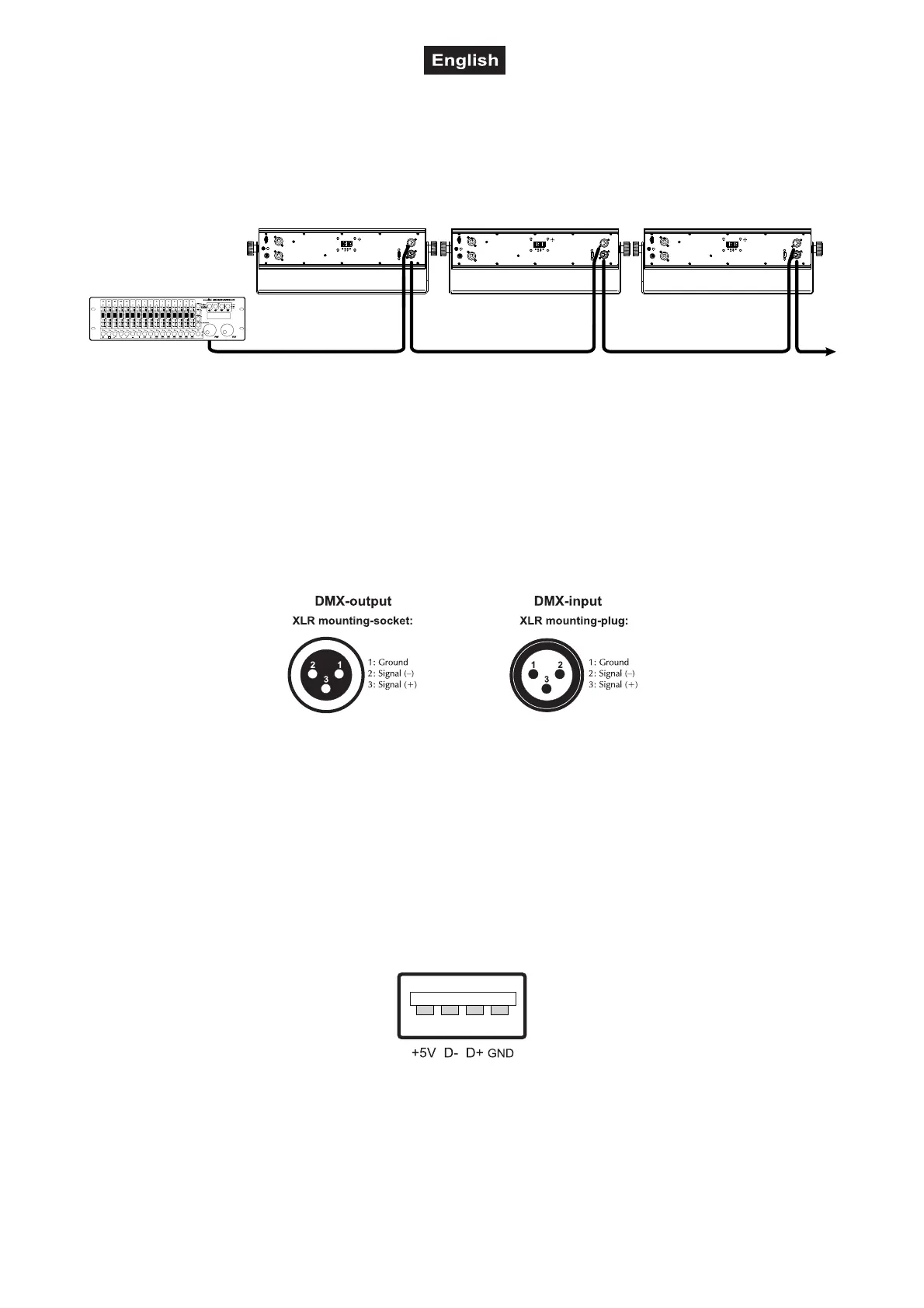

CONNECTIONS

DMX512 control

A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin XLR

connectors for DMX connection.

1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.

2 Connect the DMX output DMX OUT of the light set to the DMX input of the next unit in the chain. Always

connect one output to the input of the next unit until all units are connected.

3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between

Signal (–) and Signal (+) in the DMX output of the last unit.

4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended

to insert a DMX level amplifier to ensure proper data transmission.

XLR connection:

Wireless DMX transmission with QuickDMX

The device features an alternative DMX input for a QuickDMX receiver (sold separately). CRMX and WDMX

receivers are compatible and can also be used. The connector allows a DMX control signal to be transmitted

wirelessly to the device, eliminating the need for complex wiring to the DMX controller. The connector is

designed as a USB port which provides the required 5 V operating voltage for the receiver.

Occupation of the USB port:

MIC

ENTER

DMX IN

DMX OUT

USB

POWER IN

POWER OUT

FUSE

SAFETY

HOOK

DMX-Controller

Program

Chase32 Step100

MIC

ENTER

DMX IN

DMX OUT

USB

POWER IN

POWER OUT

FUSE

SAFETY

HOOK

MIC

ENTER

DMX IN

DMX OUT

USB

POWER IN

POWER OUT

FUSE

SAFETY

HOOK

Device 1

Starting Address 1

Device 2

Starting Address 25

Device 3

Starting Address 49
