00159459, Version 1.0

37/44

DMX operation

To be able to operate the device in DMX mode, it must first be set to DMX Mode under the Mode menu item

(see Menu structure).

Setting the number of DMX channels and the DMX starting address

For operation with a controller with DMX512 protocol, the device is equipped with 42 control channels.

However, it can also be switched to a mode with 4, 10, 15 or 40 channels if different functions are required.

To be able to operate the device with a DMX controller, the DMX starting address must be set. The starting

address depends upon which DMX controller is being used. Please refer to the controller’s documentation.

1 Press the button MENU until the display shows ADDR. Confirm with the ENTER button. The display

indicates the DMX starting address setting (001). Use the UP and DOWN buttons to set the desired

starting address and confirm with ENTER.

2 Menu item Chan is then indicated on the display. Confirm with the ENTER button. The menu for the

DMX modes is called up. Use with the ENTER button to select the desired DMX channel mode: 4CH (4

DMX channels), 10CH (10 DMX channels), 15CH (15 DMX channels), 40CH (40 DMX channels) or

42CH (42 DMX channels).

3 When receiving DMX control signals, the DMX starting address 001, bottom left, lights up continuously in

the display. If no DMX mode is available, the DMX starting address flashes in the display.

Note: Please make sure that you do not have any overlapping channels in order to control each device

correctly and independently from any other fixture on the DMX chain. If several devices are addressed to the

same address, they will work synchronously.

The LEDs of the device are separated into 10 LEDs, each with RGB/WW, which can be individually

controlled using the following DMX-protocol. (see graphic).

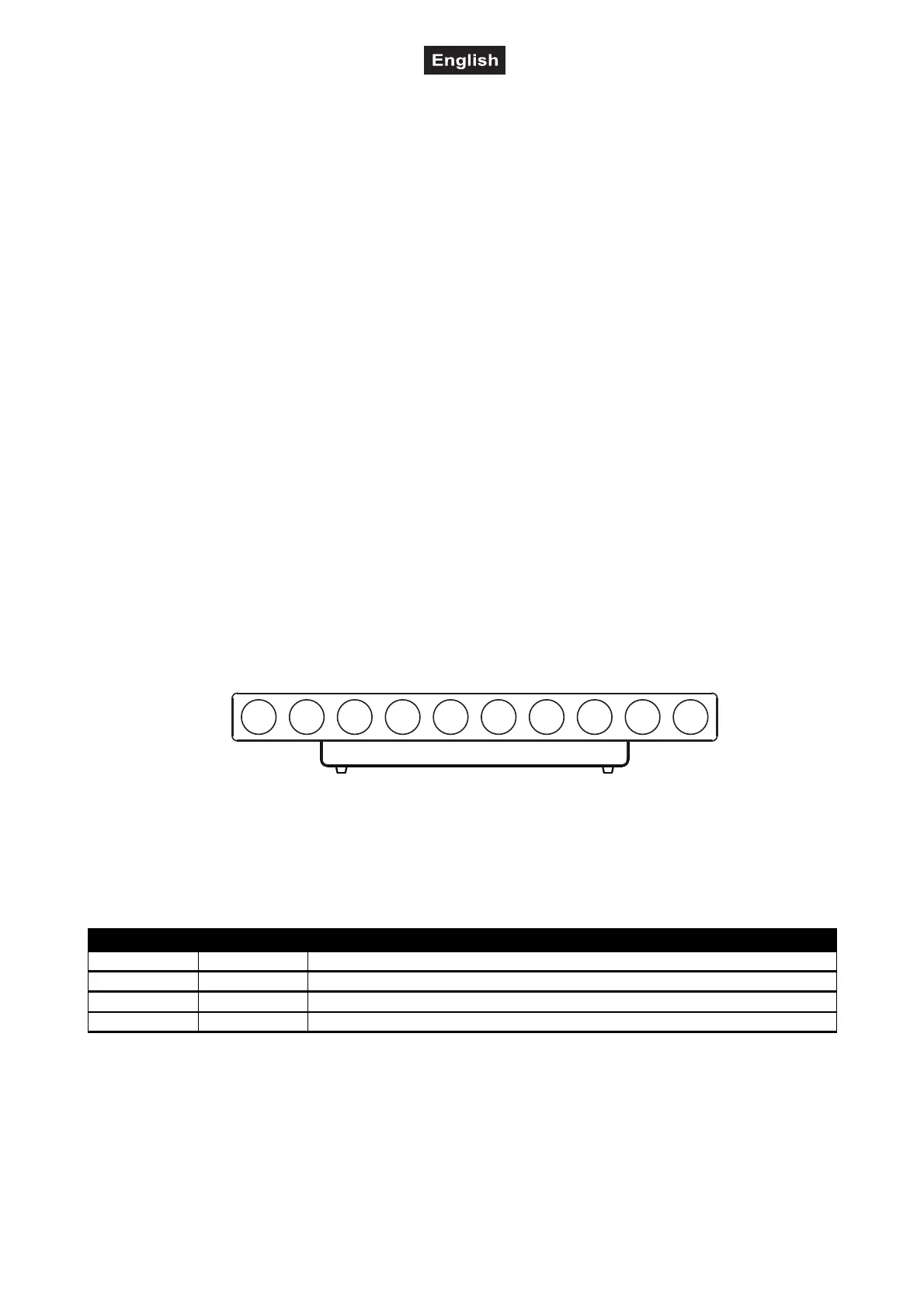

Pixel arrangement:

Functions in DMX mode

4-Channel-Mode

Channel Value Function

000 – 255

Red

increasing brightness 0 – 100%

000 – 255

Green

increasing brightness 0 – 100%

000 – 255

Blue

increasing brightness 0 – 100%

000 – 255

Warm white

increasing brightness 0 – 100%

P10

P9 P8 P7 P6 P5 P4 P3 P2
