Battery

The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery

contacts prevents the battery from being discharged during storage. Prior to the first operation remove the

foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control

is not possible.

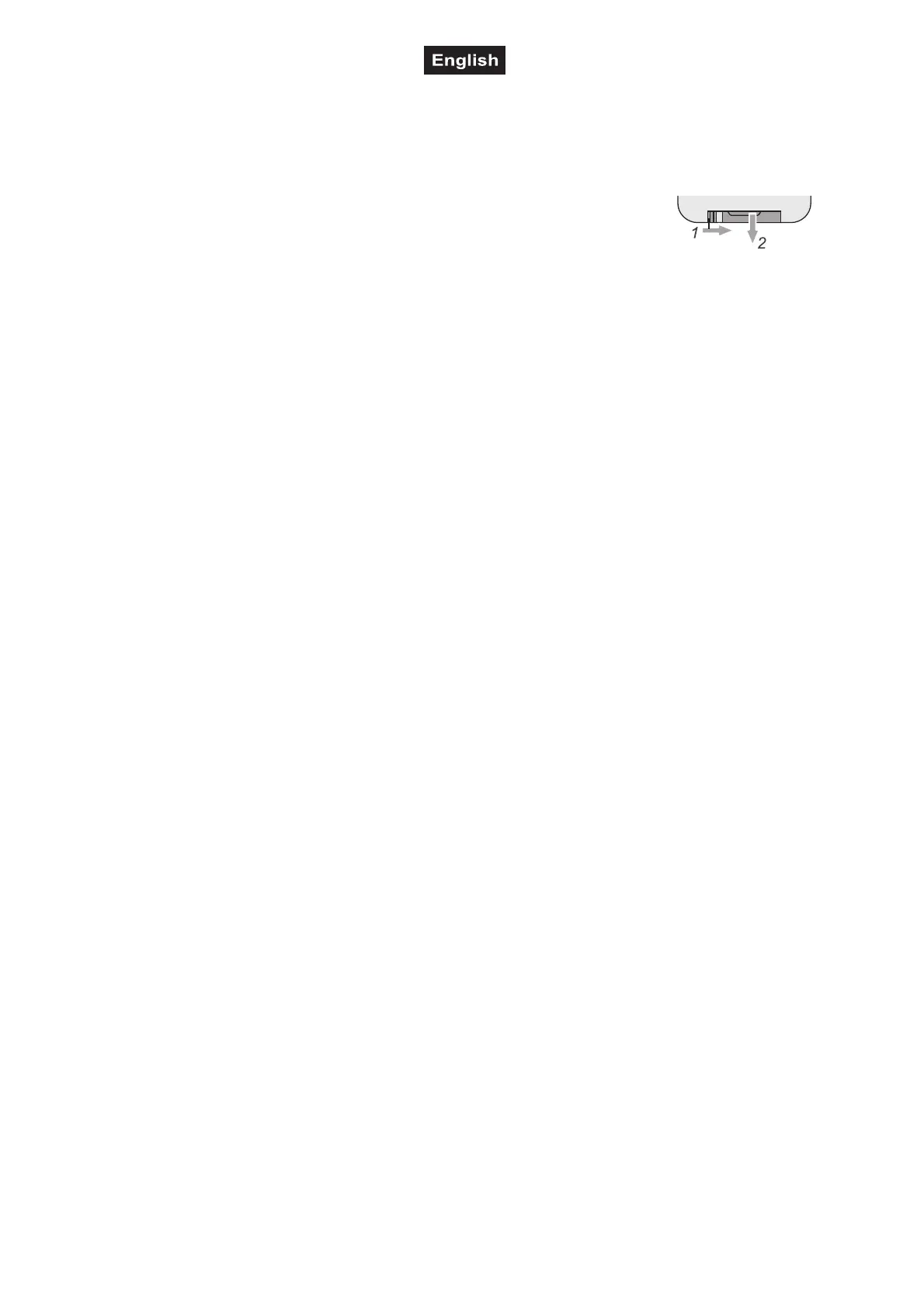

If the range of the remote control decreases, replace the battery. For this

purpose, on the rear side of the remote control press the small bar with the

groove to the right and at the same time remove the battery support. For

operation, one 3 V button cell type CR 2025 is required. When inserting, pay

attention that the positive pole of the button cell shows upwards in the support.

DMX operation

Setting the number of DMX channels and the DMX starting address

For operation with a controller with DMX512 protocol, the device is equipped with 29 control channels.

However, it can also be switched to a mode with 6, 8, 11, 21 or 25 channels if different functions are

required. To be able to operate the device with a DMX controller, the DMX starting address must be set. The

starting address depends upon which DMX controller is being used. Please refer to the controller’s

documentation.

1 Press the button MENU so many times until dПH is indicated in the display. Confirm with the ENTER

button. The display indicates the DMX start address.

2 Confirm with ENTER. The display indicates 6CH (6 DMX channels), 8CH (8 DMX channels), 11CH (11

DMX channels), 21CH (21 DMX channels), 25CH (25 DMX channels) or 29CH (29 DMX channels). Use

the UP and DOWN buttons to select the desired number of DMX channels.

3 Confirm with ENTER. Now the display indicates the menu item for the DMX start address d***. Confirm

with ENTER, then use the UP und DOWN buttons to set the address.

4 Confirm with ENTER. The display will not flash when DMX signals are being received. If no control

signals are available, the DMX address set will flash.

Note: Please make sure you do not have any overlapping channels in order to control each device correctly

and independently from any other fixture in the DMX chain. If several devices are addressed similarly, they

work synchronically.
