00147165.DOCX, Version 1.0
21/28
CONNECTIONS
Power Supply
The device uses an auto-range power supply that accepts input
voltages between 100 und 240 volts. The power connector is designed
according to protection class IP65.
Note: When not in use, make absolutely sure to close the connection
with the rubber sealing cap on the device to prevent moisture and dirt
from penetrating.
1 Connect the device via the enclosed mains cable to a grounded mains socket. Thus the unit is switched on.
2 To switch off the unit, disconnect the power plug.
3 Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
Note: To supply power to several devices in series, you require a Y-mains adapter cable. (
See chapter Accessories
).
Matching connection cables with special plugs (Y-mains adapter cables) are optionally available.

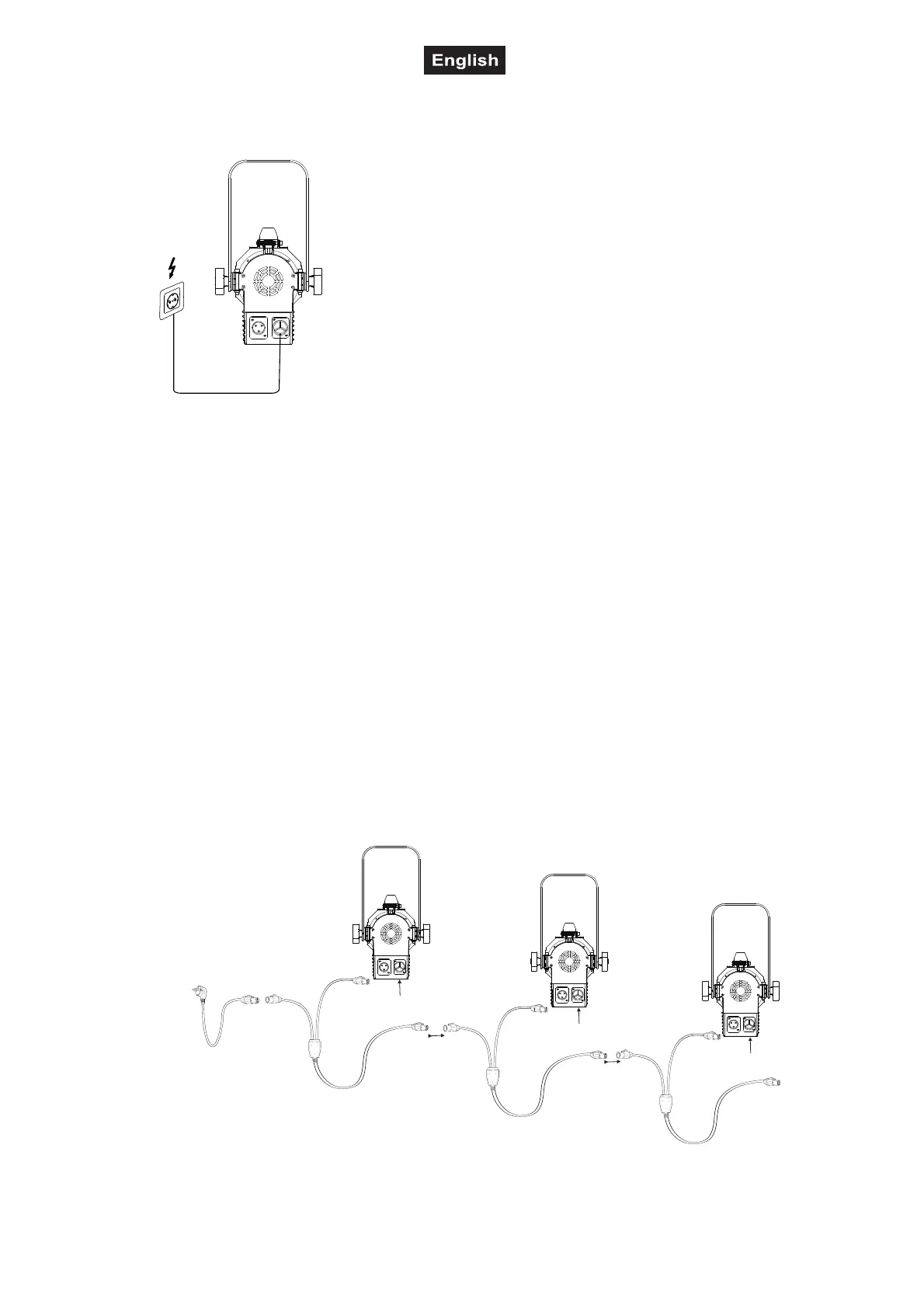

Mains connection for multiple devices via an optionally available Y-mains adapter cable (see graphic):
1 Connect the enclosed power cord (F-socket) to the M-plug of the Y-mains adapter cable.
2 Connect the F-socket of the adapter cable to the device. Now connect the second F-socket of the first
adapter cable to the M-plug of the second adapter cable.
3 In this manner, up to 8 devices can be linked at 230/240 input voltage and up to 4 devices at 110/115 input
voltage.
4 Connect the device via the enclosed mains cable to a grounded mains socket. Thus the unit, or rather the
units, is/are switched on.
5 To switch off the unit, disconnect the power plug.
6 Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
Note: When not in use, be sure to close the unused plug or socket with the supplied rubber sealing cap to prevent
moisture and dirt from entering.
M
F
F
M
F
F
M
F
F
