EFL60W30V1/EFL120W30V1/EFL200W30V1/EFL60W40V1/EFL120W40V1/EFL200W40V1
V. 02 – 22/09/2020 7 ©Velleman nv
Choosing an Appropriate Location
• Please avoid installing the appliance upside-down in order to ensure its watertightness.
• The appliance should be fixed to a stable outdoor wall made of a non-flammable material
approximately between 0.5-3.0 m above the ground and at an angle of ± 60°, preferably
in a location under eaves where the unit is protected from the elements and shielded from
direct sunlight.
• Do not install the appliance close to air conditioning vents, radiators, etc.
Mounting and Connection
1. This appliance does not have a built-in device to disconnect it from the electric mains.
Make sure to electrically isolate the luminaire before installation or maintenance activities
are performed.
2. Use the mounting bracket to determine the location of the mounting holes.
3. Drill the holes and secure the bracket using screws and wall plugs.

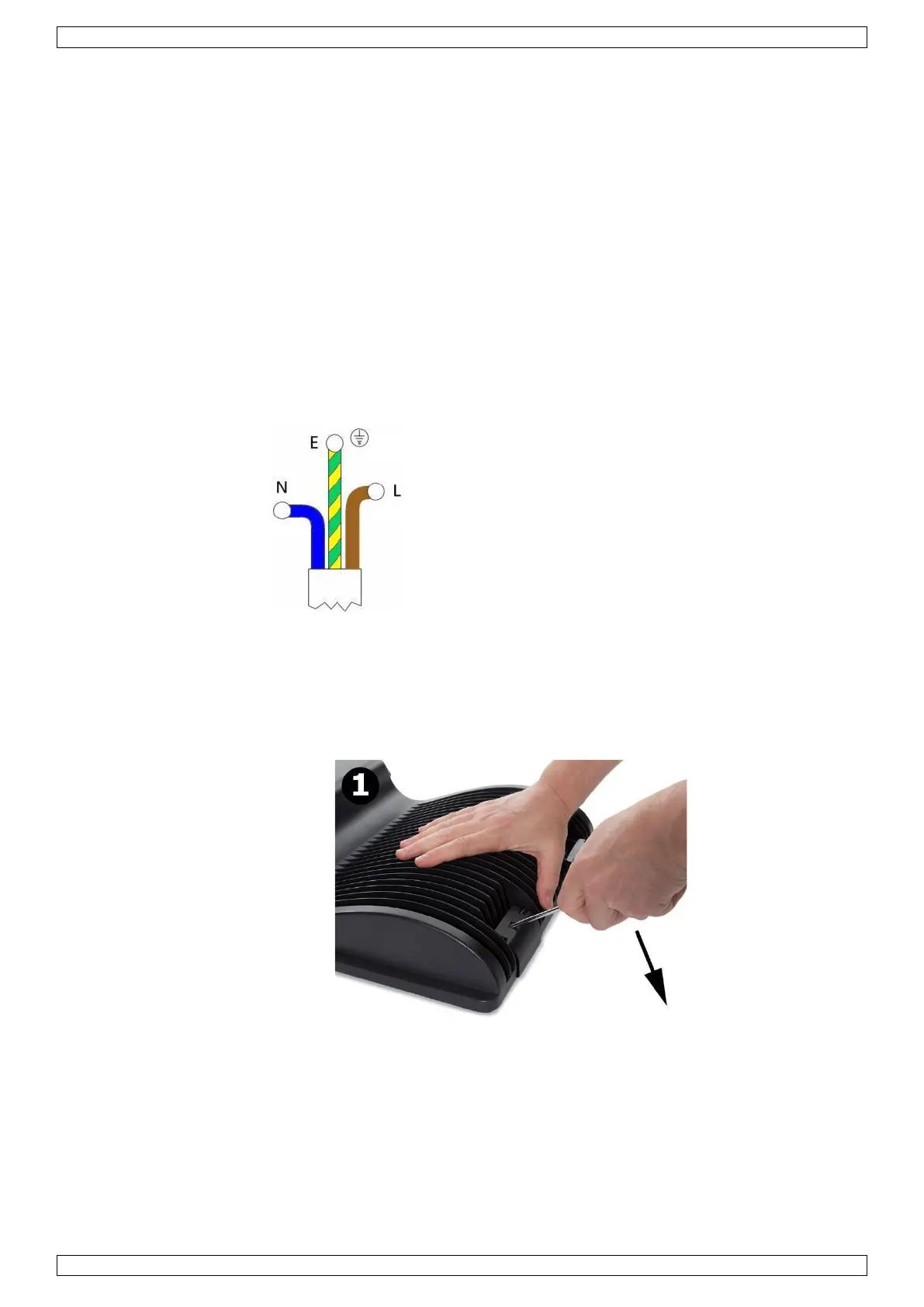

4. Connect the power cable to the screw terminal. Make sure there is no strain on the cable;
leave sufficient slack.
N = neutral, blue
E = earth, yellow/green
L = line, brown
5. Tilt the lamp in the desired angle and tighten the hinges.
Changing the Lenses
Other lenses are available if you want to change the beam angle. To open the appliance, insert
a screwdriver into the clamp hole and press down to unlock.
