W70G-EX870V2Q3 Page 2
Copyright 2022 EtherWAN Systems, Inc. All Rights Reserved 12/05/2022
Installation Guide
EX87000 Series | Hardened Managed Ethernet Switch
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS
RESTREINT.
This equipment must be connected to Protective earthing (PE) to AC mains
ground. The protective earthing conductor shall be minimum 18 AWG and having
green-and-yellow insulation. The thread diameter of screw type terminal shall be
minimum 3.5mm.
The ground wire should be installed first (earlier than live and neutral wires) and
then removed. The grounding wire should be longer than live and neutral wires.

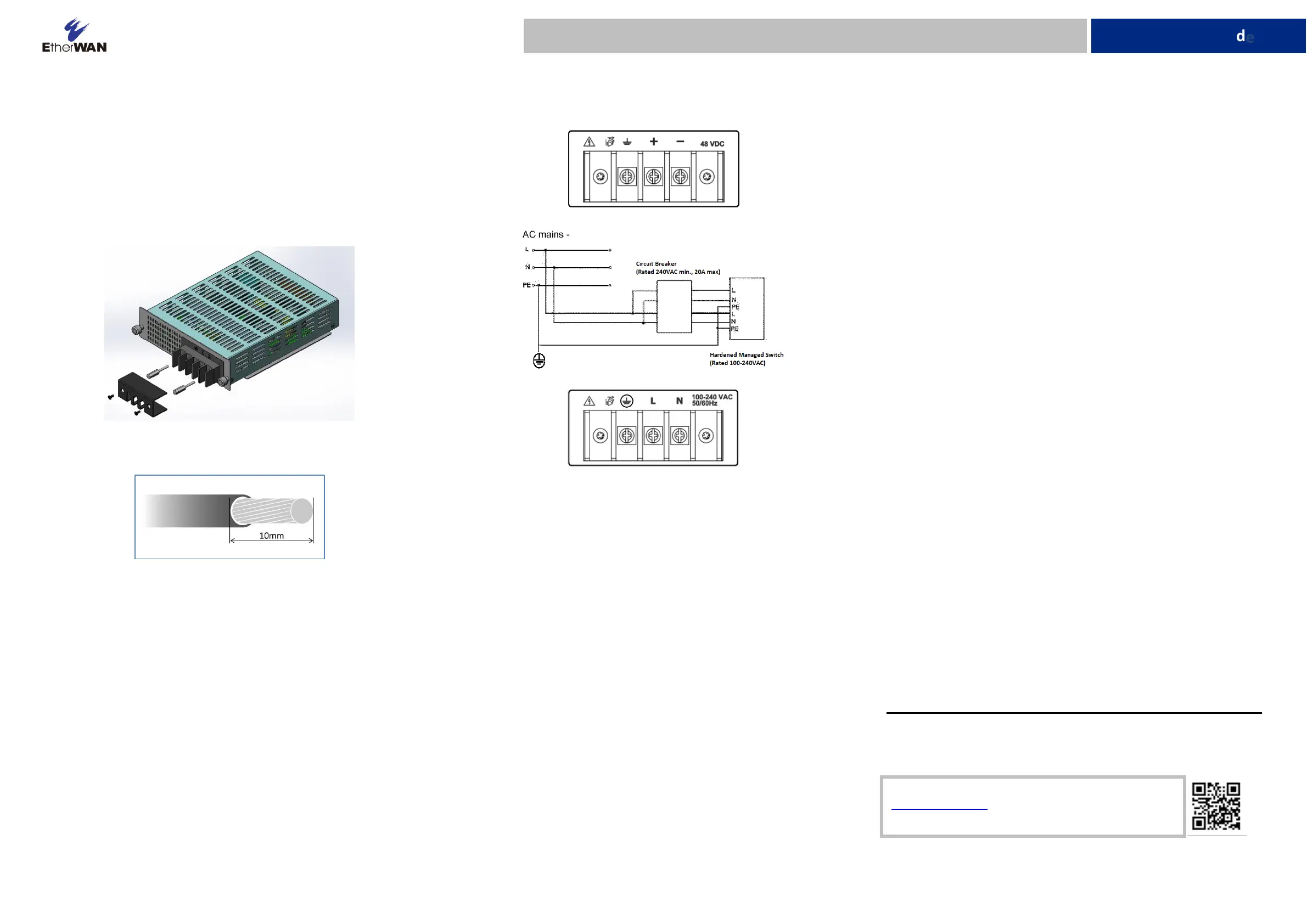

When wiring the switch to power, unscrew the two retaining screws that hold the
protective cover in place. The metal protective cover should be reattached after
the wiring is completed to avoid the danger of electric shock.
When stripping the cable sheath for connection to the terminal block, leave only
10mm of wires exposed for the connection.
The power cord shall be IEC 60227 certified, rated 0.75 mm2 x 3C or UL
recognized minimum 18AWG.
Terminal Block:
This product is intended to be supplied by certified DC power source and rated
output rating: 48 VDC, 1 A minimum.
AC Terminal Block
AC power rating current is 0.8A. All power connection wiring by a qualified
electrician in accordance with National Electrical Code, ANSI/NFPA 70 and
Canadian Electrical Code, Part I, CSA C22.1. An IEC certified or UL listed single-
phase type circuit-breaker, rated maximum 20A, shall be installed between mains
circuit and equipment.
Thumbscrews should be tightened with a tool after both initial installation
subsequent access to the panel.
Note:
This equipment must use UL recognized Laser Class 1 optical transceiver.
Manufacturer information:
EtherWAN Systems, Inc.
33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City, 221 Taiwan
The full product manual can be downloaded from:
www.etherwan.com
