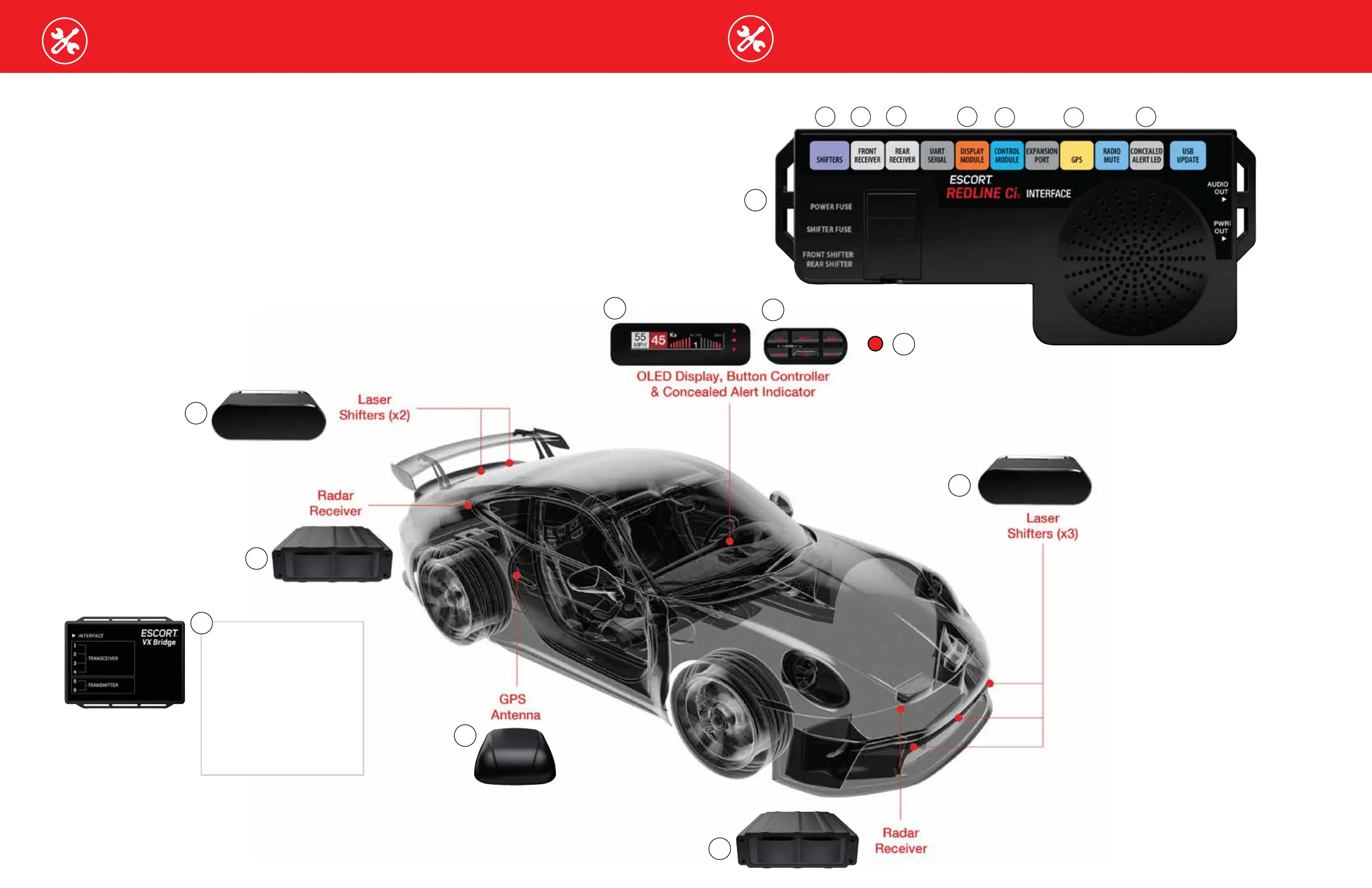

INSTALLATION SCHEMATIC OVERVIEW
Letter References For Components (Color Coded Connections To Interface)
A Interface
B Front Radar Receiver (White Stripe)
C 3 Front Shifter VX Sensors (Purple, optional, included with ESCORT Redline
Ci 360c plug into ports 1, 2 & 5 on Shifter VX Bridge Box)
D Shifter VX Bridge Box (optional, included with ESCORT Redline Ci 360c plugs
into Interface using supplied cable with no stripe or shrink)
E GPS Antenna (Yellow Shrink)
F Display Module (Orange Shrink)
G Control Module (Blue Shrink)
H Concealed Alert Indicator (Gray Shrink)
I Rear Radar Receiver (Gray Shrink, optional, included with ESCORT Redline Ci 360c)
J Rear Shifter VX Sensors (optional, included with ESCORT Redline Ci 360c)
I
F
G
H
E
B D
A
B
E
F
G
C
Shifter VX Bridge Box
1 The Bridge Box is weatherproof
so it can be installed in the engine
compartment or under the dash.
2 Connect Front Shifter VX Sensors to
ports 1 and 2 of the Bridge Box.
3 Connect Rear Shifter VX Sensors to
ports 3 and 4 of the Bridge Box.
4 The Bridge Box connects to the
Interface using the supplied cable with
a 6 pin modular plug on one end and a
round shifter plug on the other end.
D
J
I
Installation
Installation
H
12 13
