EN
Ermenrich PL40 Optical Level
Please carefully read the safety instructions and the user manual before using this product. Keep away from children.
Use the device only as specified in the user manual.
The kit includes: optical level, plastic carrying case, adjusting pin, hexagon wrench, user manual, and warranty.
Setting and leveling
• Place the tripod legs on the ground and adjust the tripod to the user’s eye level.
• Place the device on the tripod and screw it tight.
• You can carry the device by lifting the tripod. Hold it vertically in order not to damage the device.
• Use the leveling screws (9) to position the bubble level (10) in the center (Fig. 1). The device is leveled when the bubble
is in the center.

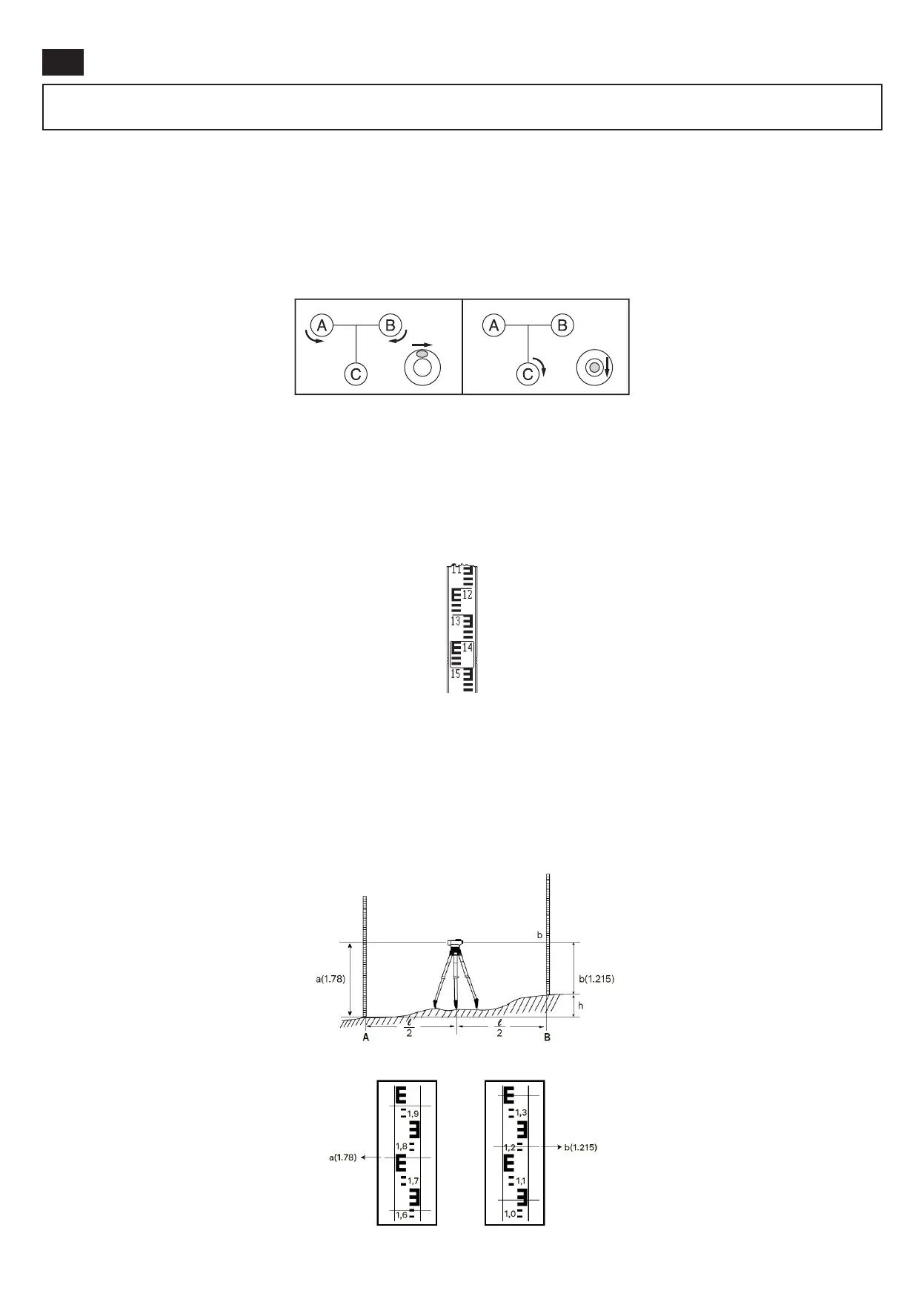

Figure 1
Aiming and focusing
• Remove the eyepiece cover (12). Aim the device at a bright object or hold a white sheet of paper in front of the objective
lens (7), then turn the eyepiece focusing knob (13) until the dark black crosshairs can be seen clearly.
• Aim the device at the leveling rod. If necessary, use the optical peep sight (6) for easy aiming.
• Turn the focusing knob (5) until you can see the graduation marks of the leveling rod clearly (Fig. 2).
• Align the crosshairs exactly to the center of the leveling rod by turning the horizontal drive screw (8).
Figure 2
Height difference measurement
• Put the leveling rods A and B in the vertical position. Place the device between the leveling rods A and B (Fig. 3).
• Focus the optical level on the center of the rod A. Record the height value of the leveling rod at the center of the crosshairs.
• Focus the optical level on the center of the rod B. Record the height value of the leveling rod at the center of the crosshairs
(Fig. 4).
• Calculate the height difference by subtracting the smaller height value from the larger one.
In Figure 3, for example, the height difference is 0.565m. Subtract the value of height B from the value of height A.
1.78 – 1.215 = 0.565
Figure 3
Figure 4
