Auto-Lock Drawer

*Drawer Row Numbers:

Lock Drawer:

• Wait 4 seconds for lock to engage automatically.

NOTE: Always ensure drawer is pushed in all the way and engaged with lock.

Drawer Troubleshooting

• No LEDs on keypad when pressing any number:

•Verify DC cable is connected from cart battery harness to controller.

• Verify keypad cable is connected to controller.

• Verify circuit breakers are not tripped and 5A fuse is installed in battery harness.

• Drawer selection not available when User PIN is entered:

• Check to make sure drawer cable is installed securely.

• Remove power from drawer system for 10 seconds and re-apply.

• LEDs  ash red/green after User PIN is entered:

• Battery charge is low, check to make sure USB charging cable is plugged into computer and computer is ON.

LEDs/Alarm Meaning:

1,2,3,4, or 5 LED ON green: Corresponding Drawer is open.

1,2,3,4, or 5 LED  ashing red and alarm sounding: Corresponding Drawer is open longer than 20 seconds. Mute alarm by pressing  ashing button corresponding to open drawer.

All available drawer numbers  ashing green: Waiting for drawer selection (see Unlock Drawer).

All LEDs blink red twice: PIN entry rejected/exit current mode after 5 seconds timeout.

All LEDs blink green 3 times: PIN entry accepted.

All LEDs  ashing red: No drawers connected to controller, check cable.

All LEDs  ashing red/green: System power ON or low battery condition.

One or more LEDs  ashing red 8 times: Invalid drawer co guration for corresponding drawer row(s). Verify drawers are installed correctly and remove and reapply power.

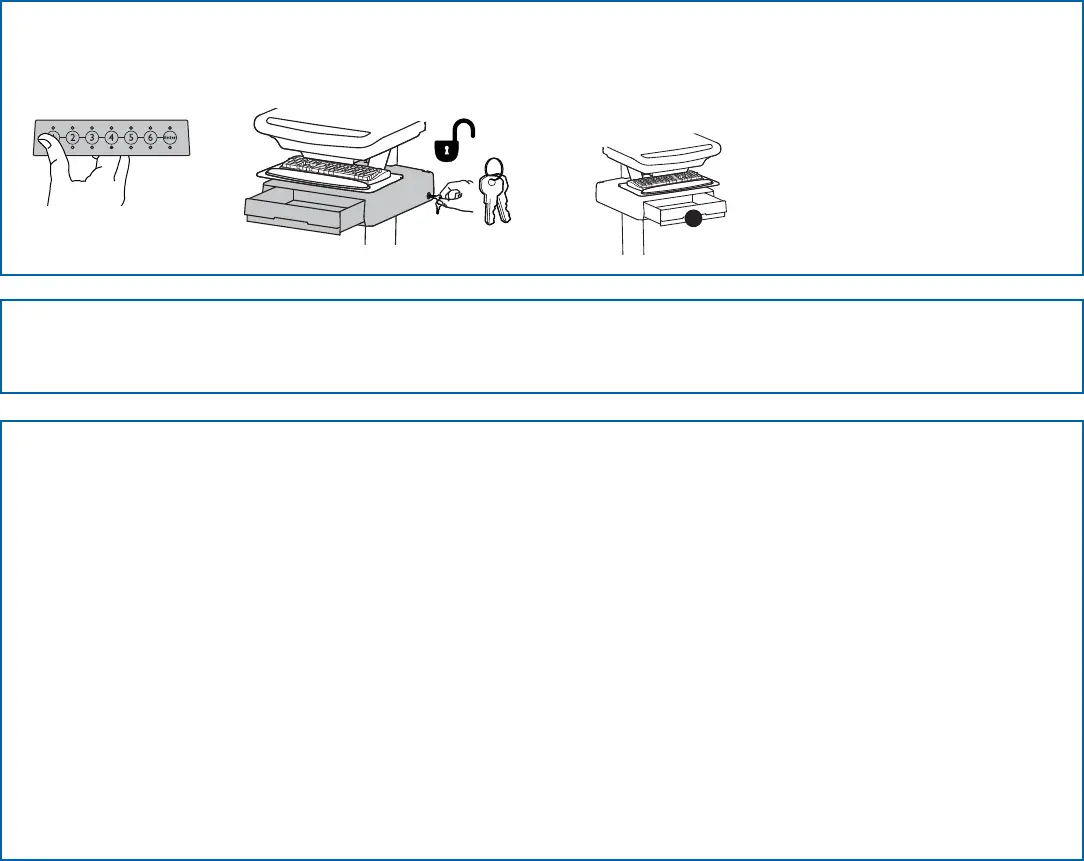

Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked.

• Enter User PIN and press ENTER (only numbers for available drawer rows  ash green), then press desired drawer row number*.

• Key
