Ø 3/8" (10 mm)
3-1/8"
(80 mm)
5x
a
c
d
e
b
9
62”-68”
(158-173 cm)
62”-68”
(158-173 cm)
62”-68”
(158-173 cm)
5x
M6 x 70mm
10mm
ENGLISH
888-61-070-G-03 rev. F • 05/14
WARNING:
Anchors that are not fully set in solid concrete
will not support the applied load resulting in
an unstable, unsafe condition which could lead
to personal injury and/or property damage.
Consult a construction professional if you have
any doubt about what this means in regard to
your particular situation.
WARNING:
Mounting holes must be at least 3-1/8” (80mm)
deep and must be located within solid concrete,
not mortar or covering material. If you drill into
an area of concrete that is not solid, reposition
mounting holes until both anchors can be fully
inserted into solid concrete!

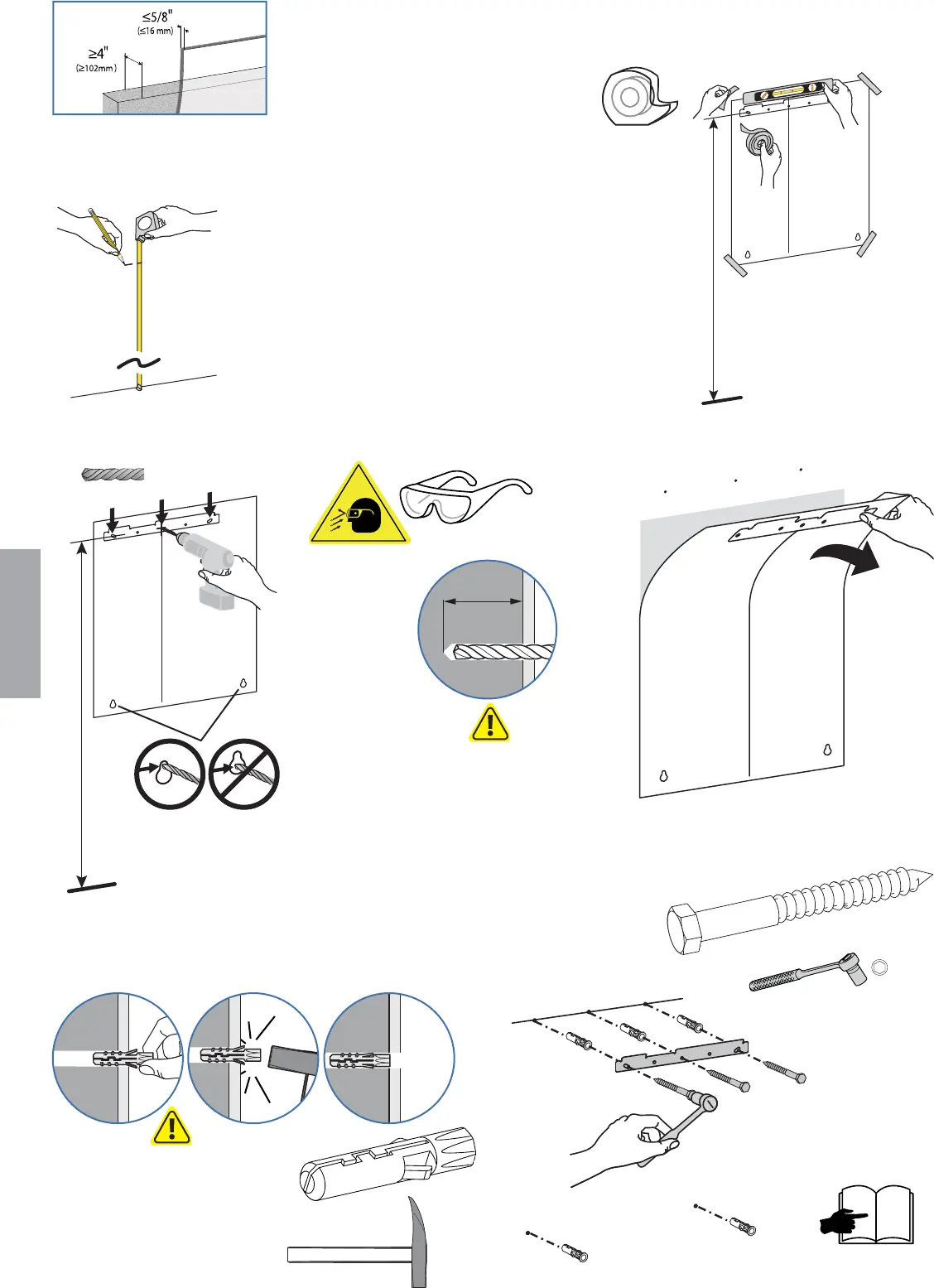

Secure template to the wall
lining up the chosen mounting
holes with the mark 62”-68”
(158-173 cm) from oor.
Put a mark on the wall 62”-68”
(158-173 cm) from oor.
Drll the top 3 holes, then the bottom two holes.
Insert anchors into holes, then attach mounting bracket. Verify wall
bracket is level before tightening screws.
CONCRETE
