Nominal: °4˜ (102mm)
Actual: °3 ½˜ (89mm)
Nominal: °2˜ (51mm)
Actual: °1 ½˜ (38mm)
˛5/8" (16mm)
16˜(406mm)
24˜(610mm)

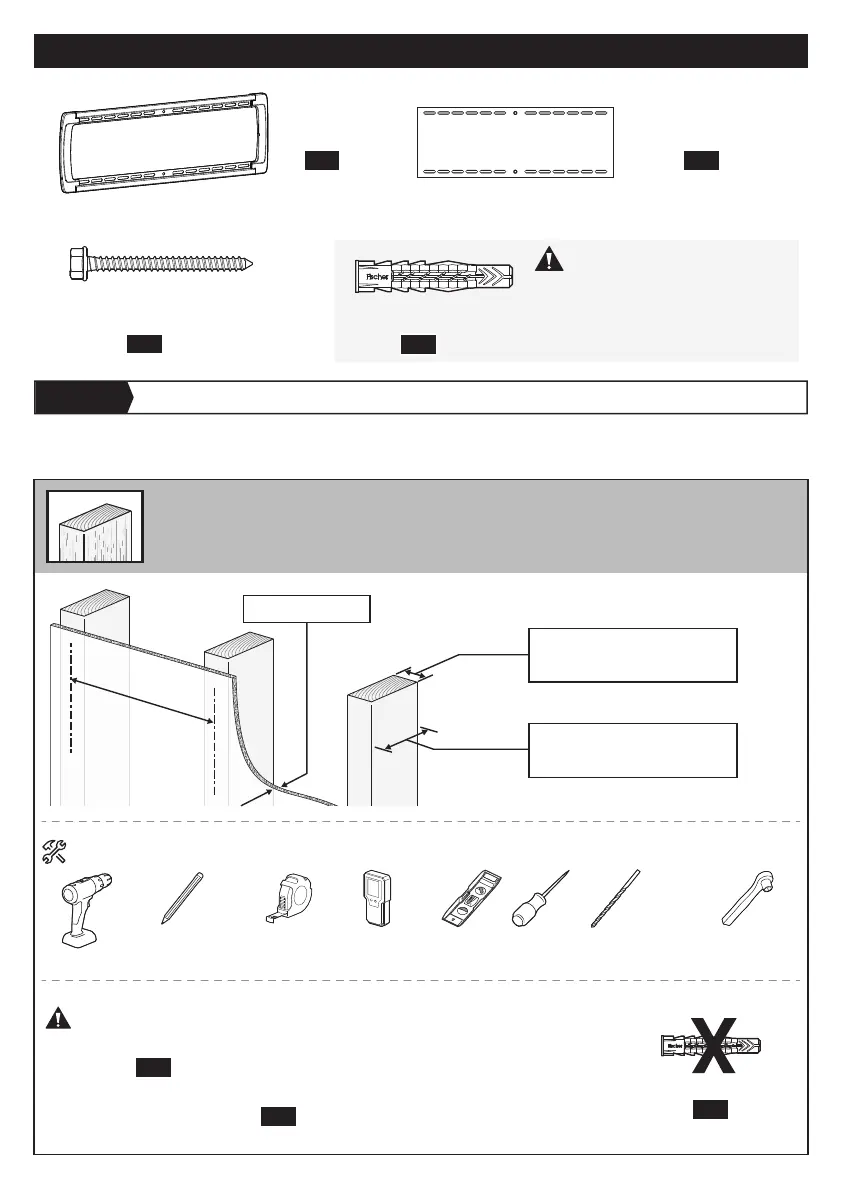

Supplied Parts and Hardware for Step 2
Wall Plate
03 x 1
Wall Plate Template
04 x 1
ST 5/16 x 2 3/4˜
Lag Screw
A1 x 4
This anchor is for concrete and
concrete block walls ONLY. DO
NOT use them in drywall or
wood studs.
CAUTION!
Wall Anchor
A2 x 4
For mounting on wood stud walls, go to Option A on page 08 to 09.
For mounting on concrete and concrete block walls, go to Option B on page 10 to 11.
Tools Needed (Not Included)
7/32˜ (5.5mm)
Wood Drill BitStud Finder Awl
Electric Drill Pencil Tape Measure
1/2˜ (13mm)
Socket Wrench
Option A
For Wood Stud Installation
STEP 2 Mount the Wall Plate on the Wall
Wall Anchor
A2
• Avoid the risk of personal injury or property damage! Tighten the
lag screws only until they are pulled firmly against the wall plate
(DO NOT overtighten). Do not use a drill; only use a socket wrench.
• Do not use wall anchors for this mounting option.
WARNING:
A1
A2
Level
