2
Important
Safety
Information
For Wood Stud Walls
7/32″ (5.5mm)
Wood Drill Bit
Stud Finder Awl
3/8″ (10mm)
Concrete Drill Bit
Hammer
For Concrete and Concrete Block Walls
Electric
Drill
Pencil
Phillips
Screwdriver
Tape
Measure
1/2″ (13mm)
Socket Wrench

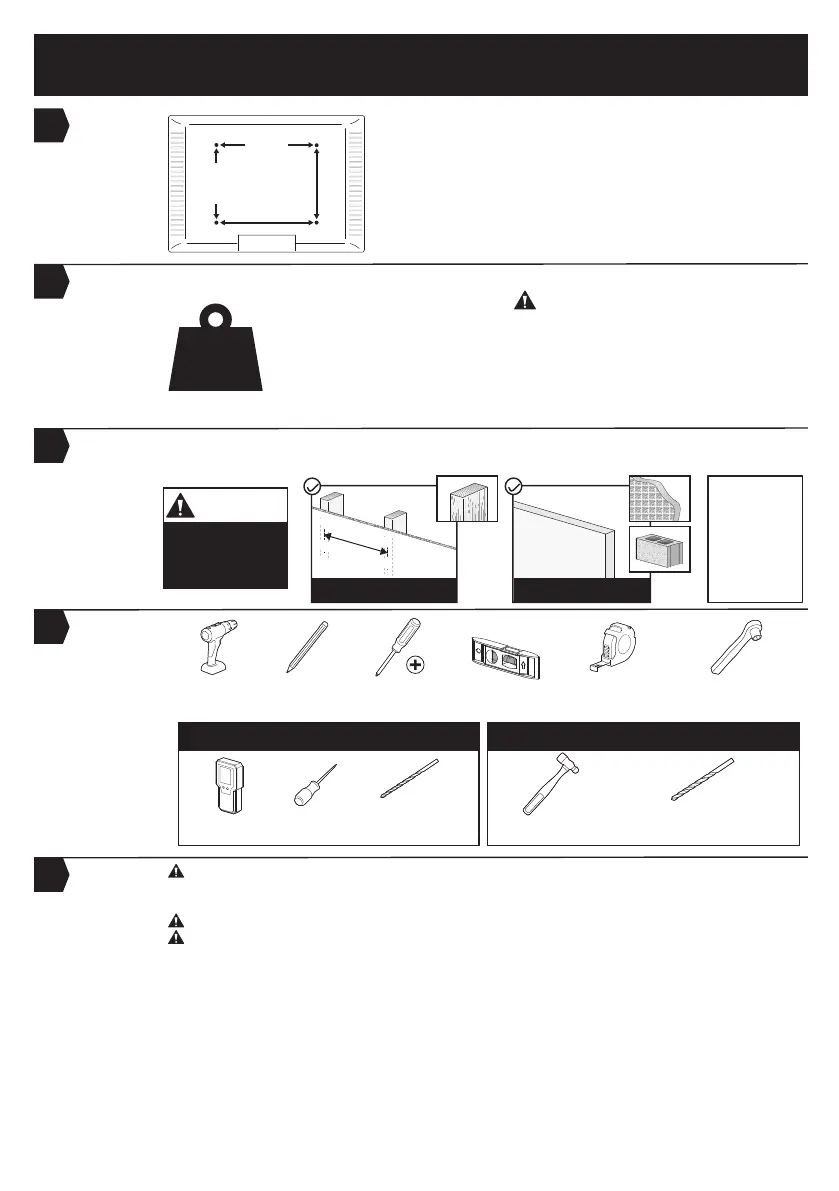

BEFORE GETTING STARTED, LET'S MAKE SURE THIS MOUNT
IS COMPATIBLE
Check VESA
Pattern
Compatibility
Check Max
Load
Verify
Wall Type
Tools Needed
(not included)
Minimum: 100 x 100mm (3.9 x 3.9″)
Maximum: 800 x 600mm (31.5 x 23.6″)
If this mount is not compatible,
please contact product support.
1
3
4
5
WARNING
DO NOT install
on drywall
alone.
Max:
23.6″
600mm
Max:
31.5″
800mm
12 13
Perfect
Concrete and
Concrete Block Walls
Wood Studs
(with Drywall)
16″ (406mm)
24″ (610mm)
16″ (406mm)
24″ (610mm)
Perfect
DANGER: Please carefully read all instructions before attempting installation. If you DO NOT
understand the instructions or have any questions or concerns, please call technical support or
email customer service.
CAUTION: Avoid the risk of personal injury and property damage!
WARNING: All fasteners must be firmly tightened!
• This mount can only be installed on wood studs, concrete and concrete block walls. DO NOT
install on drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• This product contains small parts that may pose a choking hazard.
• DO NOT use this product for any purpose that is NOT explicitly specified in this manual. DO
NOT exceed the maximum weight capacity. We are not liable for damage or injury caused by
incorrect assembly, improper mounting, or inappropriate use.
• Use this mounting system only for its intended use as described in these instructions. DO NOT
use attachments not recommended by the manufacturer.
• DO NOT use outdoors.
• Route cords and cables properly to avoid mechanical damage.
SAVE THESE INSTRUCTIONS
?
Unsure?
Contact us.
14
Level
15
DO NOT exceed the Max Load. Use with
products heavier than the Max Load may
result in failure of the mount and its
accessories, causing possible damage
and/or injury.
WARNING
If your TV weighs more,
this mount is NOT compatible.
16"-16" Wood Stud,
Concrete and Concrete
Block Walls:
225 lbs (102.3kg)
16" or 24" Wood Stud:
110 lbs (50kg)
Max
Load
