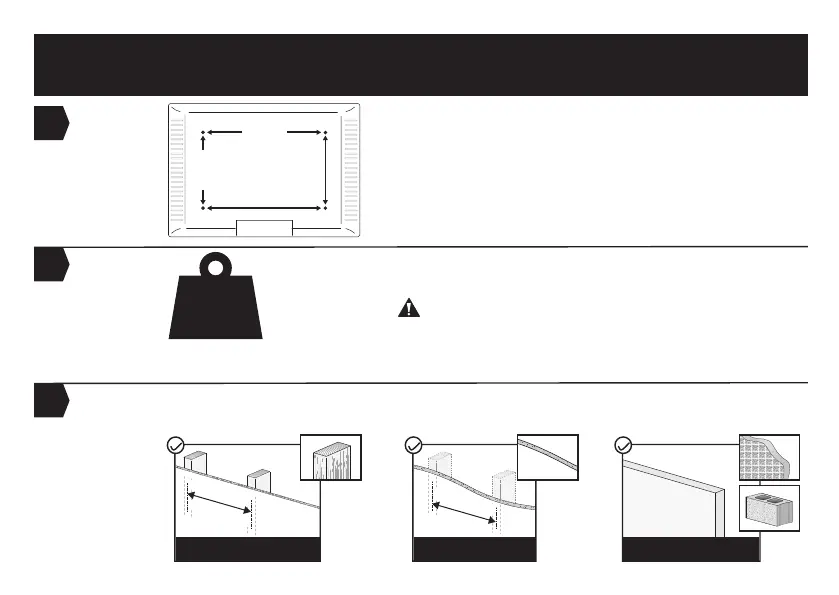

BEFORE GETTING STARTED, LET'S MAKE SURE THIS MOUNT
IS COMPATIBLE
Check VESA
Pattern
Compatibility
Check Max
Load
Verify
Wall Type
DO NOT exceed the Max Load. Use with products heavier
than the Max Load may result in failure of the mount and
its accessories, causing possible damage and/or injury.
WARNING
If your TV weighs more,
this mount is NOT compatible.
If this mount is not compatible, please contact product support.
1
3
Wood Studs / Concrete / Concrete Block Walls:
135 lbs (61kg)
Drywall:
100 lbs (45kg)
Max
Load
Perfect
Concrete and
Concrete Block Walls
Wood Studs
(with Drywall)
Perfect
16″ (406mm)
24″ (610mm)
16″ (406mm)
24″ (610mm)
Maximum/Minimum:
600 x 400mm (23.6 x 15.7″)
100 x 100mm (3.9 x 3.9″)
Compatible VESA Patterns:
100 x 100mm
200 x 100mm
200 x 200mm
200 x 300mm
200 x 400mm
300 x 200mm
300 x 300mm
400 x 200mm
Max:
15.7″
400mm
Max:
23.6″
600mm
Perfect
Drywall
24″ (610mm)24″ (610mm)
400 x 300mm
400 x 400mm
500 x 400mm
600 x 400mm
