NOTE: The AES signal port and RS485 port share the power of 5VDC/Max.200mA. The MT11
power consumption is 13mA when it is ON, and 4mA when it’s off.
3) AES port working principle
The AES signal turns on after the BATT1 voltage reaches the boost charging voltage or
equalize charging voltage for 5 mins.
The controller will check if the BATT1 is in a state of charging (the boost, equalize or float
stage) every 5 mins (This value is the judgement delay time for turning off the AES signal
which can be set via PC software, default as 5 mins, ranging form 0 to 999 mins) , the AES
signal control will be turned off if it meets the conditions for 5 times.

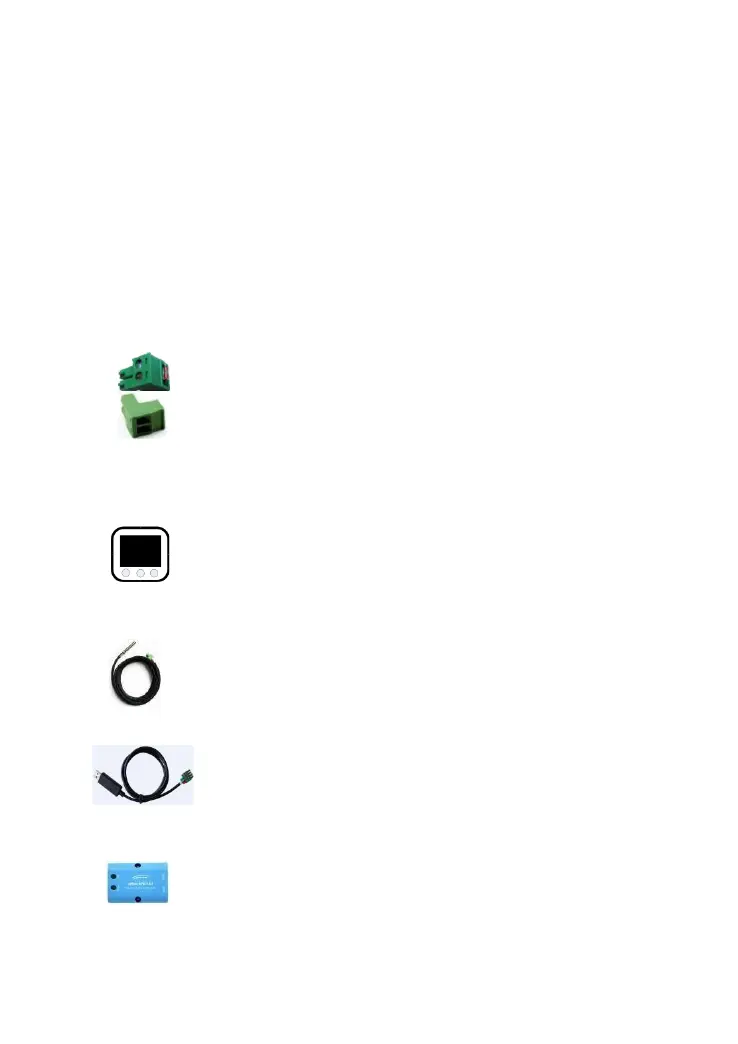

1.6 Accessories
Accessories(included)：
Local Temperature Sensor (Model:RT-MF58R47K3.81A)
AES signal terminal(Model:3.81-2P)
The 2P cable is recommended for connecting the AES signal port of the car refrigerator.
Accessories(optional)：
1) Remote Meter (Model: MT11, Art-Nr. 2000011)
MT11 can display various operating data and fault information of the system.
The information can be displayed on a backlit LCD screen, the buttons are easy-
to-operate, and the numeric display is readable. Standard version is for surface
mounting, and optional version is for wall mounting.(Standard version includes
the communication cable)
2) Remote temperature sensor (Model:RTS300R47K3.81A, Art-Nr. 2000300)
Acquisition of battery temperature for undertaking temperature
compensation of control parameters, the standard length of the cable is 3m
(Length can be customized).The RTS300R47K3.81A connects to the port(❹)
on the controller.
3) USB to RS485 converter cable (Model:CC-USB-RS485-150U-3.81, Art-Nr. 2000485)
It used to monitor each controller on the network via PC software.
The length of cable is 1.5m. One end connects the ❽ port of
controller, the other end connects the PC.
4) WIFI Serial Adapter (Model:eBox-WIFI-01, Art-Nr. 2000010)
After the controller is connected with the eBox-WIFI-01 through the optional
communication cable of 1.5m(model:CC-RJ45-3.81-150U), the operating
status and related parameters of the controller can be monitored by the
mobile APP through WIFI signals.
