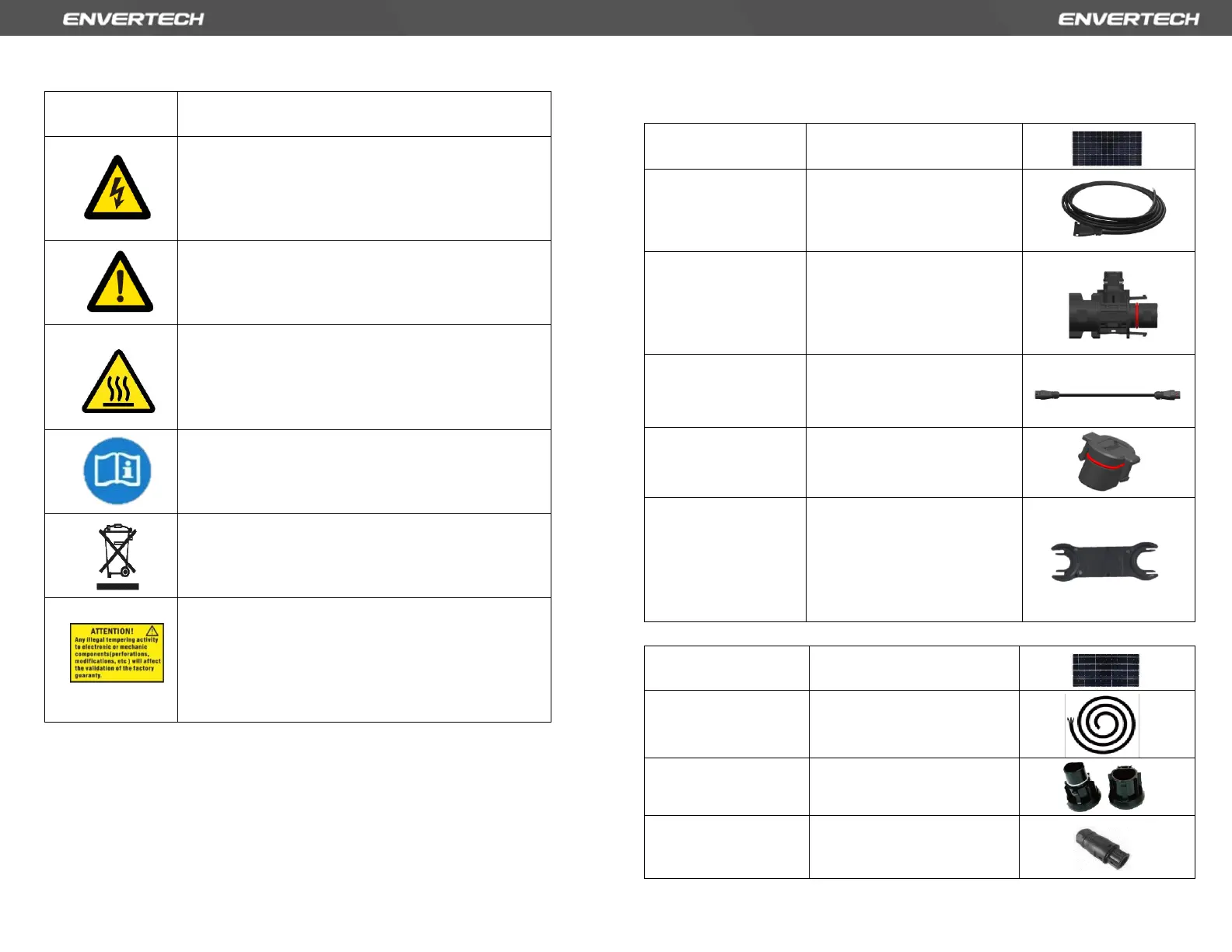

4.3 Symbols on Inverter
4.4 Accessories
For microinverter with BC05 connector
PV Module
Module
AC Extension
Cable
Connect multiple
microinverters in the
system.
T-Connector
For connecting the
microinverter's AC
connector to the trunk
connector.
Trunk Cable with
Trunk Connector
Connect T-connectors
End Cap
Male End Cap
Microinverter
Disconnector
For disconnecting the
microinverter AC
connector, trunk male and
female connectors from
the T-connector.
For microinverter with BC01 connector
Symbol
Description
Dangerous electrical voltage
This device is directly connected to the public grid, thus
all work related to the inverter shall only be carried out
by a qualified person.
NOTICE, danger!
This device is directly connected to electricity
generators and the public grid.
Danger of hot surface
The components inside the inverter will release a lot of
heat during operation. DO NOT touch aluminum casing
during operating
An error has occurred
Please go to Chapter 7 “Trouble Shooting” to repair the
error.
This device SHALL NOT be disposed of in residential
waste. Please go to Chapter 9 “Recycling and Disposal”
for proper treatments.
No unauthorized perforations or modifications
Any unauthorized perforations or modifications are
strictly forbidden. If any defect or damage
(device/person) is occurred, Envertech shall not take
any responsibility for it.
PV Module
Module
AC Extension Cable
To connect the AC side to
the grid.
AC End Cap
To seal the end of unused
AC cable.
AC Connector
Connect the
microinverter's AC side
to the extension cable.
