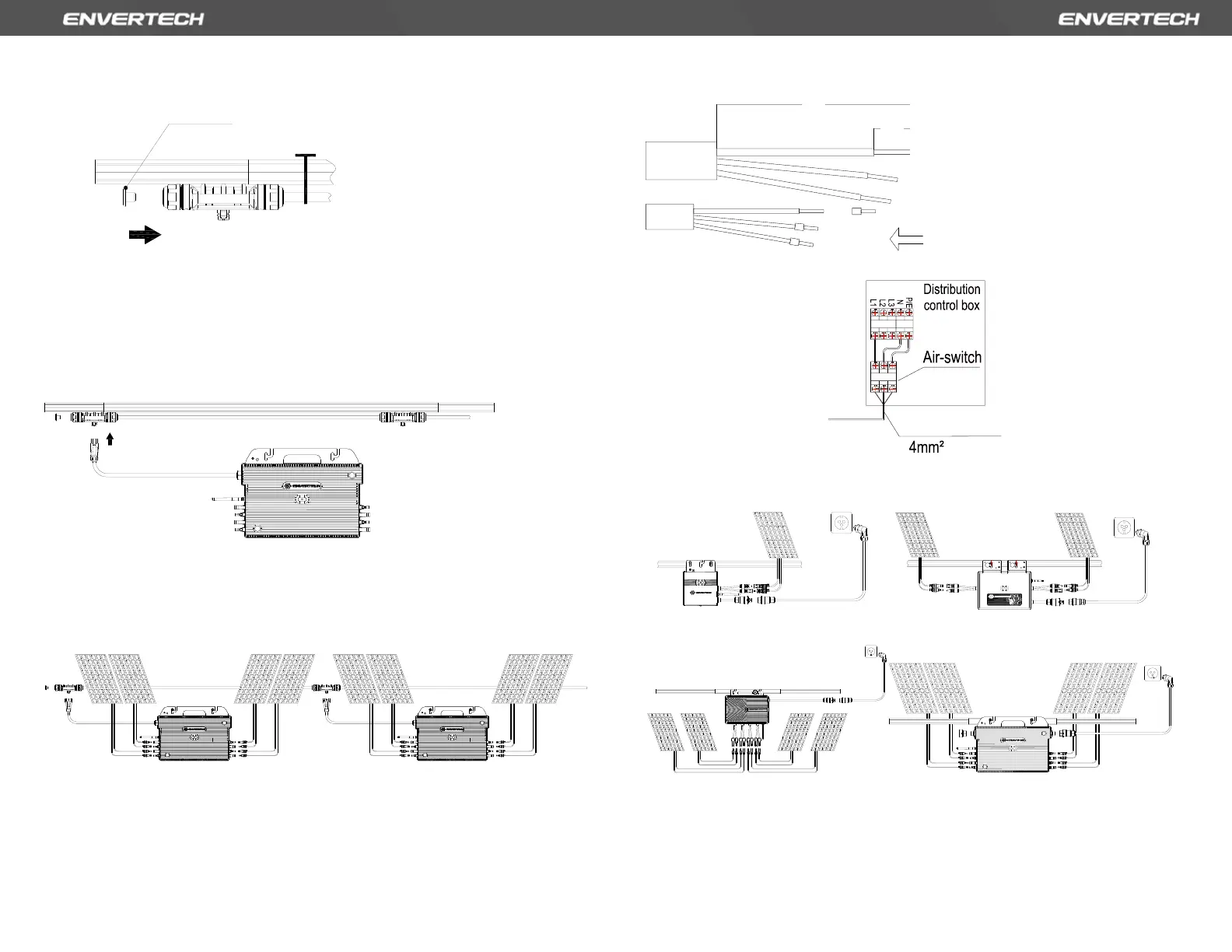

Insert the end cap directly into the unused end connector and make sure it
is inserted in place. (For EVT2500)
Step 6. Connect to the grid
(For EVT2500/EVT2000SE)
a. Connect one microinverter in the system
1) Connect the AC connector of the micro-inverter to the female connector
of the AC extension cable plug, then insert the plug into the socket.
b. Connect multiple microinverters in the system.
Option a. Connect to air switch (Please refer to Chapter 8 for installation
system diagram)
a. Remove the skin of the two ends of the extension cable by y=40mm and
remove the skin of internal wires by x=14mm. Set the metal terminals
onto the open parts and clamp them to tighten the connection;
b. Connect the other side of the extension cable to the air switch.
Option b. Put the open parts of the extension cable into the plug and use the
plug to connect to the socket (For B version microinverter)
Step 7. Connect PV modules to microinverters
Mount the PV modules on top of the microinverters; Connect each PV
module with the DC input cables of the microinverter.
Note: Please position the microinverter as close as possible to the router.
Y=40mmR
Y=14mmR
Extension cable
1
2
www.envertec.com
Envertech ( S hangha i)Corporation LTD.
Model: EVT800PV Microinverter
Operating Range(V dc ):
16V~60V
MPPTV ol tageRange (V dc):
22V~50V
Max.DC Input(Vdc) :
60V
Max. Inpu t C on tinuousCurren t(A):
14Ax2
Max. Inpu t S ho r t-C irc ui t Current(A):
25A
Ingress Pr o te cti on (IP):
IP67
Power( M ax. Continuous) (W):
800W
Tempera ture (¡æ):
-40¡æ to+65 ¡ æ
Normal V ol tage(Vac):
220/230V
Current (Max.Cont inuou s ) (A) :
3.63A
Normal F r eque ncy(Hz):
50Hz/60H z
Power Fa ct or R ange :
+/-0.90
Overvoltage Category: OVC III (A CMain)
OVC II ( PV )
Protectiv e C lass : ClassI
UserIdentificationNumber
End cap
