and the PV Module will not be done while the microinverter is at working status,
please strictly follow the steps below.
1. Turn off the AC branch circuit breaker.
2. Disconnect the microinverters in the following procedure.
Pull the AC connectors of both sides of the microinverters in the opposite
direction with appropriate force.
3. Cover the PV module with an opaque, and then disconnect the PV module
DC connectors from the microinverter.
4. Loosen the grounding screw and remove the grounding wire.
5. Take off the microinverter from the PV frame.

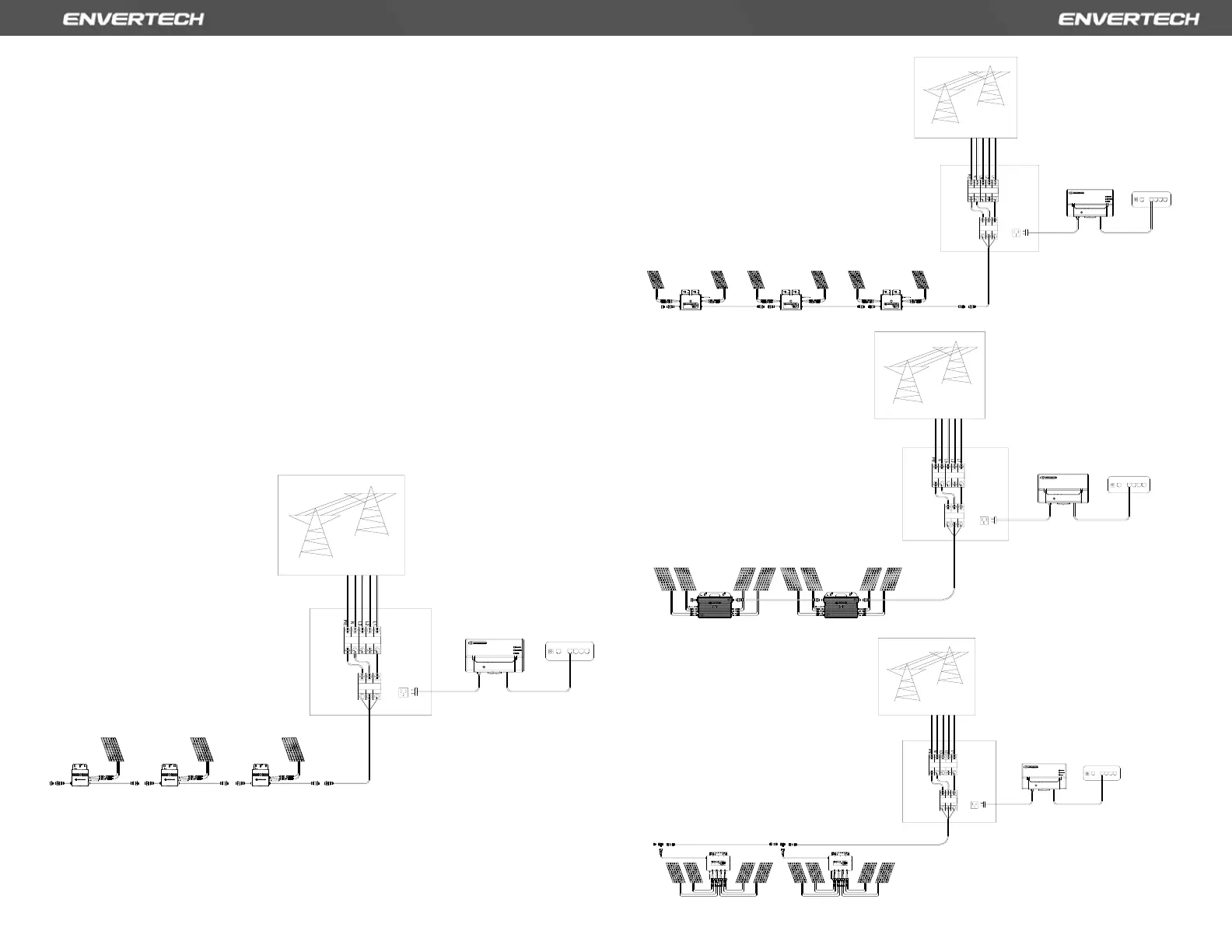

8. System Diagram
1. Single phase
Model: EVT800PV Microinverter
Envertech (Shanghai) Corporation LTD.
User Identification Number
1
2
Operating Range (Vdc):
16V~60V
MPPT Voltage Range (Vdc):
22V~50V
Max. DC Input (Vdc):
60V
Max. Input Continuous Current (A):
14Ax2
Max. Input Short-Circuit Current (A):
25A
Ingress Protection (IP):
IP67
Power (Max. Continuous) (W):
800W
Temperature (
℃
):
-40℃ to +65℃
Normal Voltage (Vac):
220/230V
Current (Max. Continuous) (A):
3.63A
Normal Frequency (Hz):
50Hz/60Hz
Power Factor Range:
+/-0.90
Overvoltage Category: OVC III (AC Main)
OVC II ( PV)
Protective Class: Class I
www.envertec.com
Model: EVT800PV Microinverter
Envertech (Shanghai) Corporation LTD.
User Identification Number
1
2
Operating Range (Vdc):
16V~60V
MPPT Voltage Range (Vdc):
22V~50V
Max. DC Input (Vdc):
60V
Max. Input Continuous Current (A):
14Ax2
Max. Input Short-Circuit Current (A):
25A
Ingress Protection (IP):
IP67
Power (Max. Continuous) (W):
800W
Temperature (
℃
):
-40℃ to +65℃
Normal Voltage (Vac):
220/230V
Current (Max. Continuous) (A):
3.63A
Normal Frequency (Hz):
50Hz/60Hz
Power Factor Range:
+/-0.90
Overvoltage Category: OVC III (AC Main)
OVC II ( PV)
Protective Class: Class I
www.envertec.com
Model: EVT800PV Microinverter
Envertech (Shanghai) Corporation LTD.
User Identification Number
1
2
Operating Range (Vdc):
16V~60V
MPPT Voltage Range (Vdc):
22V~50V
Max. DC Input (Vdc):
60V
Max. Input Continuous Current (A):
14Ax2
Max. Input Short-Circuit Current (A):
25A
Ingress Protection (IP):
IP67
Power (Max. Continuous) (W):
800W
Temperature (
℃
):
-40℃ to +65℃
Normal Voltage (Vac):
220/230V
Current (Max. Continuous) (A):
3.63A
Normal Frequency (Hz):
50Hz/60Hz
Power Factor Range:
+/-0.90
Overvoltage Category: OVC III (AC Main)
OVC II ( PV)
Protective Class: Class I
www.envertec.com
User Identification Number
3 4
21
Temperature(
℃
-40℃ to +65℃
Normal Voltage (Vac):
Current (Max. Continuous) (A):
Normal Frequency (Hz):
Power Factor Range:
Protective Class:
Overvoltage Category:
L/N/PE,220V/230V
9.09A
50Hz/60Hz
+/-0.90
Class I
OVC III(AC Main),OVC II(PV)
Operating Range (Vdc):
MPPT Voltage Range (Vdc):
Max. DC Input (Vdc):
Max. Input Continuous Current (A):
Max. Input Short-Circuit Current (A):
Ingress Protection (IP):
Power (Max. Continuous) (W):
16V~60V
22V~50V
60V
20Ax4
25Ax4
IP67
2000W
Model: EVT2000SEPV Microinverter
User Identification Number
3 4
21
Temperature(
℃
-40℃ to +65℃
Normal Voltage (Vac):
Current (Max. Continuous) (A):
Normal Frequency (Hz):
Power Factor Range:
Protective Class:
Overvoltage Category:
L/N/PE,220V/230V
9.09A
50Hz/60Hz
+/-0.90
Class I
OVC III(AC Main),OVC II(PV)
Operating Range (Vdc):
MPPT Voltage Range (Vdc):
Max. DC Input (Vdc):
Max. Input Continuous Current (A):
Max. Input Short-Circuit Current (A):
Ingress Protection (IP):
Power (Max. Continuous) (W):
16V~60V
22V~50V
60V
20Ax4
25Ax4
IP67
2000W
Model: EVT2000SEPV Microinverter
