triggers.
The maximum resistance of a cable that can be used to connect to a Digital Input to the S-PLAY
LITE’s GND is 20 Ohms.
ENTTEC recommends a total maximum wire length of 100m. (50m total distance from the S-PLAY
LITE in a loop).
The longer the cable, the higher its capacitance and likelihood of interference from EMF (Electro
Magnetic Interference).
To ensure a reliable trigger when creating a system, contact should be made for 3 seconds when
triggering a digital input.
Note: Always run digital input cabling away from main power or high sources of EMI (i.e. air conditioning
units) to reduce interference.
If you require a remote input trigger further away from the S-PLAY LITE than 50m, ENTTEC recommend
the use of a 3rd party GPIO interface that can communicate with the S-PLAY LITE’s other triggering
methods over a network.

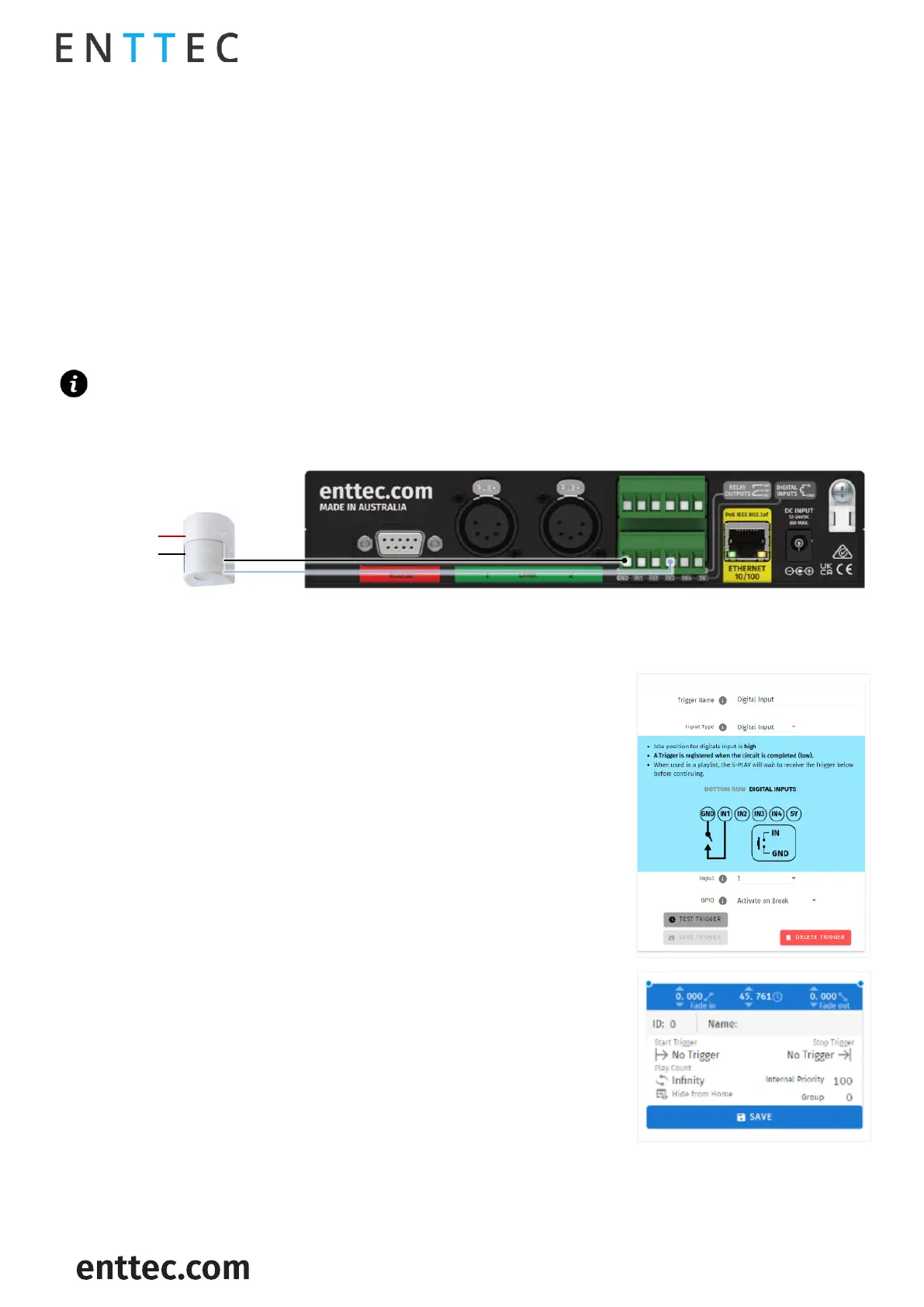

Using Motion Sensors with the S-PLAY LITE
1. Connect the sensor output to Digital Input ports (IN1 to IN4) in S-PLAY LITE.
2. Connect 0V (GND) from sensor to GND of Digital Input connectors in S-PLAY LITE.
3. Go to web interface:
Go to Triggers.
Create a new entry.
Select Digital Input from Type
Change to Port 3 in “Ports” (or to the corresponding port the
OUT cable was connected to).
You can use the Test Trigger option to ensure functionality.
Click on Save Trigger for it to be saved ready for use on the
Playlists page.
4. Navigate to the Playlists Page.
5. The Trigger can be selected as a ‘Start Trigger’ to commence
playback of a certain playlist and/or dragged onto the timeline to
act as a condition that must be met for playback to continue.
CONNECTION
POWER
V+
GND
GND
OUT
