S-PLAY LITE (70094)
Visit the ENTTEC website for the latest version.
..
USER MANUAL
7 |
ID: 5950188
Document Updated: April 2024

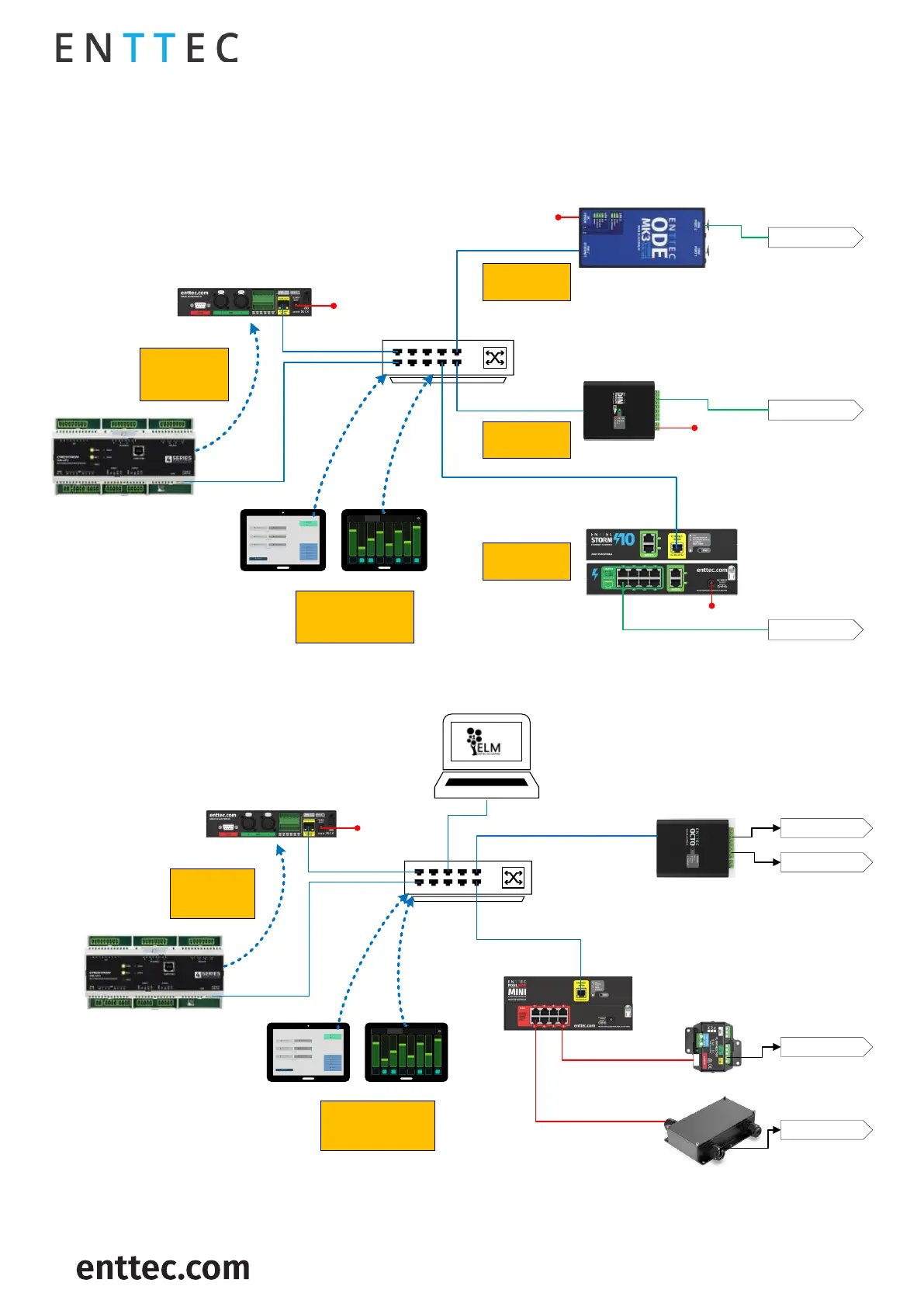

Wiring Diagrams
S-PLAY LITE to distribute DMX Output
Network Switch
DIN Ethergate
SKU 71030
ODE Mk3
SKU 70407
Storm 10
SKU 70057
High-density
Ethernet to DMX
RJ45 connectors
2U Ethernet to DMX
Screw terminal
2U Ethernet to DMX
XLR 5-pin
2 x DMX Universes
2 x DMX Universes
10 x DMX Universes
Automation Controller/BMS
Controller sending
triggers to S-Play
via RS232/UDP/
OSC/HTTP
CAT6
CAT6
CAT6
CAT6
CAT6
DMX
DMX
DMX
Tablet running S-Play built-
in interface or 3
rd
party like
TouchOSC/CTRL for iPad
12-124VDC or
PoE (802 .3af)
12-124VDC or
PoE (802 .3af)
12-124VDC or
PoE (802 .3af)
12-124VDC or
PoE (802 .3af)
S-PLAY LITE Playback to Pixel Systems
Network Switch
Automation Controller/BMS
Controller sending
triggers to S-Play
via RS232/UDP/
OSC/HTTP
CAT6
CAT6
Tablet running S-Play built-
in interface or 3
rd
party like
TouchOSC/CTRL for iPad
12-124VDC or
PoE (802 .3af)
Pixelator Mini
SKU 70067
PLink Injector
5V SKU 73546
12-24V SKU 73544
IP PLink Injector
SKU 73924
Plink Data – Cat6 300m
Plink Data – Cat6 300m 1024ch Pixels
1024ch Pixels
Octo
SKU 71521
2048ch Pixels
2048ch Pixels
PC running ELM
Software
SKU 70581
S-PLAY LITE Application Diagram
