BrightEye 90-FA HD Up/Down/Cross Converter and ARC with Analog Audio and Optical Output

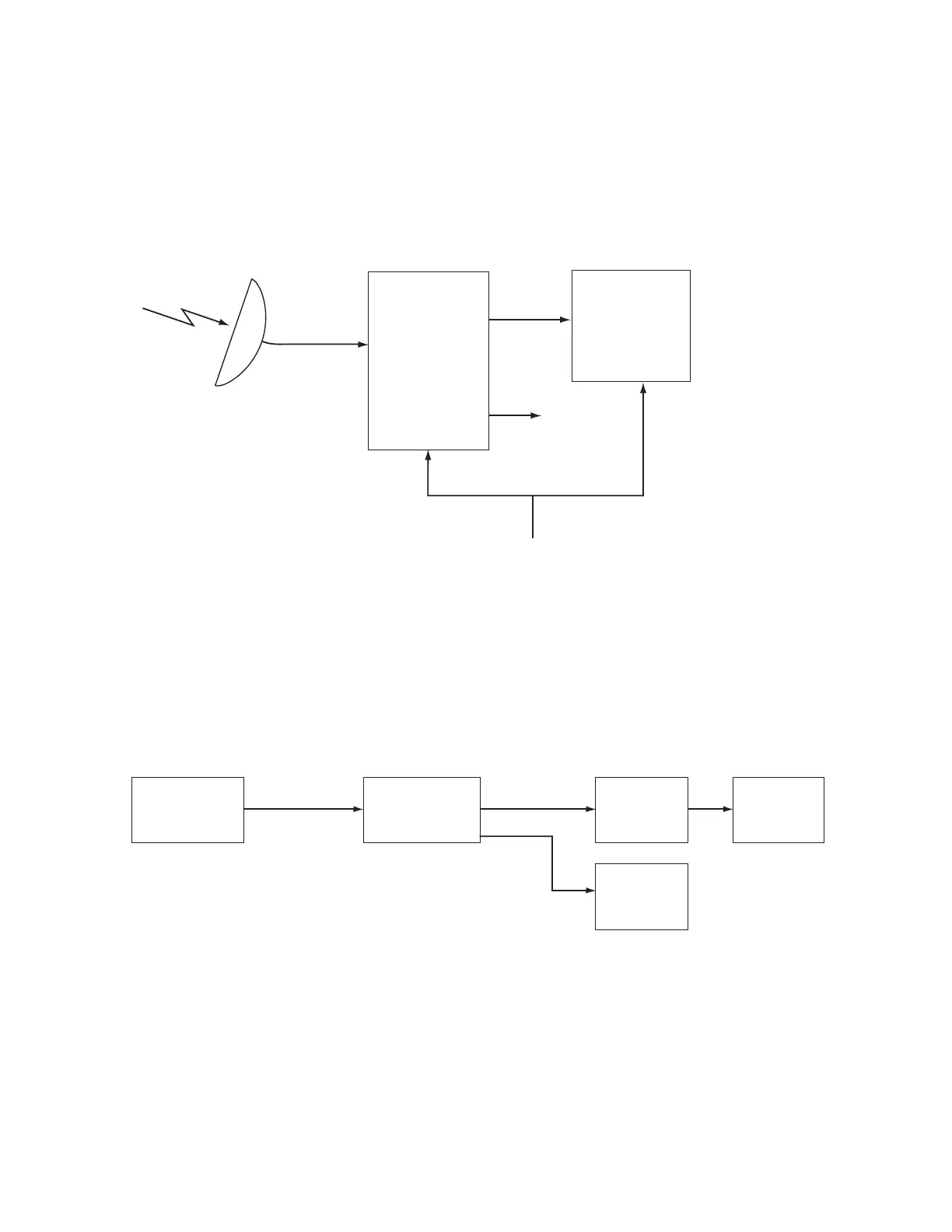

APPLICATIONS
HD Upconversion 1
The BrightEye 90-FA can upconvert SD video from many different source types. As shown
in the example below, the SD ingest signal from a satellite is fed to a BrightEye 90-FA
where it is upconverted to feed an HD Master Control Switcher. The optical output can be
sent to the fiber backhaul.
HD Master
Control
Switcher
Optical Out
to Fiber Backhaul
SD SDI
Signal In
HD SDI
House Reference
BE 90-FA
Upconversion
HD Upconversion 2
Standard definition cameras and other SD gear can be used with an upconverter such as
BrightEye 90-FA. Leverage existing SD equipment by upconverting for HD production. As
shown below, a standard definition camera is fed to a BrightEye 90-FA. The HD output of
the BrightEye is fed to a production switcher and on to a projector. The HDMI out
provides confidence monitoring of the camera.
SD Camera Projector
SD SDI
or Composite
HD
Production
Switcher
LCD
Display
HD SDI
HDMI
BE 90-FA
Upconversion
BrightEye 90-FA - Page 6
