BrightEye 90-FA - Page 3

BrightEye 90-FA is powered by a 12 volt DC universal power supply. This power

supply can accept an input voltage between 100 and 230 volts, at 50 or 60 Hertz.

It uses a standard IEC line cord and can be used anywhere in the world. It is

normal for the converter to be quite warm to the touch when operating.

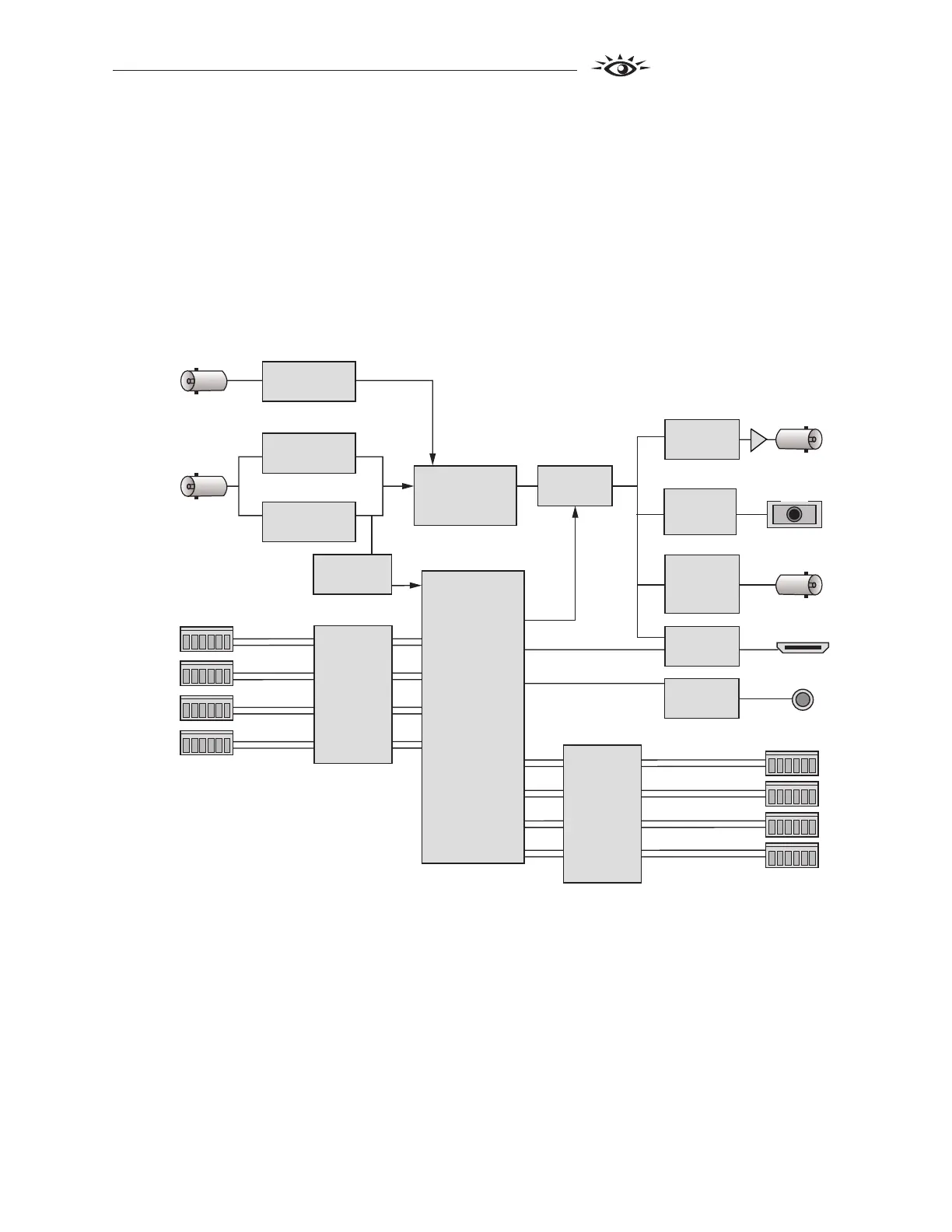

For your reference, see the functional block diagram of the BrightEye 90-FA on

this page and the next page. The diagram appears twice, first in a portrait view,

then larger as a landscape view.

Composite or

Tri-Level Ref In

Genlock

HD SDI/SD SDI/Composite

Video In

Balanced

Analog Audio

Inputs

Analog

Decoder

Auto-Selecting

SDI

Receiver

Audio

Demux

Ch 1/2

Composite

Out

Ch 3/4

Ch 5/6

Ch 7/8

Ch 1/2

Ch 3/4

Ch 5/6

Ch 7/8

Audio

Processing

Composite

Encoder

(SD Only)

HD/SD SDI Out

HDMI Out

Headphone

Jack

Balanced

Audio Outputs

HDMI

Xmtr

Monitor

Amp

Audio I/O selectable as:

Mux 8 = 8 inputs or

Mux 4 = 4 in/4 out or

Demux = 8 outputs

Provides embedded pass through of all 16 audio channels

Up/Down/Cross

Conversion

Audio Mux

SDI Driver

Laser Fiber

Driver

HD/SD SDI

Optical Out

24 bit

Audio

ADC

24 bit

Audio

DAC

BrightEye 90-FA Functional Block Diagram, portrait view
