HD/SD SDI/Cpst In

This BNC input accepts an analog composite video signal, an HD SDI serial

digital video signal, or an SD SDI serial digital video signal with or without

embedded audio. External analog audio can be inserted into the SDI input stream

or replace existing embedded audio.

Ref In

This BNC accepts an analog composite video signal or Tri-Level Sync signal

which is used as the genlock and timing reference for the internal Frame

Synchronizer. Typically the reference signal is Color Black or Color Bars fed from

a master sync generator (such as the BrightEye 55).

Analog Audio Connectors

The four Phoenix connectors are either analog audio inputs or outputs depending

on how the unit is configured (Mux 8, Mux 4, or Demux). Each connector inputs

or outputs 2 channels of audio (1 pair.) When the unit is configured as Mux 8, the

four Phoenix connectors are inputs. When configured as Demux, the four Phoenix

connectors are outputs.When configured as Mux 4, two Phoenix connectors are

inputs and two Phoenix connectors are outputs.

Each Phoenix connector is fitted with a pluggable terminal block that accepts

bare wire leads. Wires can be inserted into the small round holes. Depress the

orange tab to release them.

OPERATION

Control and operation of the BrightEye 90-FA is performed from the front panel

or remotely from a networked PC with the BrightEye PC or BrightEye Mac

Control application.

Front Panel Controls and Indicators

The front panel of the BrightEye 90-FA, shown above, provides status and control

indicators for the unit.

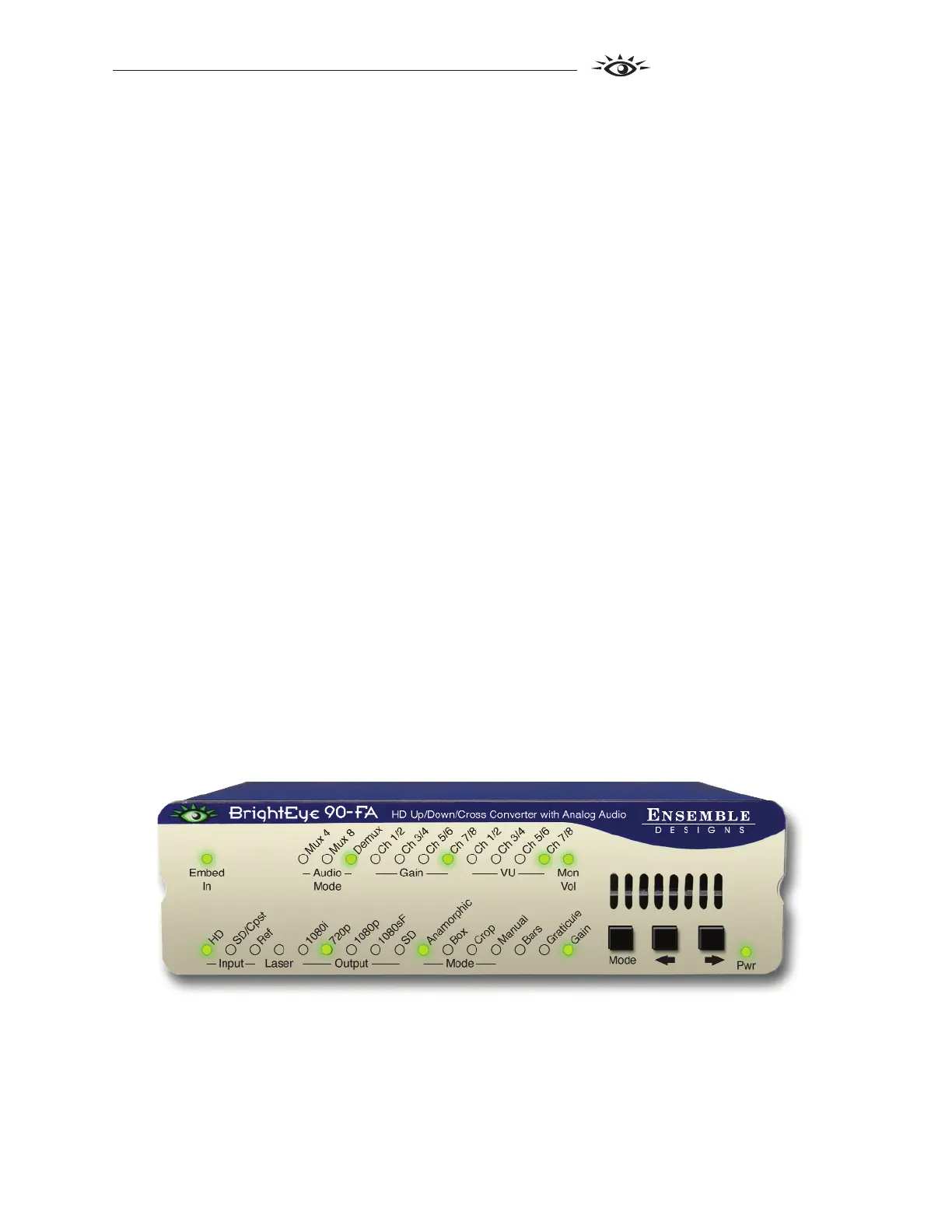

BrightEye 90-FA Front Panel

Some control settings are only available with BrightEye PC or Mac. These parameters

cannot be monitored or controlled from the front panel.

NOTE:
