SD Aspect Ratio Conversion

The BrightEye 90-F can perform standard definition aspect ratio conversion to convert the

aspect ratio of the SD input signal to a different aspect ratio. In the example below, the

input from an SD camera with 16:9 lenses can feed an anamorphic signal to the

BrightEye 90-F where the aspect ratio can be corrected for input to an SD switcher that

requires 16:9 Letterbox.

HD Cross Conversion

The BrightEye 90-F can perform cross conversion between two different types of HD

signals. As shown here, the 1080i input from an HD network feed is sent to the BrightEye

90-F where the format is converted to 720p as required for input to an HD router.

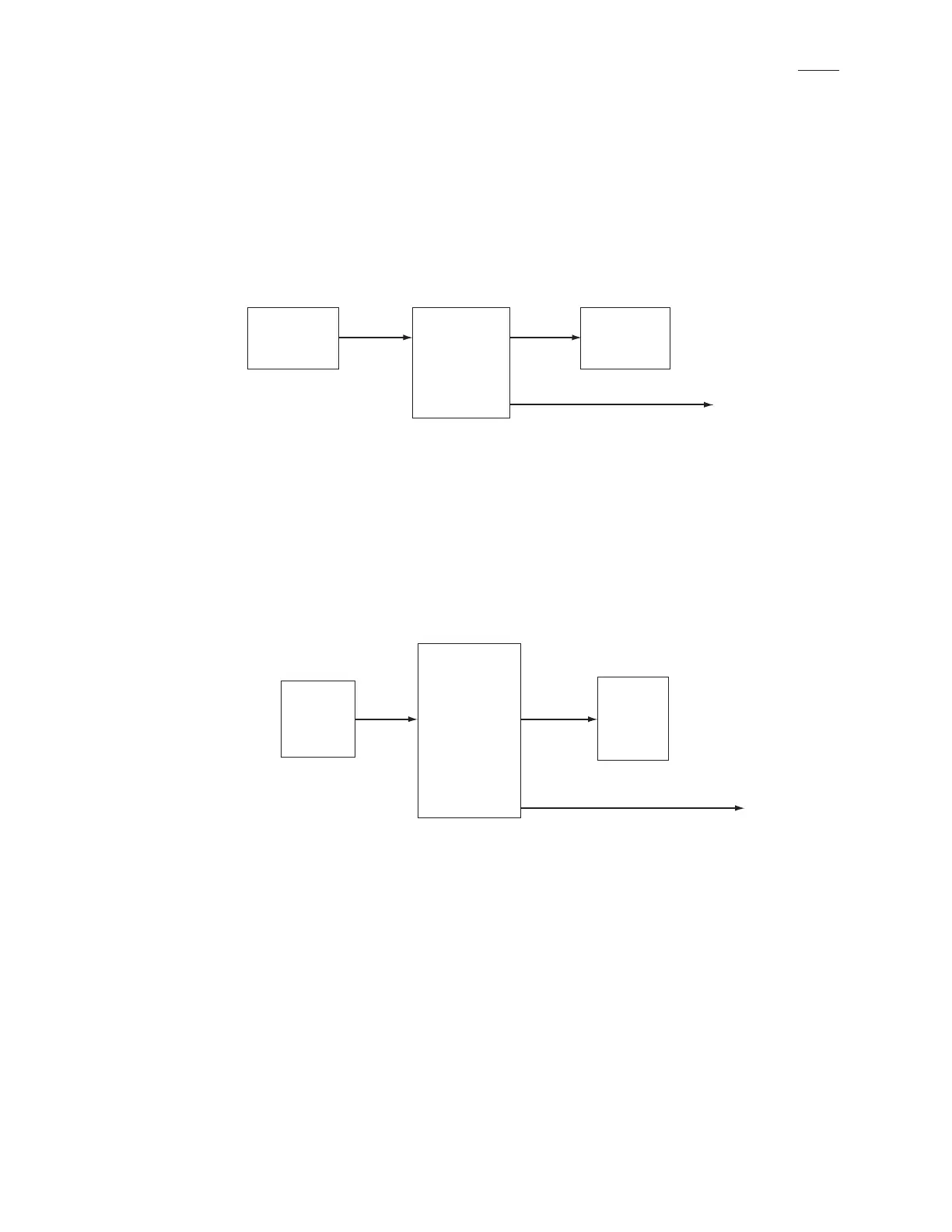

SD Camera

SD SDI

BE 90-F

Aspect

Ratio

Conversion

Production

Switcher

SD SDI

Outbound SD SDI Optical Feed

16:9 Lenses

Letterbox 16:9

BE 90-F

Cross

Conversion

Network

Feed

Router

1080i 720p

Outbound HD 720p Optical Feed
